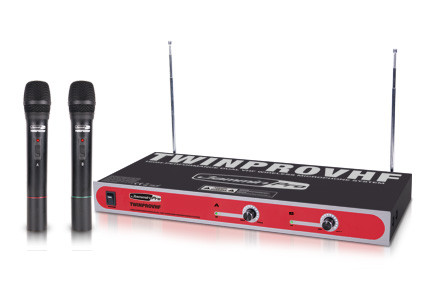

Dual Channel VHF Wireless Microphone System
FEATURES:• VHF wireless microphone
• 50m operating distance
• Pure quartz circuit guarantees stable performance
• Circuit controlled switching noise elimination
• ALC for low distortion, audio companding technology for low noise and wide dynamic range
• Effective feedback control circuitry
• Low power consumption LED status indicator on both transmitters and receiver Separate or mixed output
SPECIFICATIONS:• Squelch Control: Noise-Lock
• Frequency Deviation: +/- 15kHz
• Frequency Response: 60Hz-15kHz
• Frequency Steadiness: +/- 0.005%
• S/N Ratio:>80dB
• Total Harmonic Distortion: <0.5%(1kHz)
• Number of Channels: 2 channels
• Receiving Sensitivity: -80dBm
• Operating Range: 50m outdoors
• Receiver Power Supply: DC 12V/300mA
• Transmitter Power Supply:9V battery
• Transmit Power: <10mW
• Frequency Range: 174MHz-216MHz
• Output Type: Separate or mixed output
• Accessories:
AC Adaptor
9V Batteries
Rack ear x 2
User Manual
