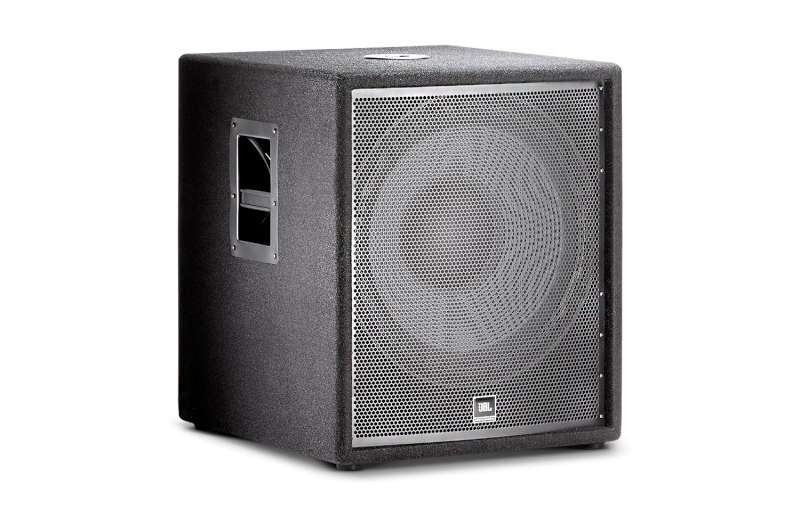

The JRX218S subwoofer is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil.
FEATURES:• 18 in. compact subwoofer.
• 350 W (continuous), 1400 W (peak) power capacity.
• The rugged enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for durability and improved low-frequency performance. The enclosure is covered in black carpet.
• A top mounted, cast aluminum 35 mm pole mount receptacle can receive an optional SS3BK pole to facilitate use of the JRX218S as a base for a midhigh speaker cabinet.
• Non-resonant, all steel handles are used.
• Attractive 18-gauge perforated steel grille protects components from damage.
SPECIFICATIONS:• Power Rating : 350 W / 1400 W
• Frequency Range (-10 dB) : 38 Hz - 300 Hz
• Frequency Response (3 dB) : 55 Hz - 300 Hz
• Sensitivity (@1m) : 96 dB SPL
• Nominal Impedence : 4 ohms
• Recommended Amplifier Power : 350 W to 700 W into 4 ohms
• Recommended Crossover Settings : 30 Hz HPF, 24 dB / octave; 80 - 100 Hz LPF, 24 dB / octave
• Maximum SPL : 127 dB
• Dimensions (H x W x D) : 597 mm x 516 mm x 559 mm (23.5 in x 20.3 in x 22 in)
• Weight : 32.2 kg (71 lb)
• Low Frequency Driver : JBL 2043-G
• Input Connectors : Neutrik Speakon NL-4 (x1); .25 in TS phone jack (x1); parallel
