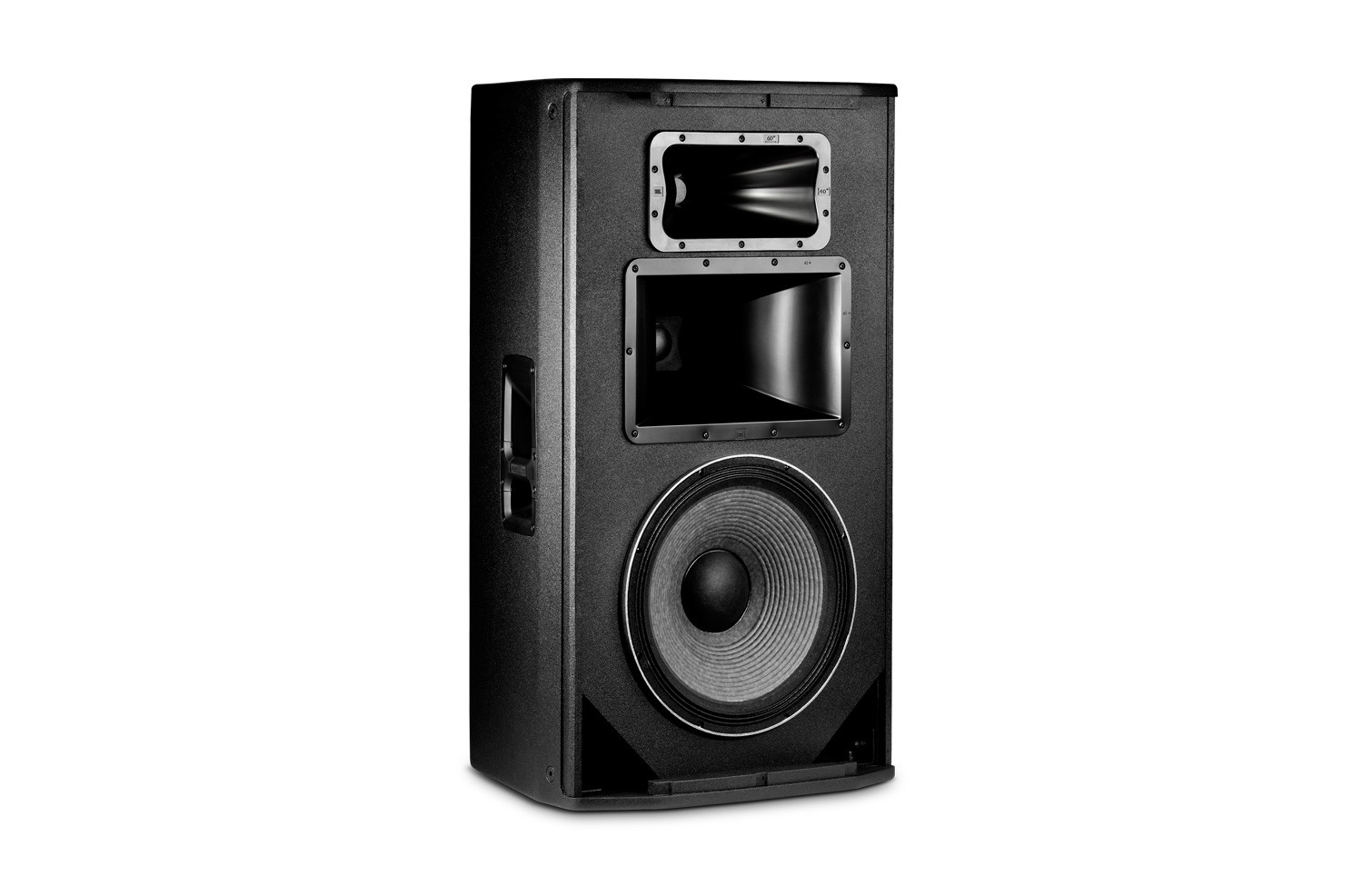

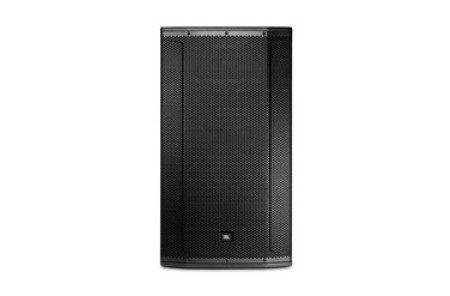

JBL SRX835 15" Three-Way Bass Reflex Passive System

Featuring M10 suspension points, a standard 35mm pole cup and feet for both floor standing and subwoofer standing use, the SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

Features
• Premium JBL Transducers
• Rugged, versatile enclosures
• Tunings available for Crown amps and dbx signal processors
• Fully supported in Audio Architect
• Power Handling: 3200W Peak, 1600W Program, 800W Continuous
• Frequency Range: 32Hz-20kHz
• Frequency Response: 43Hz-20kHz
• Max SPL: 130dB (Peak)
• Coverage Pattern: 60x40
• Amplification options: Passive/Bi-Amp

Purposeful Design
Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

Transducer Technology
JBL's patented Differential Drive Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL's 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

• System Type Passive 15", three-way, bass-reflex
• Maximum SPL Output 124dB (Continuous), 130dB (Peak)
• Frequency Range (-10dB) 32hz - 20khz
• Frequency Response (-3 dB) 43Hz - 20Hz
• Sensitivity 95dB
• System Power Rating 3200W Peak, 1600W Program, 800W Continuous
• Nominal Impedance 8 Ohm

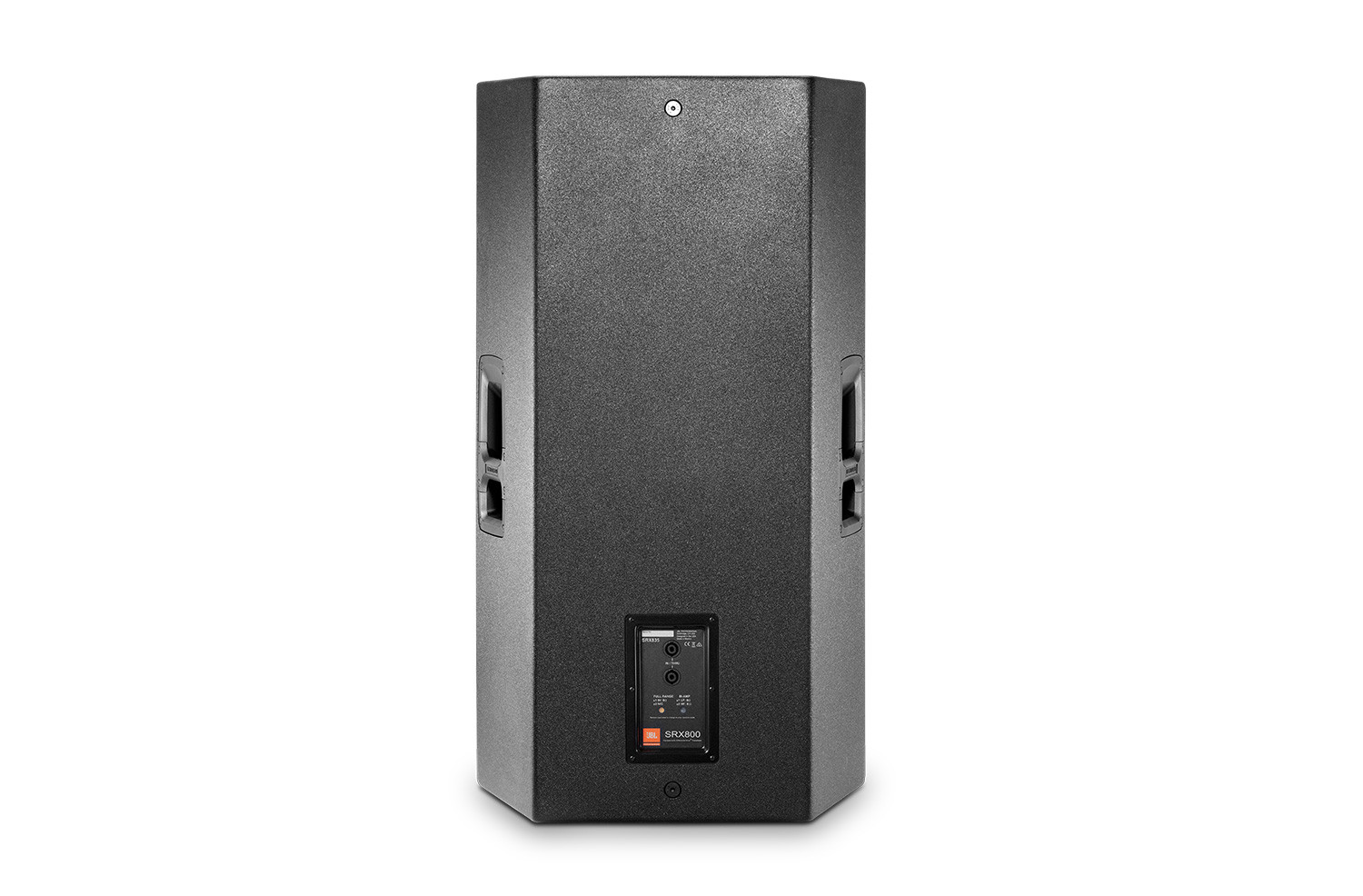

• Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
• Operational Modes Passive/Bi-Amp
• LF Driver 2275F
• MF Driver 2107H
• HF Driver 2432H
• Coverage Pattern 60 x 40
• Crossover Frequency 330hz & 2.4khz
• Enclosure 18mm Duraflex coated plywood
• Suspension/Mounting Single 36mm pole socket, 12 x M10 Suspension points
• Handles 2
• Finish Obsidian Duraflex' finish
• Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
• Dimensions (H x W x D) 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
• Weight 95.0 lbs (43.1kg)
