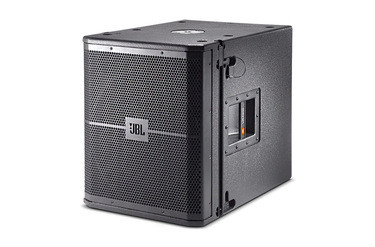

The VRX915S is a compact, high power suspendable subwoofer system containing a 2265G-1 neodymium magnet, patented Differential Drive, 15" woofer in a front-loaded, vented enclosure. Also available in white.
Features• Integral rigging hardware for simple connection of VRX915S line-arrays and optional array frame.
• 15 inch, 2265G-1 Differential Drive woofer for extended low-frequency output.
• Light and compact for versatility and easy handleability.
• 20 mm threaded pole socket for solid, secure satellite speaker mounting.
Specifications• Power Rating: 800 W / 1600 W / 3200 W
• Frequency Range (-10dB): 35 Hz - 250 Hz
• Dimensions (H x W x D): 496 mm x 420 mm x 597 mm (19.5 in x 16.5 in x 23.5 in)
• Frequency Response (3 dB): 40 Hz - 250 Hz
• System Maximum SPL: 126 dB SPL
• System Sensitivity: (1w @ 1m) 91 dB SPL
• LF Driver: 1 x JBL 2265G-1, 250 mm (15 in) Differential Drive woofer
• Nominal Impedance: 4 Ohms
• Active Tunings: Tunings available at www.jblpro.com
• Enclosure: 15 mm - 18 mm, multi ply birch plywood
• Suspension / Mounting: Top mounted M20 threaded socket for optional pole SS4-BK. Integrated flying hardware for use with array frame VRX-SMAF. 8 M10 fittings. Optional M10 eyebolt kit.
• Finish: Black DuraFlex' finish
• Grille: Power coated, black, 16-gauge perforated steel with with acoustically transparent black foam backing.
• Input Connectors: Switchable, +1/-1 or +2/-2
• Net Weight (each): 26.3 kg (58 lb)
• Inputs: XLR with loop through
• Outputs: 1 x XLR
