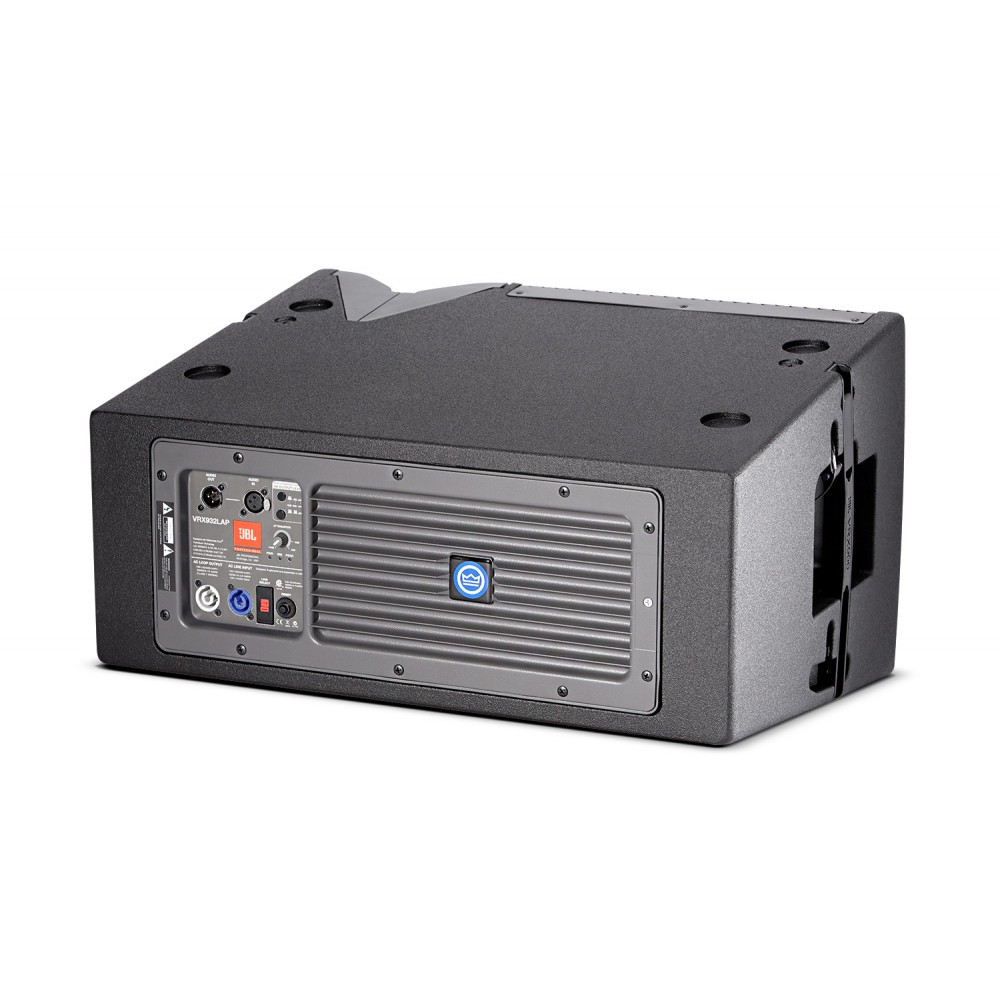

The VRX932LAP is a powered, two-way, full-range line array speaker system. It is intended for small to mid size venues. The JBL DrivePack DPC-2 amplifier module provides the power and the integrated DSP based input module system optimization and EQ.
Key Features:• JBL's exclusive neodymium magnet Differential Drive woofer for highpower capacity and light-weight.• Three neodymium, Annular Ring Diaphragm drivers for high power capacity and high-frequency extension.• Constant Curvature waveguide for unprecedented array coherence.• Dual angle pole socket for aiming flexibility.One or two speakers may be mounted to a 35 mm pole or tripod stand.• Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.• Array Configuration Selector permits "array shading" in passive mode.
Application:• Music playback and sound reinforcement in mid-size venues.• Entertainers, corporate A/V professional and sound system hire companies.VRX932LA 12" Two-Way Line Array SpeakerThe VRX932LA is a light-weight (48 lb / 22 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units. VRX932LA is the ideal choice when line array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line arrays such as JBL's VerTec.The Constant Curvature waveguide mounts three compression drivers on a continuous arc. When additional VRX932LA speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are three drivers in each VRX932LA, the combined power handling and acoustic output of the system is far greater than a single driver could achieve. VRX932LA uses "amplitude shading" to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach a distant balcony while the lower HF section is shaded back to reduce excessive level at the front of the listening area.One or two VRX932LAs may also be used on a tripod or over subwoofers. The integral rigging hardware is used to securely lock the array together while the dual-angle pole socket provides aiming flexibility.As many as six VRX932LA speaker systems may be suspended in a single array for a nominal vertical coverage of up to 90. Suspended applications require the JBL VRX-AF array frame (available separately). For applications in which the array must be aimed sharply down, a second array frame may be installed to the bottom of the array serving as a pull-back. The VRX932LA was designed with SRX700 series compatibility in mind. VRX918S subwoofers are the ideal choice for a ground-stacked or flown VRX932LA system.The VRX932LA is manufactured and sold under U.S. patents 5,748,760; 6,112,847; 6,394,223 and 6,847,726.
Specifications:• Frequency Range (-10 dB)1: 57 Hz - 20 kHz• Frequency Response (3 dB)1: 75 Hz - 20 kHz• Coverage Pattern: 100 x 15 nominal• Crossover Modes: Bi-amp / passive, externally switchable• Crossover Frequency: 1.2 kHz• Power Rating Passive: 800 W / 1600 W / 3200 W (Continuous/Program Peak)2: Bi-amp LF: 800 W / 1600 W / 3200 WBi-amp HF: 75 W / 150 W / 300 W• System Maximum SPL2: 130 dB SPL peak (passive mode)• LF: 130 dB• HF: 139 dB• System Sensitivity (1w @ 1m): 95 dB SPL (passive mode)• LF: 95 dB• HF: 114 dB3• LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive woofer with neodymium-magnet, dual voice-coils and magnetic gap.• HF Driver: 3 x JBL 2407J, 25.4 mm (1.0 in) voice-coil, neodymium compression driverNominal Impedance: Passive: 8 ohmBi-amp LF: 8 ohmsBi-amp HF: 8 ohms• Active Tunings: Tunings available at www.jblpro.com• Enclosure: 18 mm, 11-ply birch plywood.• Suspension / Mounting: Optional VRX-AF line array frame kit; M-10 Eyebolt KitInput Connectors: Neutrik Speakon NL-4 (x2)• Dimensions (H x W x D): 349 mm x 597 mm x 381 mm (13.75 in x 23.5 in x 15.0 in)• Net Weight: 21.8 kg (48 lb)• Optional Accessories: VRX-AF: Suspension array frameSS2-BK: Tripod speaker standSS3-BK: Satellite speaker poleSS4-BK: Adjustable satellite speaker pole to be used with the VRX918S and SRX718S only.M-10 eyebolt kit
