• 4 x 60W RGBW LED
• 4 x 120 x 0.2W RGB SMDs Full Pixel Mapping Rings
• Infinite 360 Tilt
• Beam Angle: 3.5
• Linear CTO: 2500-8000K
• Protocol: DMX512, Art-Net
• CE, ETL

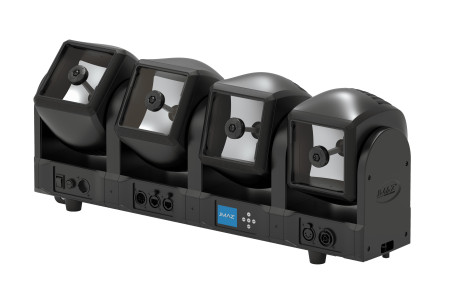

Featuring a cutting-edge mirror-based optical system, the Centipede B4 produces a stunning array of dynamic, sharp, and collimated beam lighting effects that add depth and dimension to any stage. But that's not all thanks to its innovative front neon ring design on each head, this fixture brings an extra touch of brilliance and magic to every performance.
The Centipede B4 sets itself apart with its flexible 360 continuous TILT movement, allowing for precise adjustments and aiming of each lighting head in any direction. Lighting professionals and performers alike will appreciate the ease with which custom lighting setups can be created to suit the unique requirements of any event.
With a range of advanced lighting effects including strobe, color mixing, and chase effects, the Centipede B4 puts creative control at your fingertips. Easily accessed and controlled via DMX function channel, you can effortlessly tailor your lighting to suit the mood and atmosphere of your performance.
Built to withstand the rigors of live events and touring, the Centipede B4 boasts rugged construction and high-quality components, ensuring reliable and consistent performance night after night. Plus, with seamless connectivity between multiple Centipede B4 units, you can create synchronized movements that produce an impressive wave of light, perfectly paralleled to each other thanks to its 3.5 projection angle.
Designed with a proper LED refresh rate for flicker-free operation ideal for TV and film, the Centipede B8 is the perfect choice for large-scale live concerts, TV productions, road shows, clubs/bars, weddings, and more.
The Centipede B4 is a powerhouse lighting fixture that combines advanced features, versatility, and durability to deliver an unforgettable visual experience. Whether you're a lighting professional or a performer, the Centipede B4 is sure to impress and elevate your performances to the next level.
Light Source 4 x 60W RGBW LED Engine
120 x 0.2W RGB SMD LED (30 LEDs per Head)
LED Life Expectancy: 50,000 Hours
Color System RGBW color mixing 16 bit
Linear 16bit color temperature (range) 2500 -8000K
Pixel Mapping capability with individual pixel control on each LED
Dynamic RBG color Macros for Eye-candy (Outer Ring)
Body Die-cast Aluminum and Steel structure with high impact flame retardant PA6 GF 30 (Polyamide 6) with 30% glass fiber
Exterior finish: Black
Electronics Linear Dimmer: 0-100% Smooth Linear LED
Linear CTO: 2500-8000K
Strobe Shutter: 1-25 Hz Variable
Electrical Input Voltage: 100 240V AC, 50/60Hz (Auto ranging with active PFC)
Power Consumption: 320W
Power Linking for connecting fixture in daisy-chain
Up to 6 units @110V with a 20A circuit
Up to 12 units @208V with a 20A circuit
Up to 12 units @230V with a 20A circuit
Fuse: F12A, 250V
Certification / Qualifications
cETLus Listed, CE, FCC
IP Rating: IP 20
Operating Temperature: 40 C ( 104 F)
Minimum Temperature: 10 C ( 14 F)
Maximum Temperature: 60 C ( 140 F)
Optics Beam Angle:3.5
Dynamic Effect Movement: Tilt: 2 modes
360-degree continuous movement
240-degree ( 8 bit and 16 bit)
Selectable preset home position Macros by DMX function channel for fast and easy programming
Selectable fast and precise movement speed by DMX function channel
Scan position memory with automatic tilt position correction
Dimmer: 0 100% smooth linear electronic dimming
Shutter/ Strobe
High speed electronic shutter and strobe
0-25Hz shutter/ strobe effect with variable speed
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed
Sharp Beam Effect
Dynamic Ring Effect with built-in Macros with variable speed
Control Control Protocol: DMX, Art-Net, RDM, sACN
Personalities: 3 modes: 21/39/61 Control Channels
Physical IP Rating: 20
Cooling: Fan
Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
Power Input: Seetronic Powercon IP65 True1
Power Output: Seetronic Powercon IP65 True1
Data Connectors: Seetronic 5pin XLR; Seetronic etherCON
Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
Dimensions: 23.7" x 9.3" x 6.6"
Weight: 22 lbs.
Box Content 1 x Centipede B4
1 x Powercon IP65 TRUE1 Power cable
1 x 5 pin DMX Cable
1 x User Manual
2 x Omega Brackets
1 x Safety Cable
