The MAD PAR PUCK 6PK uplight offers vibrant outdoor lighting with a 6 20W RGBAL+C LED and IP65 weatherproof rating. It features adjustable CCT (2300K8500K), 73 preset color programs, 50 sound-activated modes, and 72 auto/fade effects. With up to 20 hours of battery life (40 hours in saving mode) and a 3-hour recharge time, it's perfect for long events.
The 40/60 beam angle with a diffuser ensures versatile lighting. Wireless DMX and IR remote compatibility make control effortless. Includes IR remote, diffuser filter, A/C charger, and quick start guide for ultimate convenience.

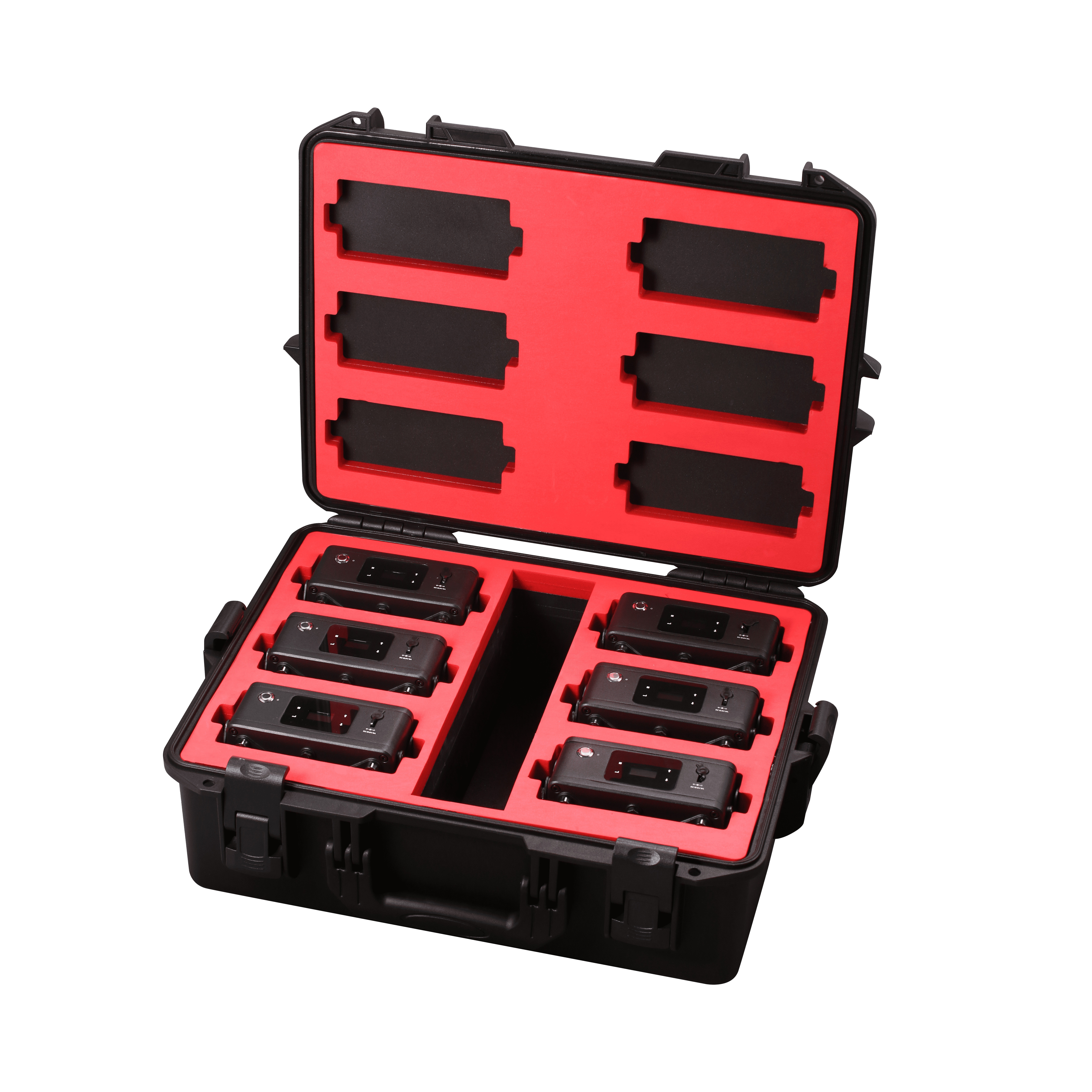

• Injection Molded Case w/6 MAD PAR PUCK Units
• Each Unit: 1 X 20W RGBAL+C LED
• IP65 Outdoor Rated
• Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode
• Charging Time: 4 Hours
• CCT: 2300K 8500K
• 73 Preset Color Programs
• 50 Advanced Sound Active Mode
• 72 Auto / Fade Bulit In Programs
• 40 Beam Angle / 60 Beam Angle w/Diffuser Included
• Protocols: Wireless DMX, IR Remote

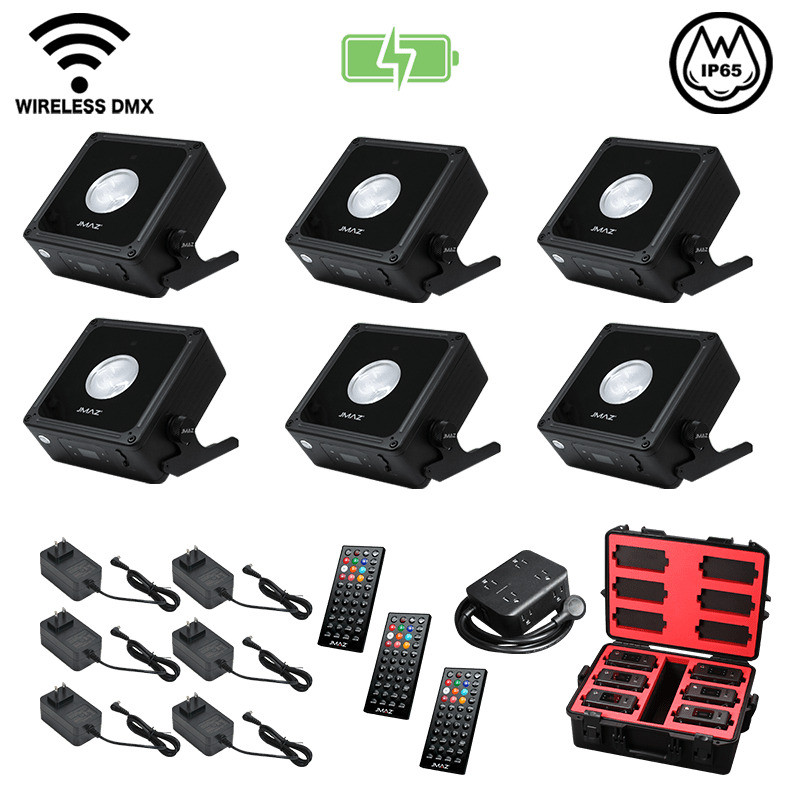

• Includes: Injection Molded Case, 3 x Remotes, 6 x Diffuser Filters, 6 x A/C Charger, 1 x 6 Way Charges, 2 x Manual
Light SourceEach Unit: 1 X 20W RGBAL+C LED
LED Life Expectancy: 50,000 hrs
Color SystemRGBAL+C Color Mixing 8/16 bit
CCT: 2300K to 8500K
OpticsAdvanced Lens Optic: 40 Beam Angle
Diffuser Angle (Included): 60 Beam Angle
Dynamic EffectMax 20 Hour Battery Life / 40 Hour In Battery Saving Mode
Charging Time: 3 Hours
Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
73 Preset Color Programs
50 Advanced Sound Active Mode
72 Auto / Fade Built-In Programs
Stand Alone Color Mixing
Electronic Dimmer
Fading/Jumping Macros Light Change And Jump
Shutter/Strobe: Electronic
Strobe Rate: 0-25 Hz
Preset Color Temperature
4 Favorite Color Customization Triggered via DMX / IR Remote
ControlControl Protocol: Wireless DMX, IR Remote
Personalities: 5/6/8/16 CH DMX Modes
OLED Graphical Display
ElectronicsStrobe Shutter: 1-25Hz
Dimming Modes: 4
BodyDie-Cast Aluminum and Steel Structure
PhysicalAdjustable Tilt Base: 0-40 Degree
Cooling: Fanless
Certification / QualificationsRoHS, CE, FCC
IP Rating: IP 65
Operating Temperature: 10 C (14 F) To 60 C (140 F)
ElectricalInput Voltage: 100 V 240 V AC, 50/60 Hz
Power Consumption: 20W
PWM: 1.5KHz
Battery Voltage: 11.1V
Battery Capacity: 5,200 mAH, 57.72 Wh/hour
Charger: 12.6V, 3A ***UL Listed***
Rechargeable Battery Type: Lithium Ion ***UL Listed***
Box Content1 x IP65 Waterproof Injection Mold Case (Holds 6 Units)
6 x MAD PAR PUCK
6 x 20 Degree Diffuser
6 x A/C Charger
3 x IR Remote
1 x 6in1 Power Charger
1 x User Manual
Item Dimensions & WeightDimensions: 7.2" x 5.9" x 3"
Weight: 3.7 lbs
