49 different DSP driven EQ presets deliver superior control for room/desk correction as well as personal taste. The solid aluminum front-baffle and EVA foam pad is like having a built in stabilizer that improves transient response and imaging.
KRK V4-S4 Features• KRK custom designed Kevlar tweeter
• KRK custom designed Woven Kevlar woofer
• Optimized front ported bass reflex enclosure design
• Bi-amped Class-D amplification
• Acoustic and desk loading condition correction Low
Frequency EQ's
• Mid and High Frequency EQ's
• Precise input level attenuation switch
• Standby, ground lift, input sensitivity, and logo LED selectors
• Optional protective grille included for mobile
broadcast applications
• Friction lock, Neutrik combo (XLR and TRS) connector
• Robust EVA foam pad for non-skid and acoustic isolation
• Universal threaded mounting bracket points
KRK V4-S4 Specifications• Configuration: 2-Way
• System Type: Active 2 Studio Monitor
• Low Frequency Transducer: Woofer, 4-inch cast aluminum frame, Kevlar cone, ferrite magnet
• High Frequency Transducer: Tweeter, 1", Kevlar dome, ferrite magnet
• Frequency Response (+/- 3dB): 58Hz - 19kHz
• Frequency Range: (-10dB): 50 Hz - 24kHz
• Crossover Frequency: 2.1 kHz
• Power: LF (55 Watts), HF (30 Watts), Total: 85 Watts
• Peak SPL: 110 dBSPL
• Connections: Balanced 10k ohm XLR / 1/4" combo input, standard IEC power

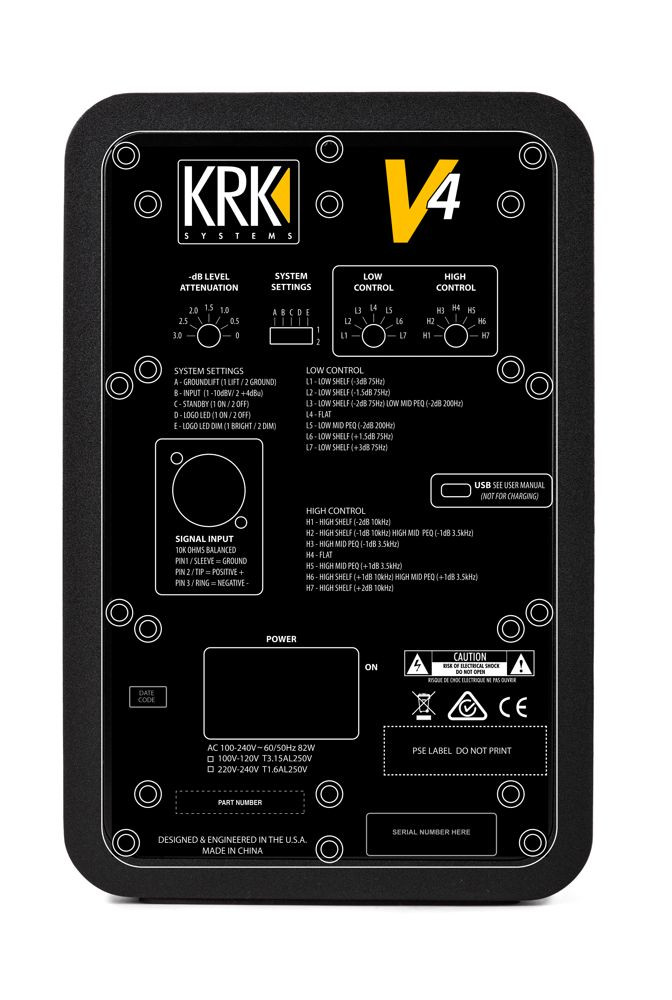

KRK V4-S4 Controls• Level Attenuation: (-3.0 dB, -2.5 dB, -2.0 dB, -1.5 dB, -1.0 dB, -0.5 dB, 0dB)
• System Settings: A (GROUND LIFT), B (INPUT -10dBV / +4dBu), C (STANDBY ON / OFF), D (LOGO LED ON / OFF), E (LOGO LED BRIGHT / DIM)
• Low Control:
- L1 (Low Shelf -3dB 75Hz),
- L2 (Low Shelf -1.5dB 75Hz)
- L3 (Low Shelf -2dB 75Hz / Low Mid Peq -2dB 200Hz)
- L4 (Flat), L5 (Low Mid Peq -2dB 200Hz)
- L6 (Low Shelf +1.5dB 75Hz), L7 (Low Shelf +3dB 75Hz)
• High Control:
- H1 (High Shelf -2dB 10kHz
- H2 (High Shelf -1dB 10kHz / High Mid Peq -1dB 3.5kHz)
- H3 (High Mid Peq -1dB 3.5kHz)
- H4 (Flat)
• Auto Standby: 30 Minutes
• Enclosure Construction: MDF / Aluminum
• Grill (optional): Perforated Steel, powder coated, covers both TW R and W FR
• Hardware: Tool for switches included with unit, threaded inserts on bottom of enclosure compatible with KRKSTDX4A1 pole mount adapter and KRKSTDX8A1 wall mount
• Dimensions: 10.08" x 6.54" x 8.58"
• Weight: 12.78 lbs
