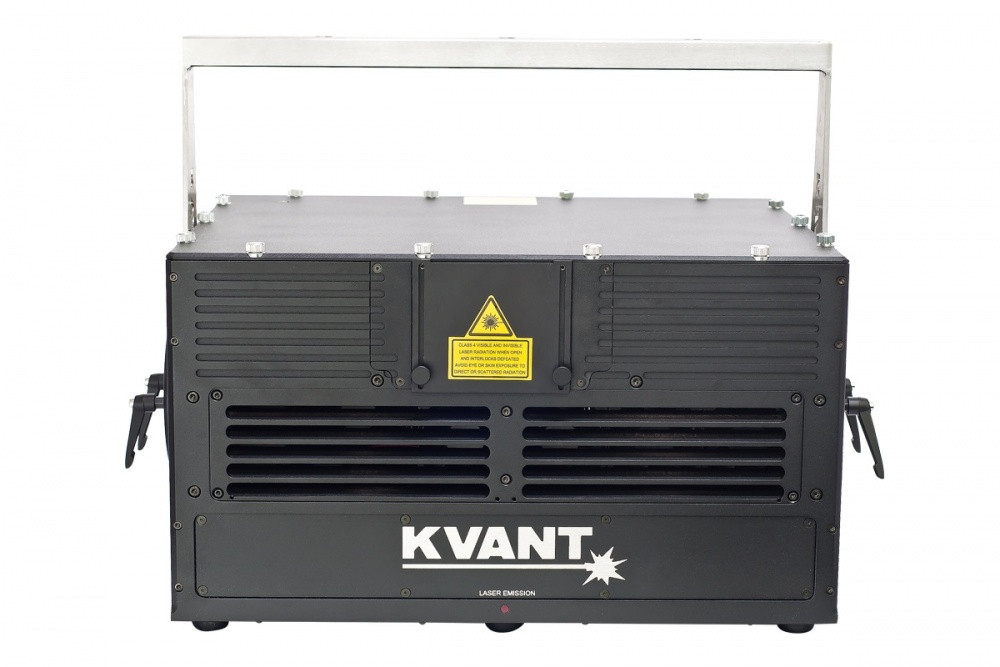

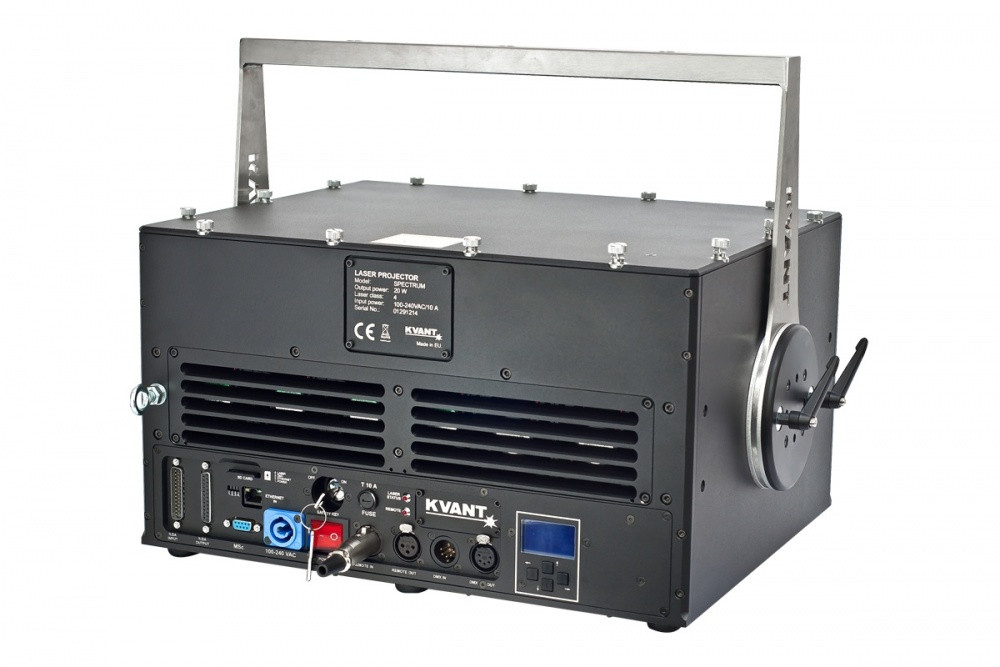

KVANT ATOM Tour 20 Laser System

• Type: full colour, pure diode white-light laser system
• Guaranteed optical output: 19.5W (*see note below)
• Suitable for: indoor and outdoor events, long distance laser graphics
• System control: Moncha.NET or Pangolin FB4
• Control signal I/O: Ethernet, ArtNet (DMX), ILDA, SD card
• Scanning system: CT6215 | 30kpps @ 8 degrees (see options)
• Safety: fully complies with the latest EN 60825-1 and FDA regulations.
• Weight: 34kg

*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s).

• Red :: 6W/637nm laser module KVANT
• Green :: 3.8W/520nm laser module KVANT
• Blue :: 10W/(445+460)nm laser module KVANT
• Beam diameter: 5mm
• Beam divergence: <1mrad
• Modulation: analog, up to 100kHz
• Power requirements: 100-230V/50Hz (A?5%)
• Consumption: max. 500VA
• Operation temperature: 10-35 A?C
• Ingress protection rating: IP54

Integrated laser safety features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, V-RAD 506 mechanical shutter | reaction time <20ms, adjustable aperture masking plate.

Features
Heavy duty case, power lead, 25M ILDA signal cable, E-STOP remote with 25M cable, set of 4 safety keys, interlock connector, CD with PDF manual, CD with Moncha.NET or FB4 laser control software.

All the basic control settings such us X & Y sizes, scan-fail safety settings etc. are adjusted digitally using inbuilt interface. This systems also features scanning system protection and daisy chain of emergency STOP signal for multiple system "one-hit" operation.

Dimensions
14.00"L x 17.00"W x 10.00"H
Weight: 75.00 lbs

Shipping Dimensions
15.00"L x 18.00"D x 11.00"H
Weight: 76.00 lbs
