Whether you're a DJ, a live combo, a solo entertainer or at your next party, you need a sound system that can handle the daily grind of live performance - with professional sound for a variety of applications, with a wide range of connections and accessory options for quick setup on site, and with maximum reliability. In a nutshell, your sound system has to be at its best around the clock.

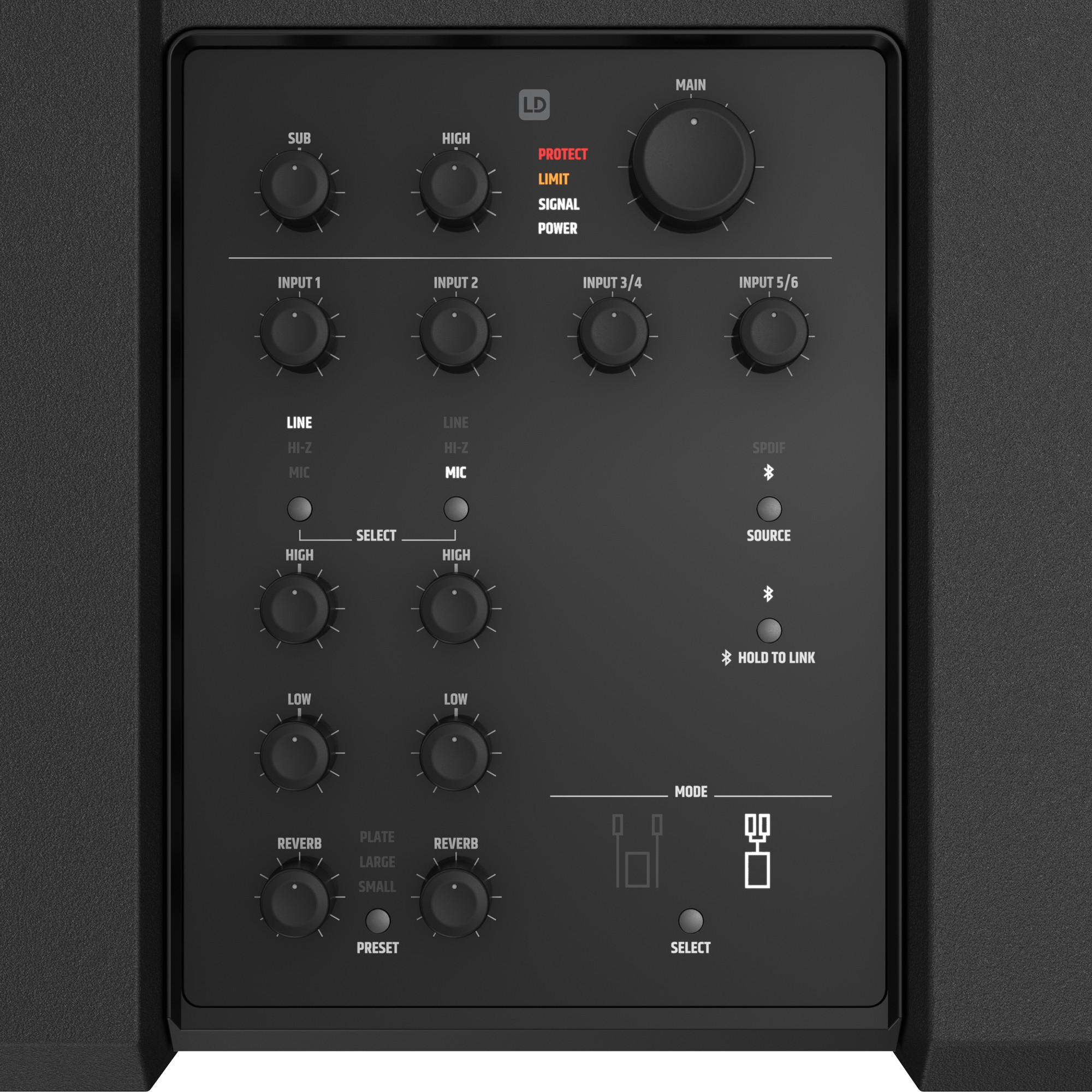

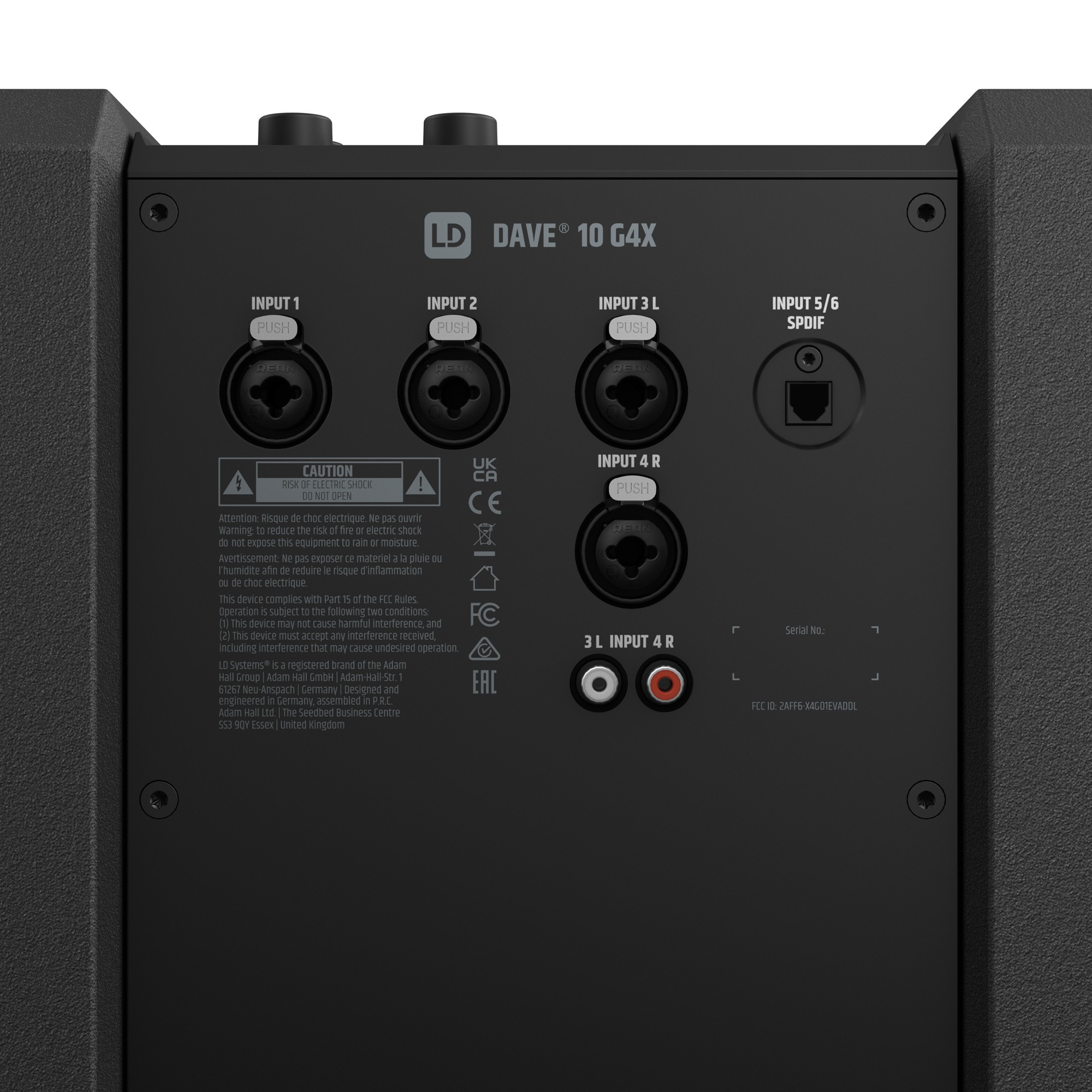

The first two channels of the mixer are designed as channel strips. Here, you can connect either a microphone, a high-impedance instrument - such as a guitar and/or bass - or line-level sources. A 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (small, large, plate), are available for shaping the sound further. Channels 3 and 4 are designed as stereo line inputs and are suitable for keyboards, synthesizers, drum machines or small electronic drum kits.
The DAVE 10 G4X sound system becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to connect a CD player, computer or smartphone. Need some backing tracks or sound effects for your gig, and want to run some music before the concert starts? No problem! The inputs (channels 5 and 6) can also be used for a karaoke system, or simply to connect a TV device in the sports bar for an impressive sound experience.

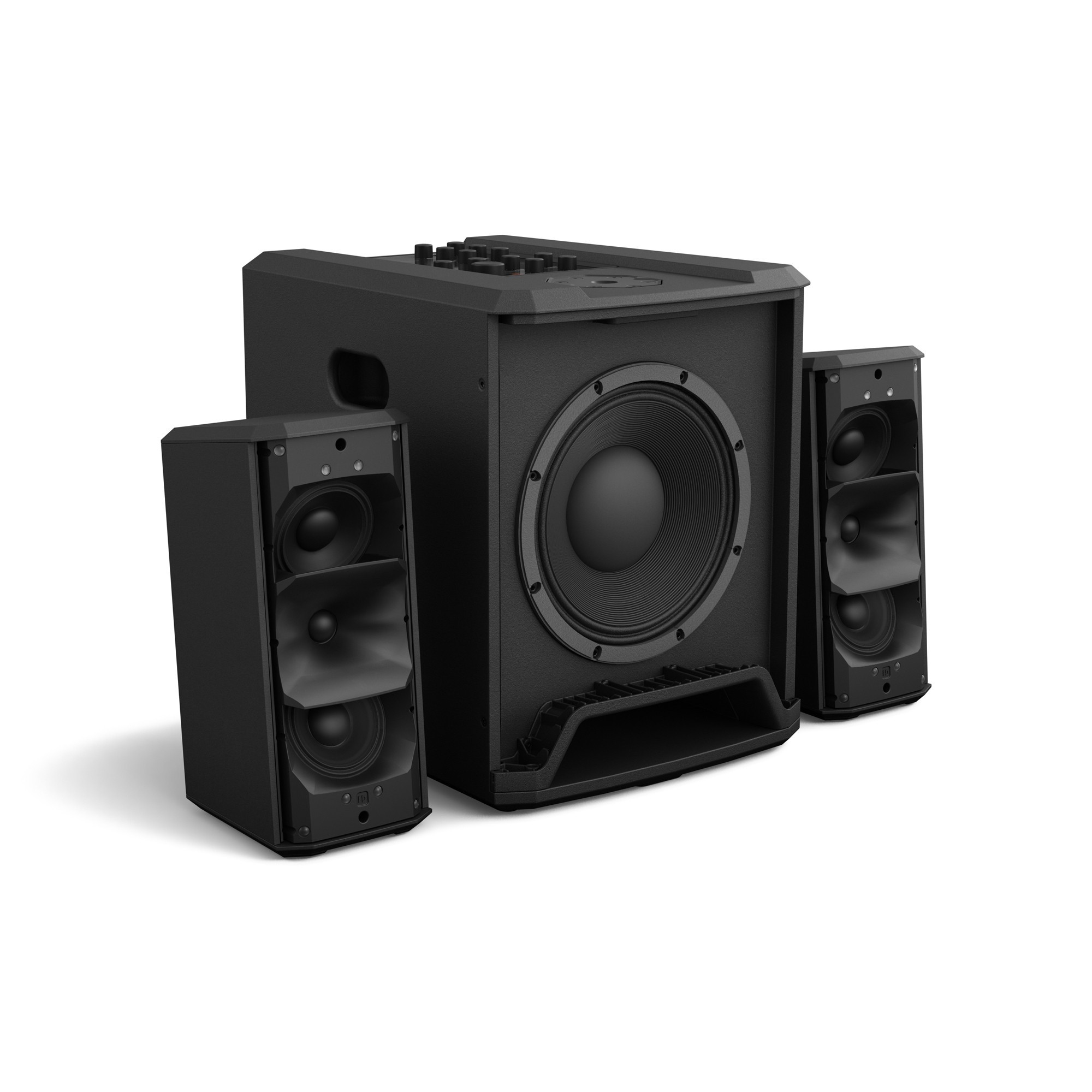

Speaking of impressive sound, the DAVE 10 G4X has been completely redesigned and developed from scratch. This not only benefits instruments and music, but also speech intelligibility when you want to use the sound system for lectures, speeches, or a panel discussion from time to time. The DAVE 10 G4X uses new dome tweeter and waveguides for homogeneous dispersion, as well as FIR filters and state-of-the-art DSP technology for a transparent, distortion-free sound - but also minimal air flow noise thanks to the optimised bass reflex system in the subwoofer.

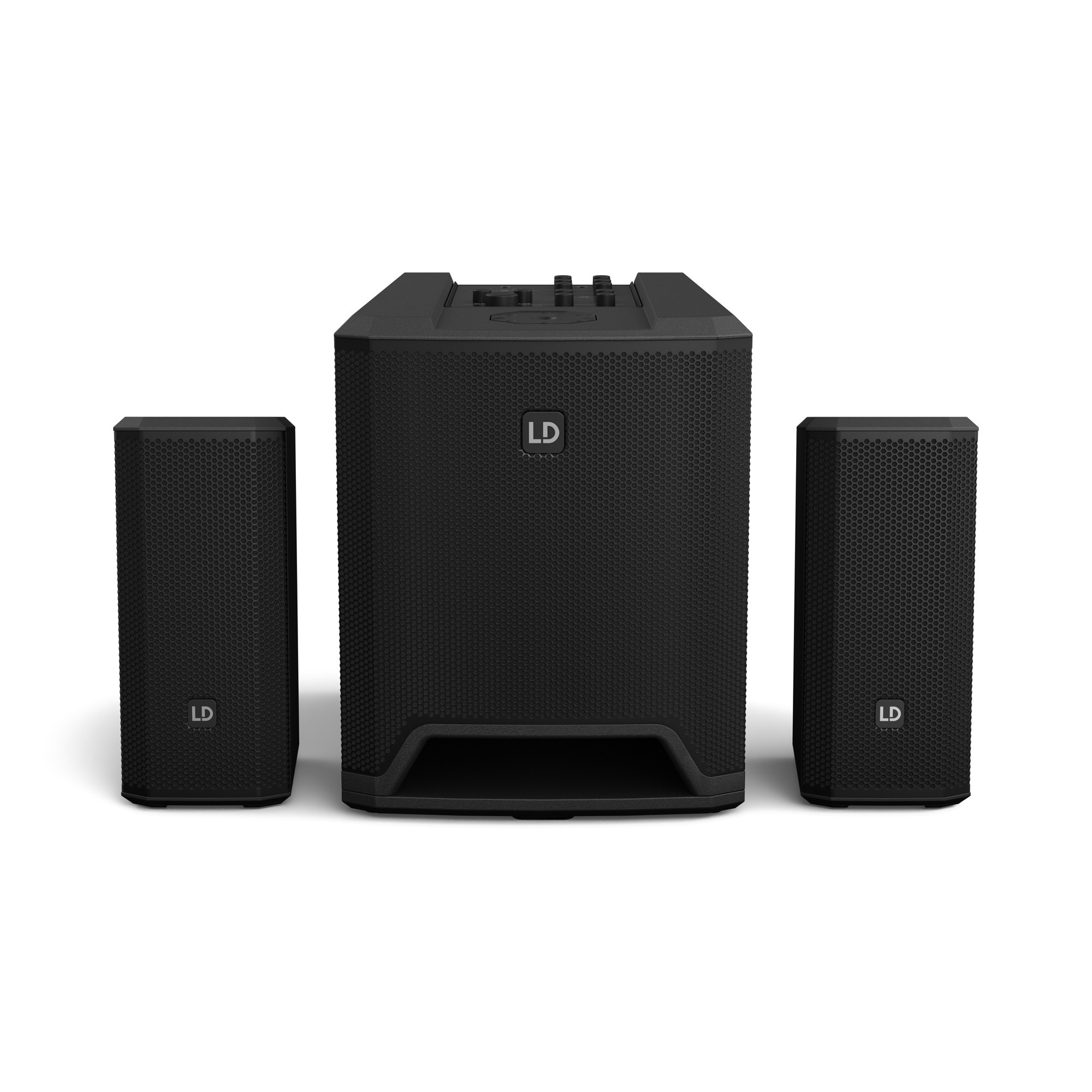

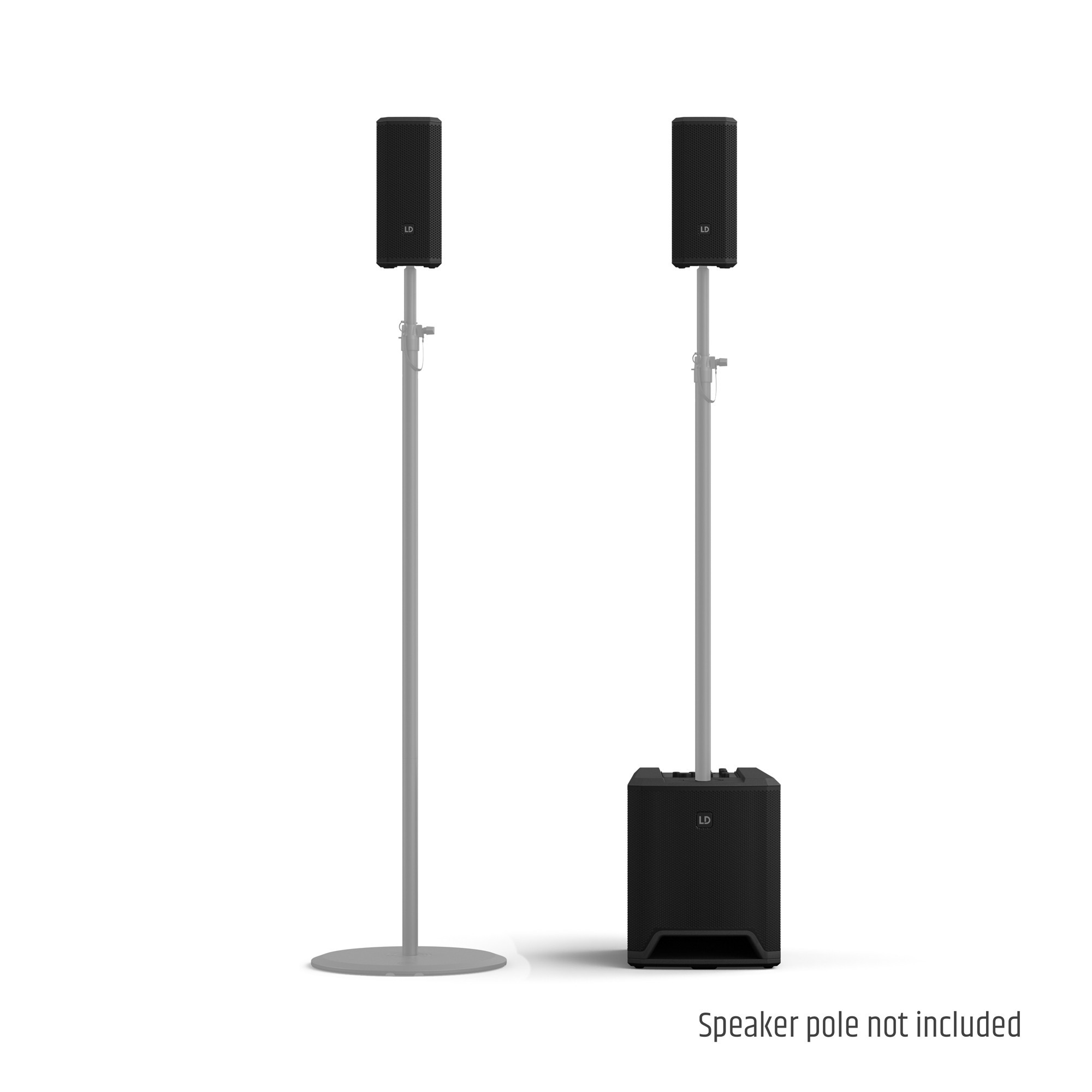

The DAVE 10 G4X sound system is a 2.1 stereo sound system with two selectable stereo presets. Typically, you will place the two satellites to the left and right of the room, or on a stage. The classic stereo preset is intended for this purpose. For a particularly space-saving setup, however, the two satellites can also be mounted on a single T-stand above the subwoofer. Since the satellites are very close together in this case, interference is inevitable. For this purpose, there is a special preset (Cluster Mode) with a special M/S distribution to reproduce the stereo signal without interference. This way, you also get more headroom and directivity.
LD Systems has thought of all common applications when it comes to accessories. These range from transport bags, a trolley and the T-stand mentioned above, a pole-mount stand, or a wall mount for the satellite.
VIDEO

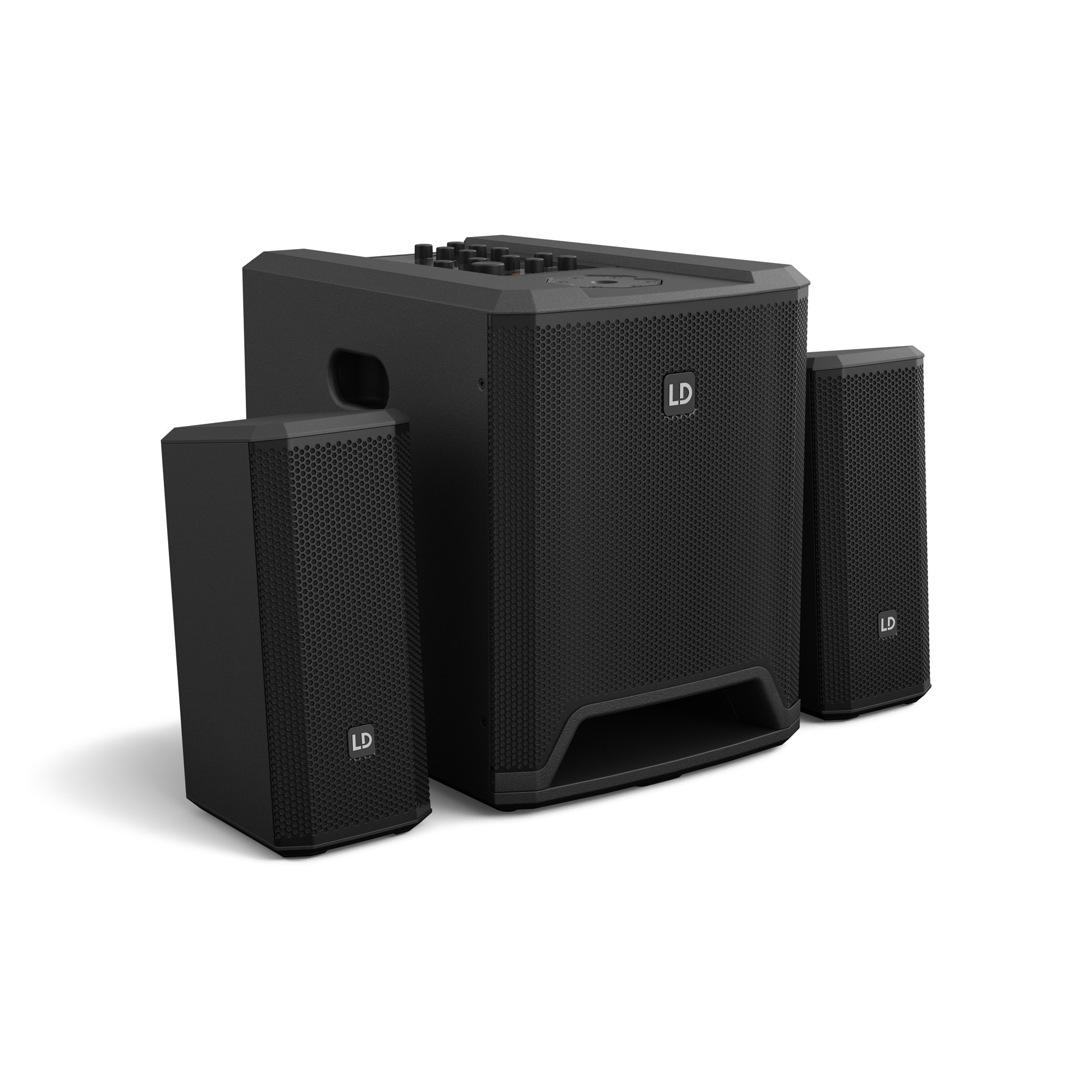

Features • Powered 2.1 sound system with 10" subwoofer and two double 4" satellites
• Total power: 680 W
• Integrated 6-channel mixer with EQ and reverb
• Selectable input for microphone, Hi-Z or line level devices
• Digital SPDIF TOSLINK stereo input
• Wireless streaming via Bluetooth
• Homogeneous dispersion thanks to newly developed waveguides
• DynX DSP (Gen.2) for distortion-free sound reproduction
• Selectable presets depending on the setup (stereo / cluster mode)
• Durable polyurea coating for subwoofer and satellites
Specifications Product type: PA Complete Systems
Type: Powered
Color: Black
System output (RMS): 340 W
System output (Peak): 680 W
Max. SPL (continuous): 114 dB
Max. SPL (Peak): 120 dB
Frequency response (-10dB): 37 - 20000 Hz
Crossover frequency: 110 Hz
Dispersion: 100 x 60
Weight: 24.5 kg
Low/mid Woofer dimensions: 10 "
Woofer dimensions (mm): 304.8 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2 "
Woofer voice coil (mm): 50 mm
Cabinet construction: Bass Reflex
Cabinet material: 15 mm Multiplex, 18 mm Multiplex
Cabinet surface: Polyurea
Subwoofer width: 350 mm
Subwoofer height: 436 mm
Subwoofer depth: 440 mm
Subwoofer weight: 16.5 kg
Subwoofer features: 3 Reverb presets, 6 channel mixer, Bluetooth, Cluster / Stereo Preset, M20, SPDIF
Carrying handles: 2
Midrange dimensions: 2 x 4 "
Midrange dimensions (mm): 2 x 101.6 mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1 "
Midrange voice coil: 25.4 mm
Horn: CD Waveguide
Tweeter dimensions: 1 "
Tweeter dimensions (mm): 25.4 mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Tweeter voice coil: 1 "
Tweeter voice coil (mm): 25.4 mm
Mid/Hi system impedance: 4 Ohm(s)

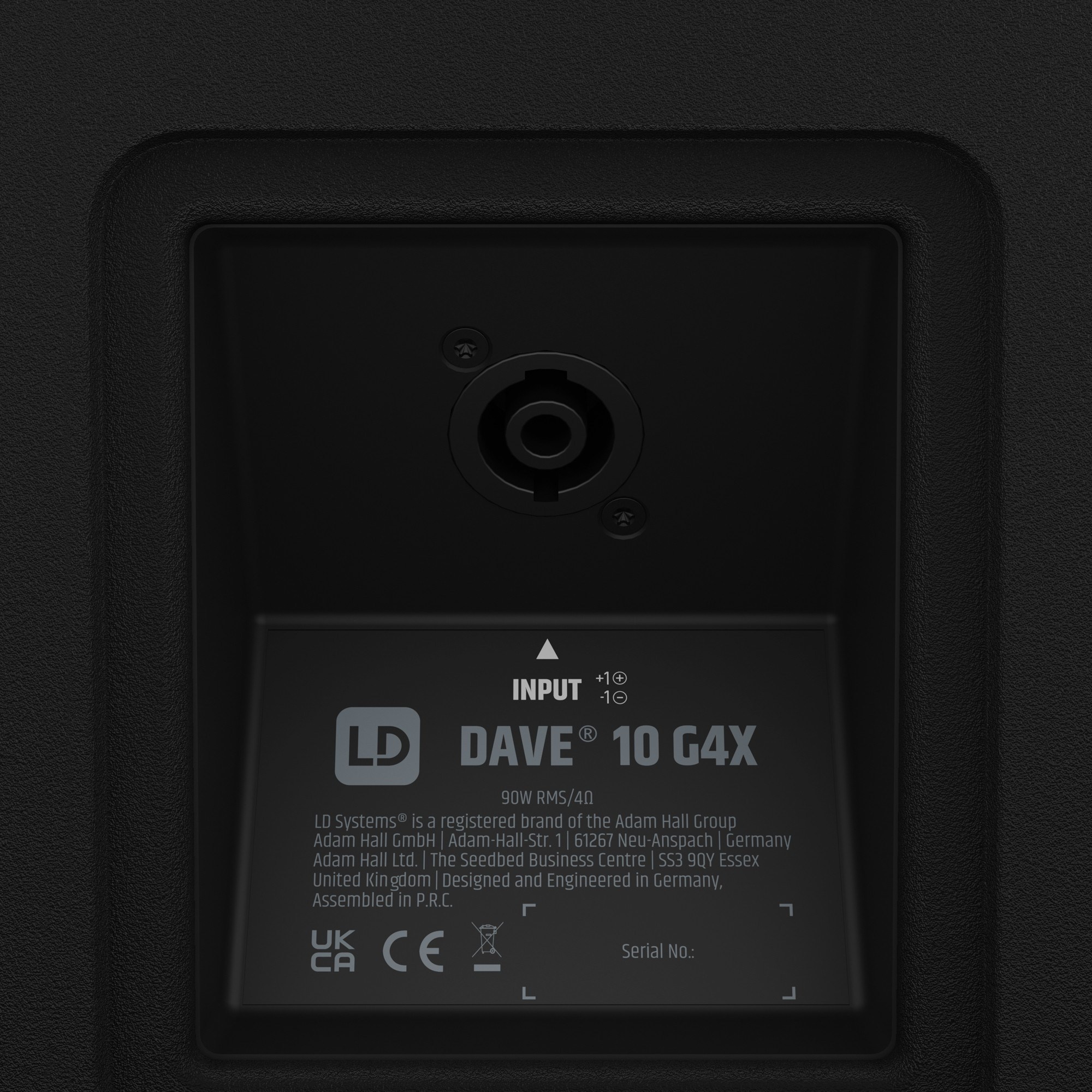

Mid/Hi system speaker connections: 1
Mid/Hi system speaker connections: Speakon compatible
Cabinet construction mid/high: Bass Reflex
Carrying Handles Mid / Hi System: 1
Mid/Hi system cabinet material: 12 mm Multiplex, 15 mm Multiplex
Mid/Hi system cabinet surface: Polyurea
Mid/Hi system width: 150 mm
Mid/Hi system height:345 mm
Mid/Hi system depth: 170 mm
Mid/Hi system weight: 4 kg

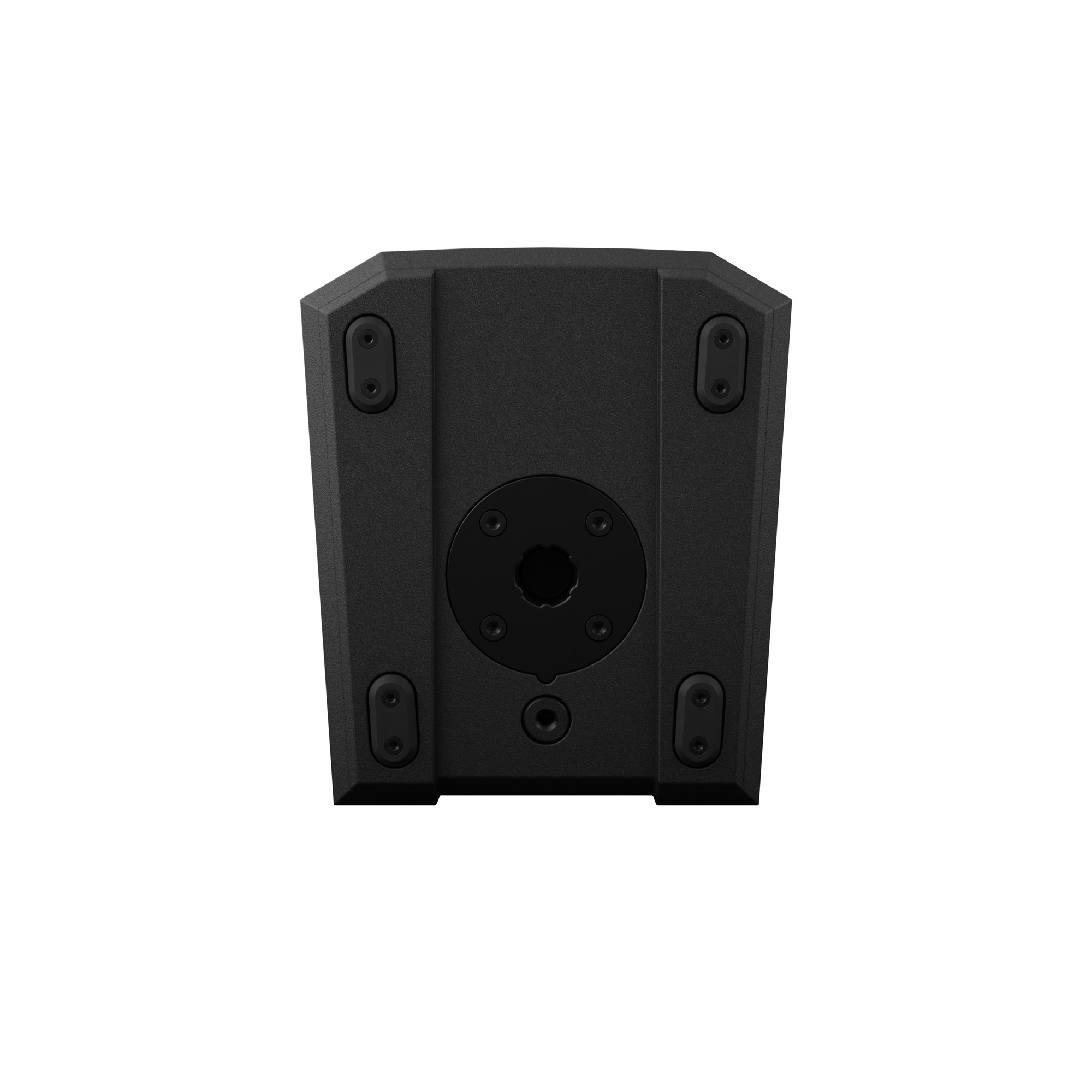

Mid/Hi system features: Star flange 16 mm
Amplifier: Class D
Amplifier output subwoofer (RMS): 170 W
Amplifier Output Mid/Hi (RMS): 2 x 85 W
Protection circuits: limiter, overload, Short circuit
Cooling: Passive
Operating Temperature: 0C - 40 C
Humidity Range: < 80% (non-condensing)
Controls: Input type, Input volume, Low / High EQ, Main volume, Power, Reverb, Stereo / Cluster mode, Sub / High level
Indicators: Limit, Power, Protect, Signal

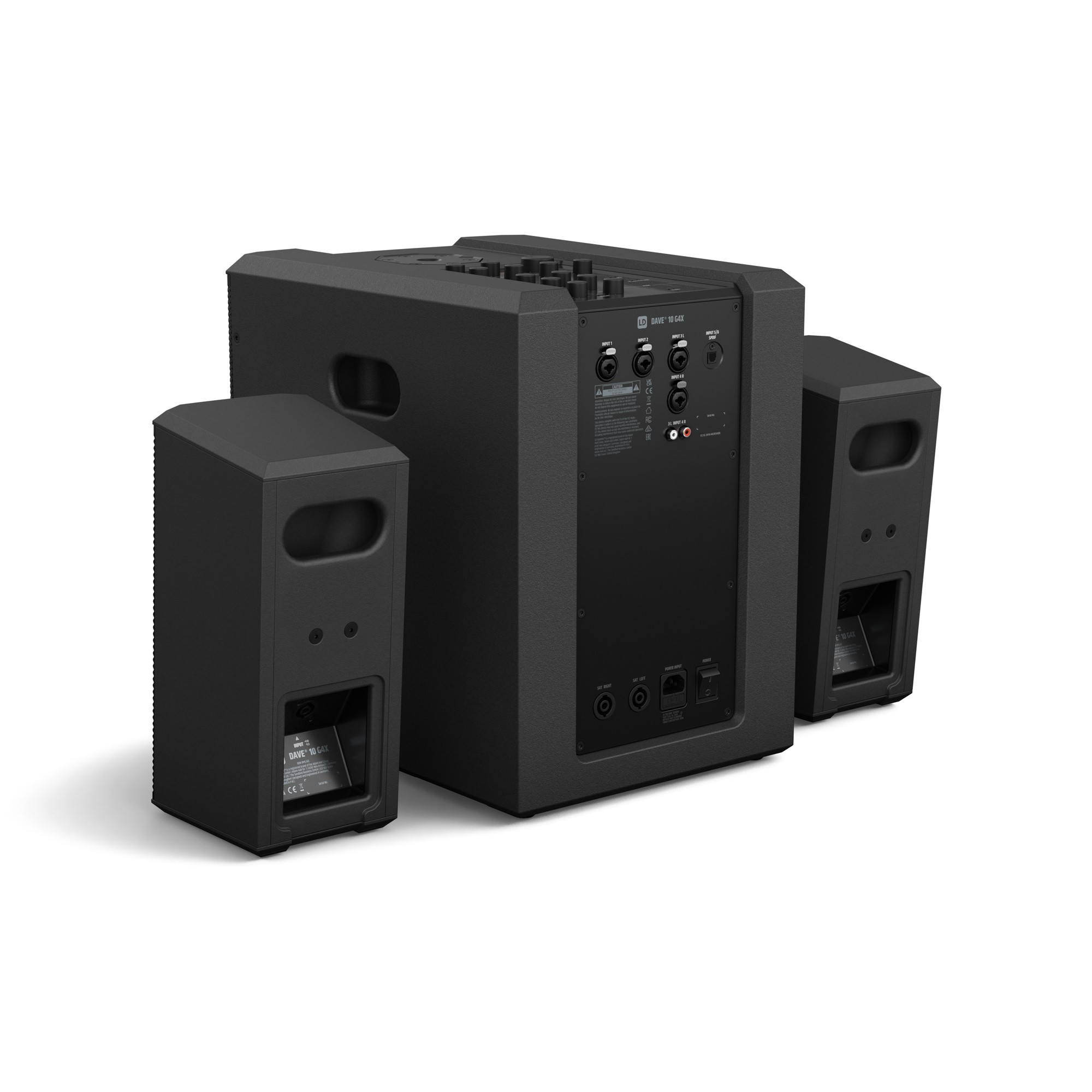

Power supply connector: IEC
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 120 W
Multi input: 2 x switchable (MIC, LINE, HI-Z)
Multi input connector: Combo XLR
Line inputs: 2
Line input connectors: Combo XLR, RCA
Digital inputs: 2
Digital input connectors: SPDIF
Loudspeaker outputs: 2
Speaker output connections: Speakon compatible
Bluetooth Standard: A2DP
Bluetooth Audio Decoder: SBC
Bluetooth version: 5.0
