Whether you're a DJ, a live combo, a solo entertainer or at your next party, you need an all-round PA for everyday live performance that delivers professional sound for a variety of applications. Also on your list of essentials: a wide range of connections and accessory options for fast and flexible on-site setup, and maximum reliability. In a nutshell: your PA has to give its best around the clock.
The first two channels of the mixer are designed as channel strips. Here, you can connect either a microphone, a high-impedance instrument - such as a guitar and/or bass - or line-level sources. A 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (small, large, plate), are available for shaping the sound further. Channels 3 and 4 are designed as stereo line inputs, and are suitable for keyboards, synthesizers, drum machines or small electronic drum kits.
The DAVE 15 G4X becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to add a media player, computer or smartphone to your performance setup, allowing you to play and control backing tracks, sound effects or music during your breaks. The inputs (channels 5 and 6) can also be used for a karaoke system, or simply to connect a TV device in the sports bar for an impressive sound experience.
Speaking of impressive sound, the DAVE 15 G4X has been completely redesigned and developed from scratch. This not only benefits instruments and music, but also speech intelligibility when the PA is used for speech reinforcement. The acoustic concepts include new compression drivers and waveguides for a homogeneous and directional dispersion, as well as FIR filters and state-of-the-art DSP technology for a transparent, colourless sound that brings the DAVE Series to a whole new level. The subwoofer, for example, is equipped with a larger voice coil and an optimised bass reflex system to reduce air flow noise to a minimum.

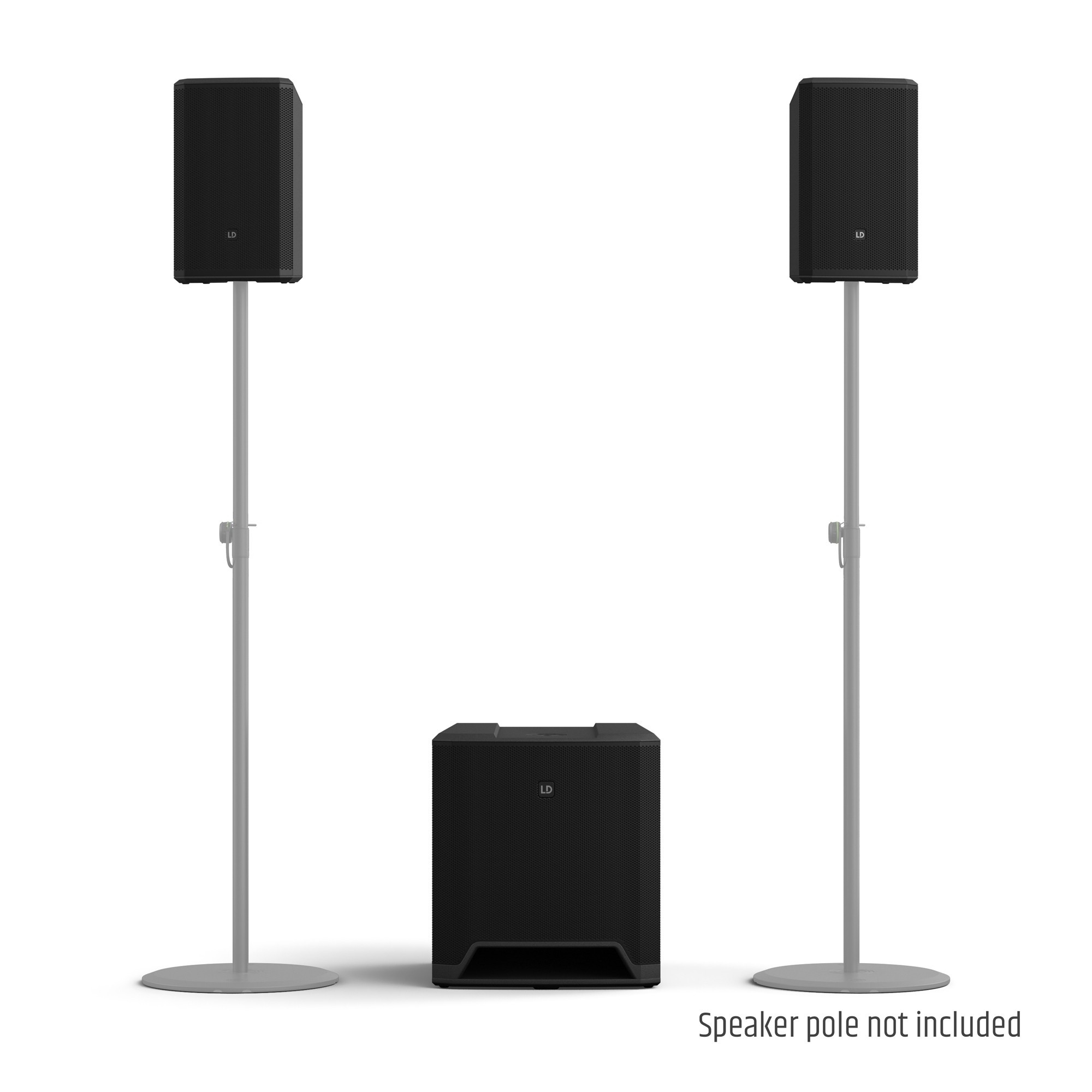

The DAVE 15 G4X is predestined for flexible use. The selectable mode presets (for classic stereo use or set up with two closely spaced satellites on a T-stand above the subwoofer) contribute to this - the DAVE G4X is convincing in terms of sound in all configurations. For example, the Cluster Mode preset allows the interference-free coupling of two satellites by means of a special M/S split and reproduction of the stereo signal for more headroom and directivity.
LD Systems has also thought of all common applications when it comes to accessories. These range from custom-fit bags and a castor board to the T-stand mentioned above.
VIDEO

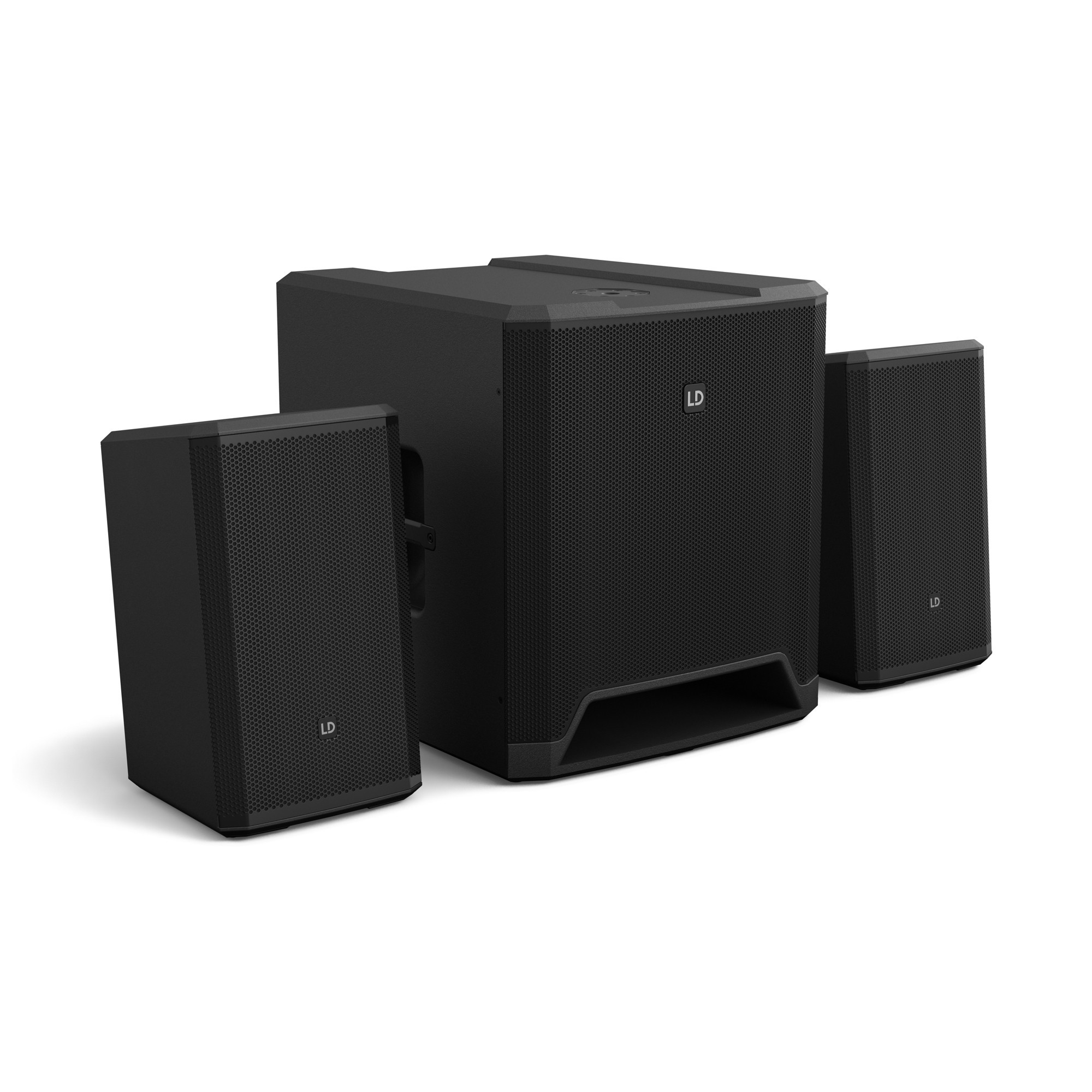

Features • Powered 2.1 PA with 15" subwoofer and two 8" satellites
• Total power: 2060 W
• Integrated 6-channel mixer with EQ and reverb
• Selectable input for microphone, Hi-Z or Line
• Digital SPDIF TOSLINK stereo input
• Wireless streaming via Bluetooth
• Homogeneous dispersion thanks to newly developed waveguides
• DynX DSP (Gen.2) for distortion-free sound reproduction
• Selectable presets depending on the setup (stereo / cluster mode)
• Durable polyurea coating for subwoofer and satellites
Specifications Product type: PA Complete Systems
Type: Powered
Color: Black
System output (RMS): 1030 W
System output (Peak): 2060 W
Max. SPL (Avarage): 124 dB
Max. SPL (Peak): 130 dB
Frequency response (-10dB): 33 - 20000 Hz
Crossover frequency: 105 Hz
Dispersion (H x V): 90 x 30
Weight: 53.9 kg
Low/mid Woofer dimensions: 15 "
Woofer dimensions (mm): 381 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 3 "
Woofer voice coil (mm): 75 mm
Cabinet construction: Bass Reflex
Cabinet material: 15 mm Multiplex, 18 mm Multiplex
Cabinet surface: Polyurea
Subwoofer width: 515 mm
Subwoofer height: 575 mm
Subwoofer depth: 585 mm
Subwoofer weight: 34.5 kg
Subwoofer features: 3 Reverb presets, 6 channel mixer, Bluetooth, Cluster / Stereo Preset, M20, SPDIF
Carrying handles: 2
Midrange dimensions: 8 "
Midrange dimensions (mm): 203.2 mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1.5 "
Midrange voice coil: 38.6 mm
Horn: CD Horn
Tweeter dimensions: 2 x 0.5 "
Tweeter dimensions (mm): 2 x 12.7 mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Tweeter voice coil: 1 "
Tweeter voice coil (mm): 25.4 mm
Mid/Hi system impedance: 4 Ohm(s)

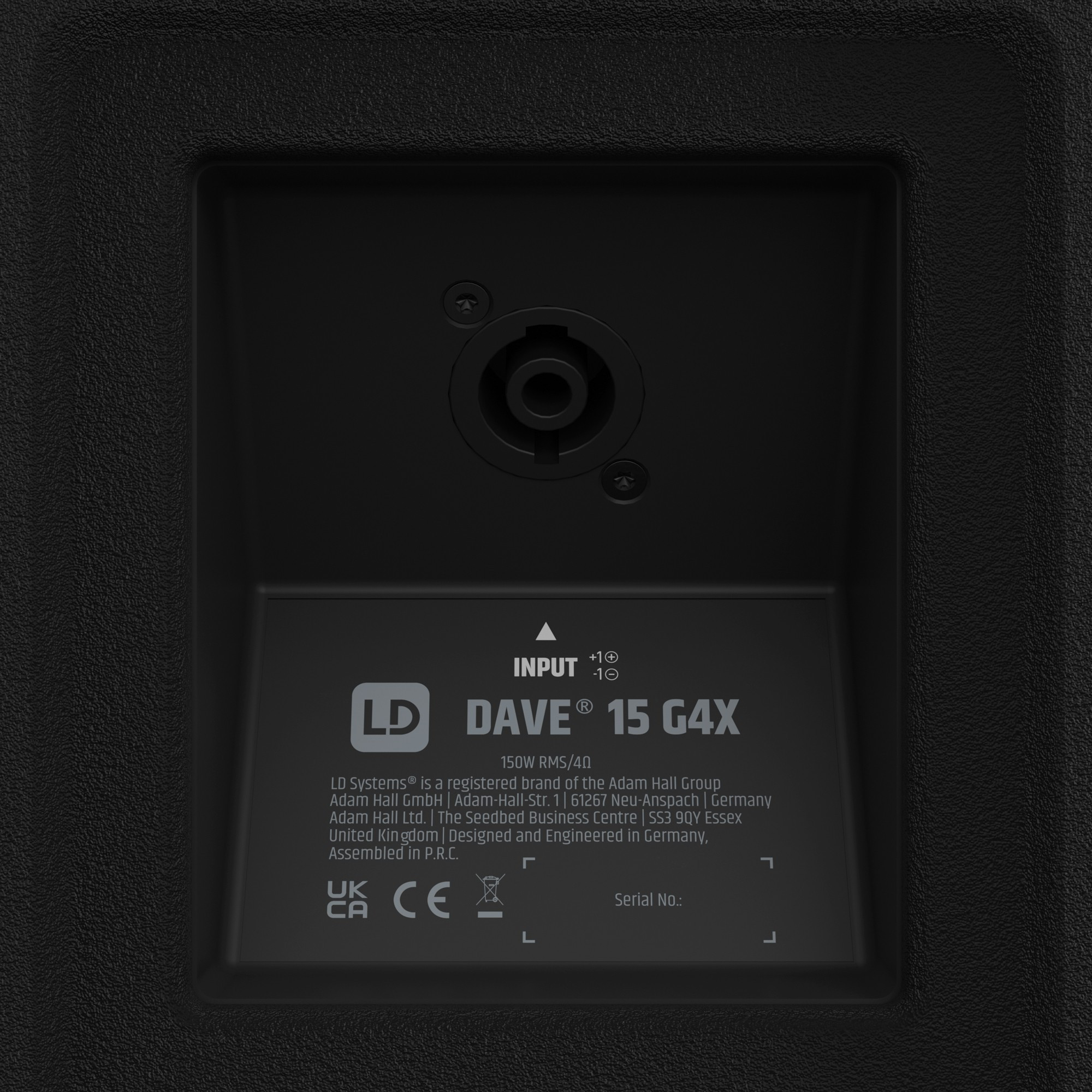

Mid/Hi system speaker connections: 1
Mid/Hi system speaker connections: Speakon compatible
Cabinet construction mid/high: Bass Reflex
Carrying Handles Mid / Hi System: 1
Mid/Hi system cabinet material: 12 mm Multiplex, 15 mm Multiplex
Mid/Hi system cabinet surface: Polyurea
Mid/Hi system width: 275 mm
Mid/Hi system height: 470 mm
Mid/Hi system depth: 260 mm
Mid/Hi system weight: 9.7 kg
Mid/Hi system features: Dual - Tilt flange, Midrange Waveguide
Amplifier: Class D
Amplifier output subwoofer (RMS): 500 W
Amplifier Output Mid/Hi (RMS): 2 x 265 W
Protection circuits: limiter, overload, Short circuit
Cooling: Passive
Operating Temperature: 0C - 40 C
Humidity Range: < 80 % ( non-condensing )

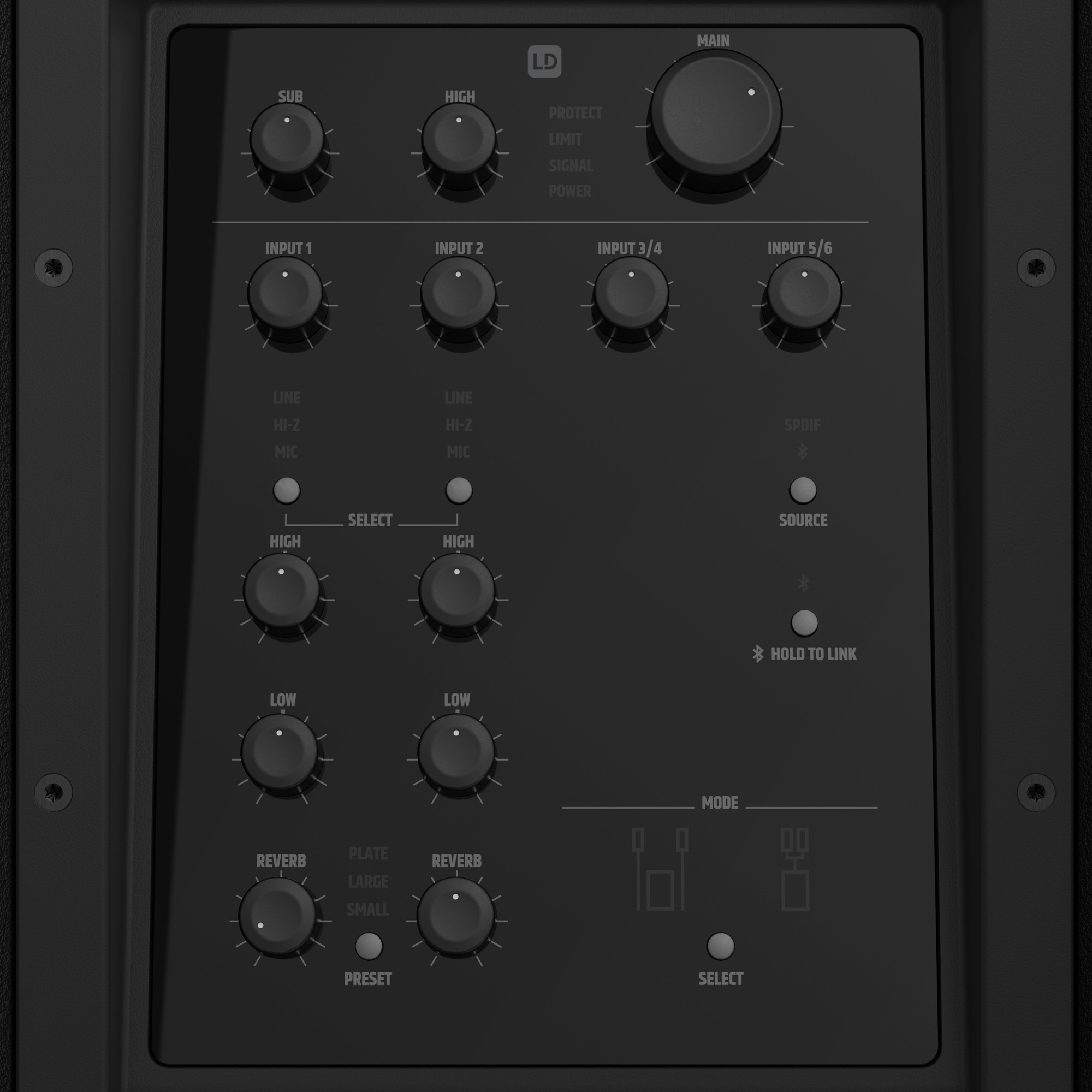

Controls: Input type, Input volume, Low / High EQ, Main volume, Power, Reverb, Stereo / Cluster mode, Sub / High level
Indicators: Limit, Power, Protect, Signal
Power supply connector: IEC
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 400 W

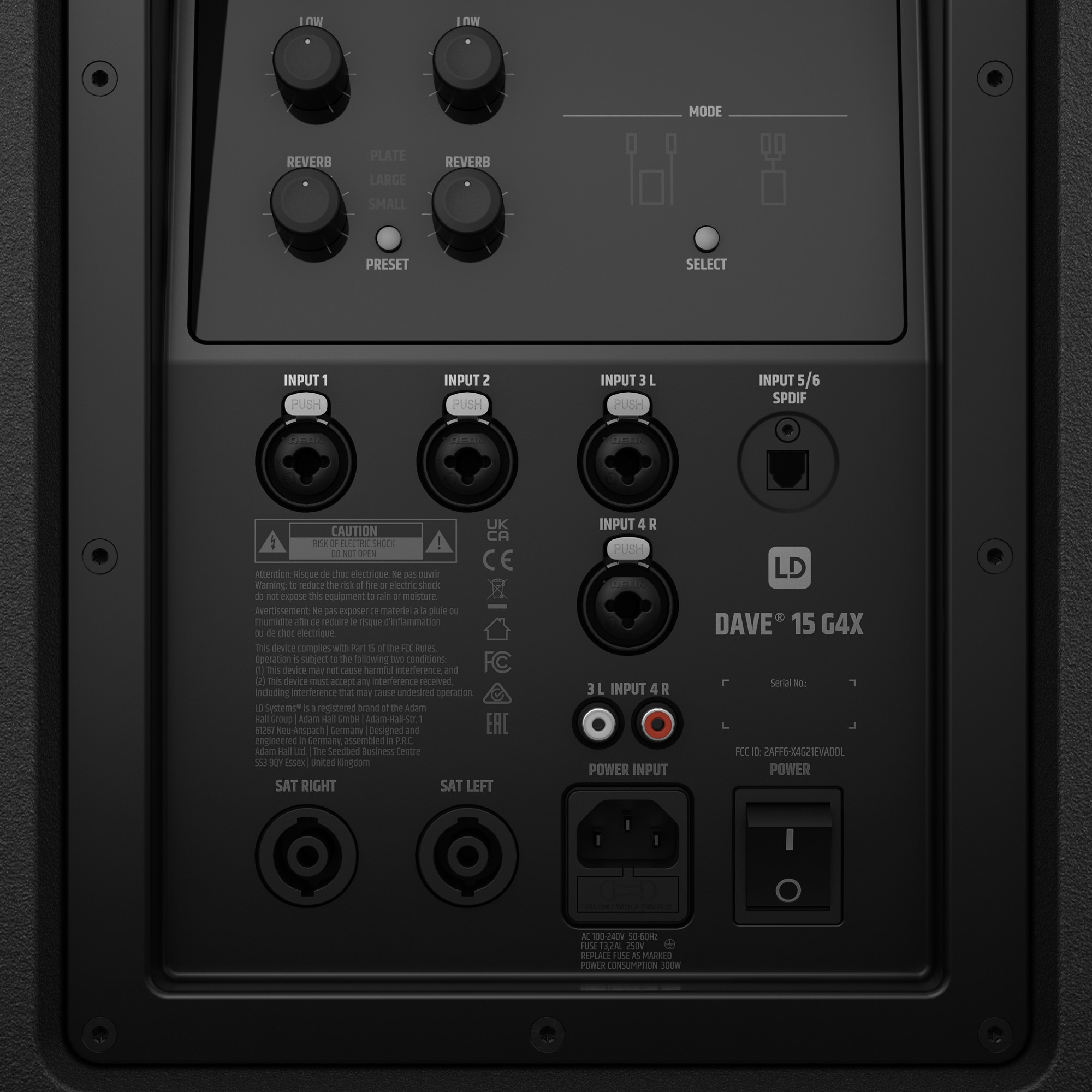

Multi input: 2 x switchable (MIC, LINE, HI-Z)
Multi input connector: Combo XLR
Line inputs: 2
Line input connectors: Combo XLR, RCA
Digital inputs: 2
Digital input connectors: SPDIF
Loudspeaker outputs: 2
Speaker output connections: Speakon compatible
Bluetooth Standard: A2DP
Bluetooth Audio Decoder: SBC
Bluetooth version: 5.0
