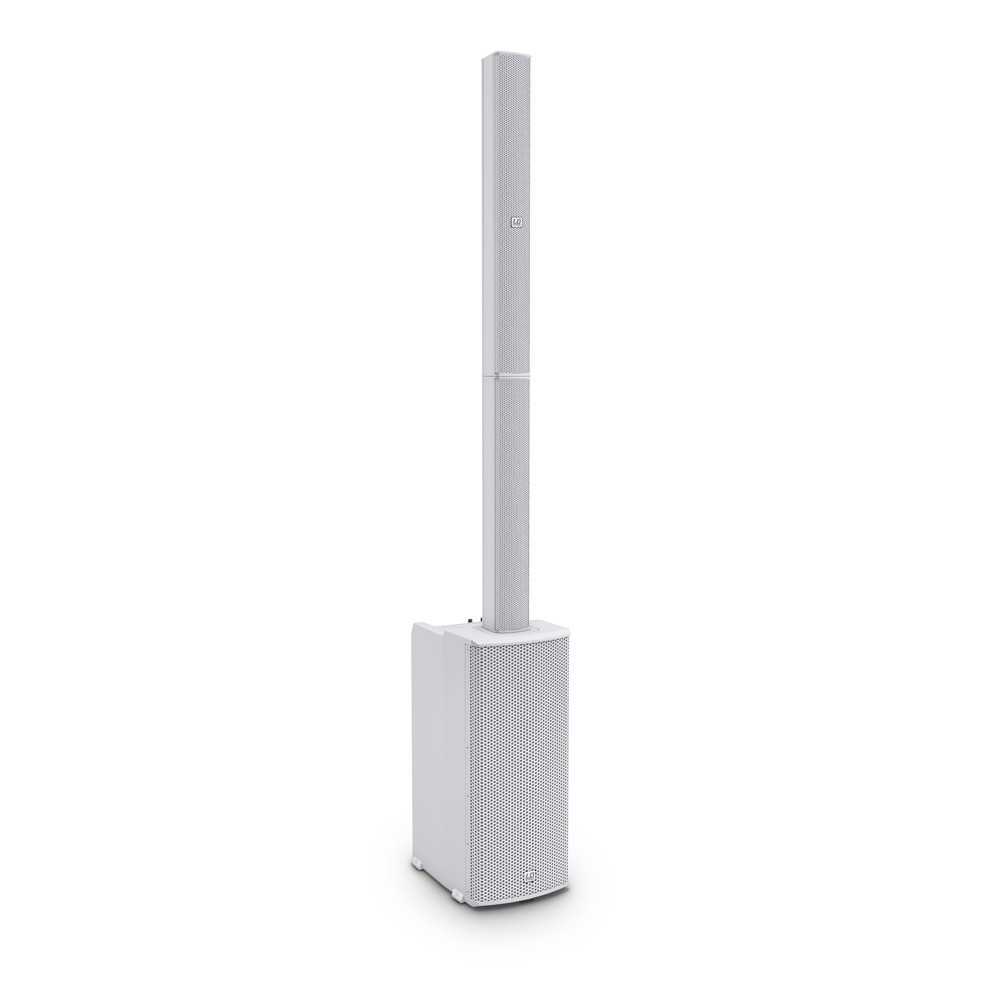

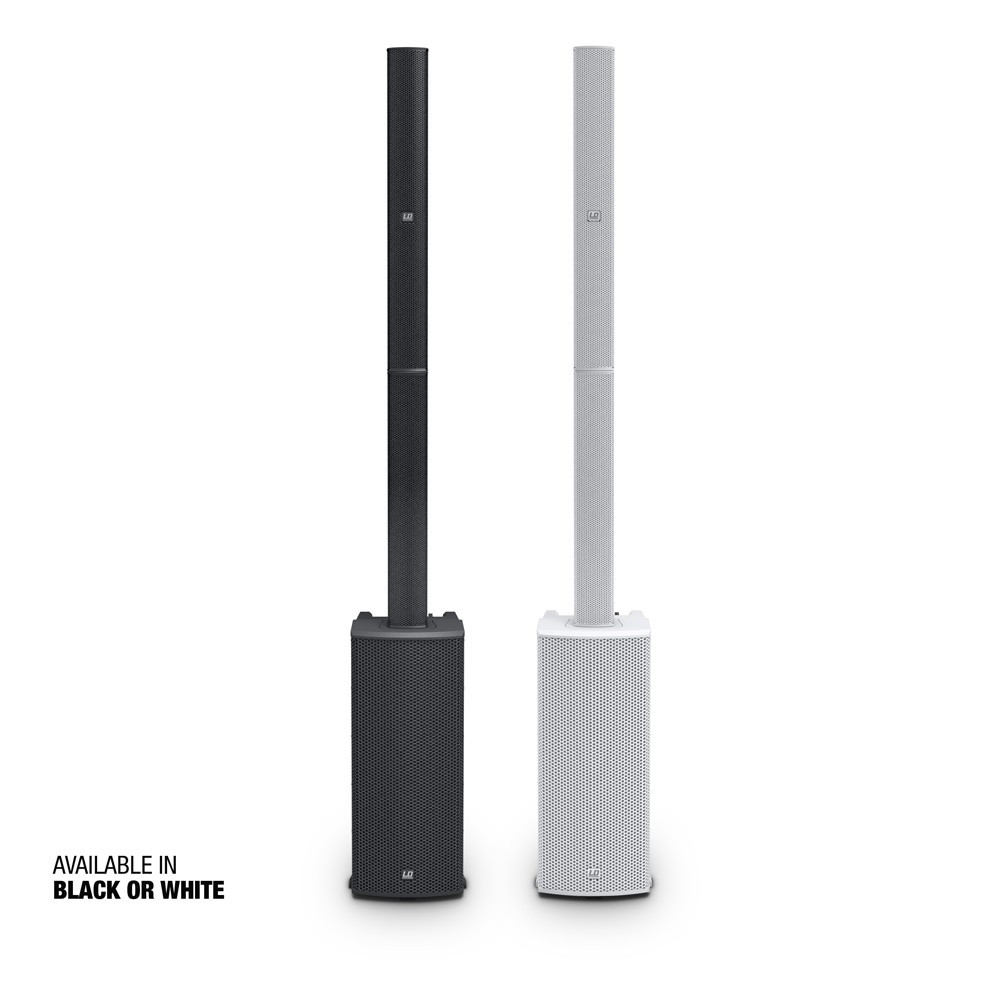

The compact and elegant MAUI 11 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed after years of experience in the design of the column systems as a user-friendly solution for small to medium-sized gigs and fixed installations.

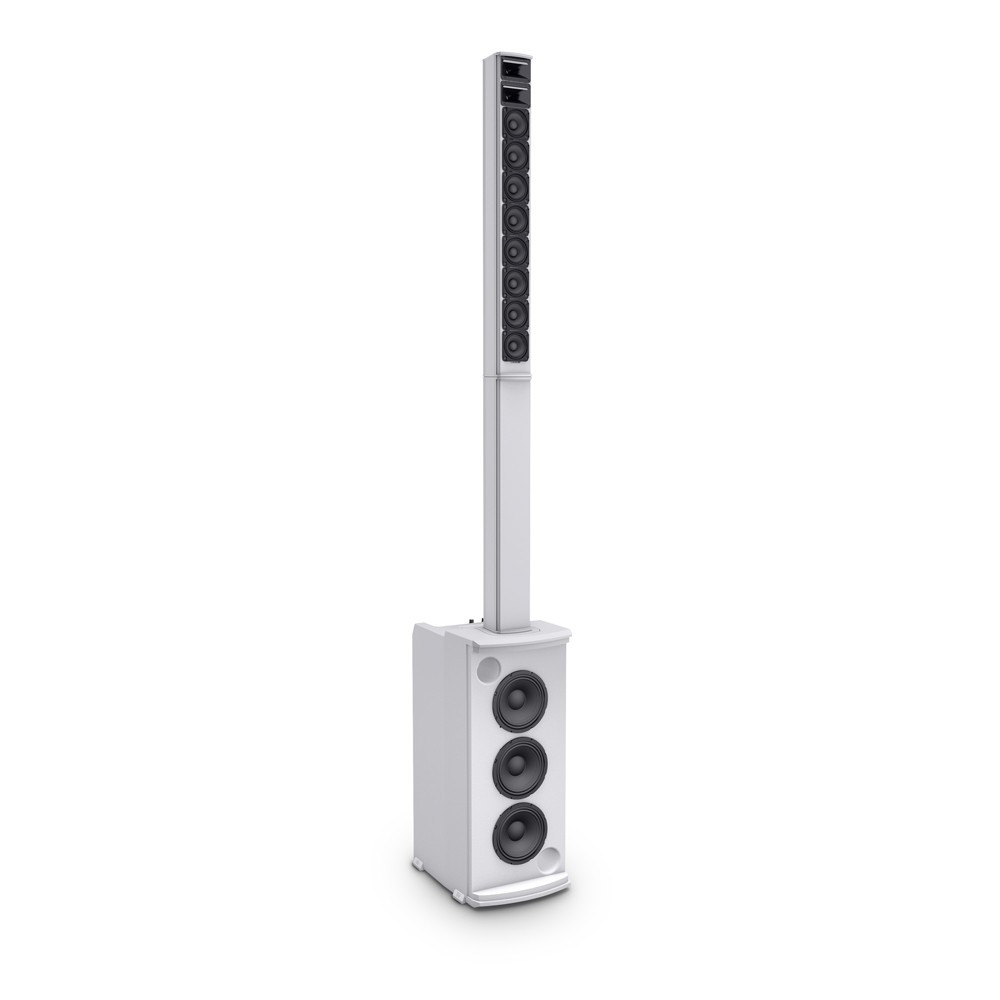

The MAUI 11 G2 is equipped with three 6.5" woofers, eight 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier boasting 1,000 watts of peak power and producing a grunty bass, balanced mids and precise and silky highs. The DynX DSP technology from LD Systems provides top-class performance each time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way-crossover with run time correction.
The design of the MAUI 11 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.
With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer or DJ, you will be thrilled with the extraordinary sound and portability of the MAUI 11 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 11 G2 is a well thought out overall solution, down to the last details.
VIDEO
Features • All-in-one column speaker for PA and monitor applications
1,000 watts peak Class-D system power offer high performance with a low weight
• Powerful bass reproduction with 3 x 6.5" woofers
• Balanced mids thanks to the 8 x 3" full-range speakers
• Precise and silky highs with 2 x 1" high frequency drivers
• Increased range and wider coverage through the array arrangement
• Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
• Distortion-free sound even at the highest volume thanks to LD Systems DynX DSP technology
• Full control through a 4-channel mixer including Bluetooth Stereo Audio Streaming

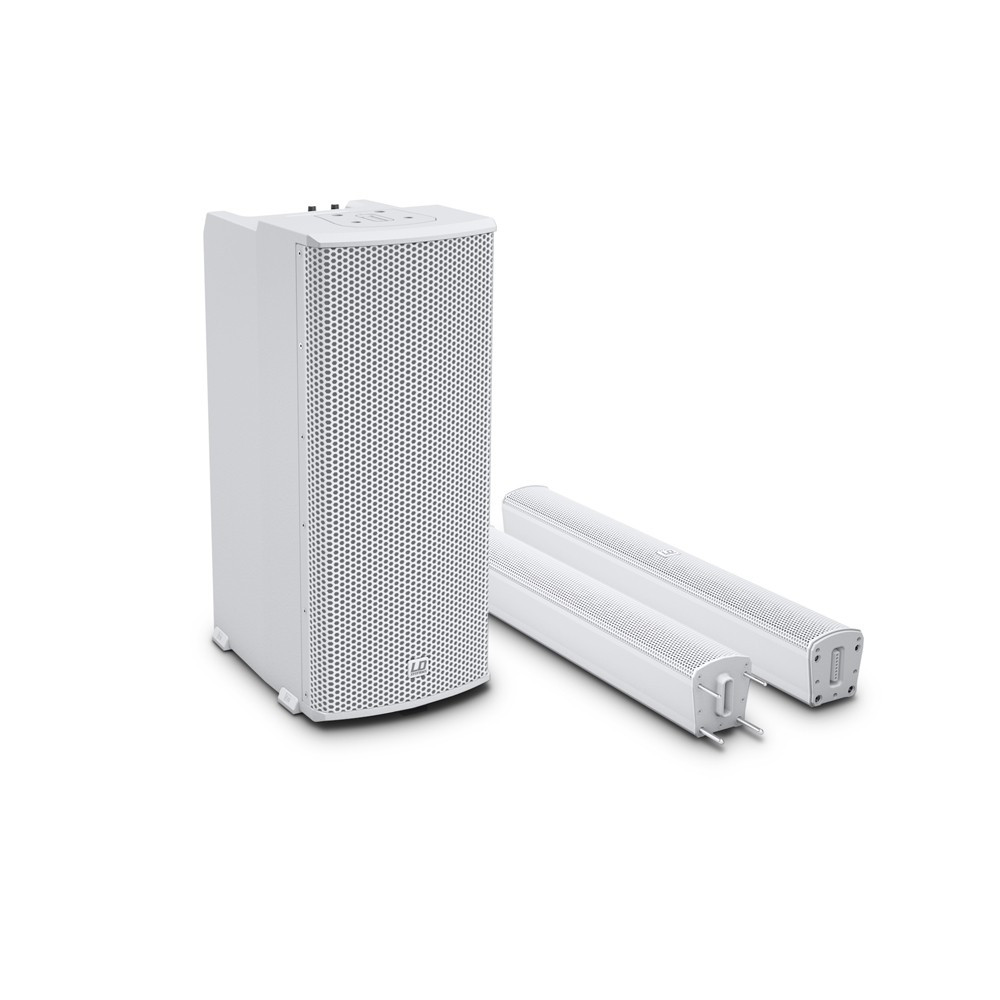

• Two-piece column for compact transport
• Secure plug-and-play connection thanks to the wireless multi-pin mechanism
• A wide range of application options through dismountable columns
• Easy operation with presets for mono or stereo configuration
• Extensive and smart accessories for installation and transport
Specifications General Product type: PA Complete Systems Accessories
Type: Active
Color: Black
Max SPL: 124 dB
Frequency Response: 50 - 20000 Hz
Dispersion (H x V): 120 x 20
Height: 78"
Width: 13"
Depth: 10"
Weight: 54.8 lbs
Woofer Characteristics Low/mid driver dimensions: 3 x 6.5 "
Woofer size: 3 x 165.1 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 1.5 "
Woofer voice coil (mm): 38.1 mm
Cabinet construction: Bass Reflex
Cabinet material: 15 mm Plywood
Cabinet surface: texture paint
Subwoofer width: 285 mm
Subwoofer height: 650 mm
Subwoofer depth: 373 mm
Subwoofer weight: 16.9 kg
Mid/Hi System Midrange size: 8 x 3 "
Midrange size: 8 x 76.2 mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1 "
Midrange voice coil: 25.4 mm
Horn: Waveguide
Tweeter dimensions: 2 x1 "
Tweeter dimensions (mm): 25.4 mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Tweeter voice coil: 1 "
Tweeter voice coil (mm): 25.4 mm
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: Aluminium
Mid/Hi system cabinet surface: HD coating
Mid/Hi system width: 96 mm
Mid/Hi system height: 620 / 730 mm
Mid/Hi system depth: 104 mm
Mid/Hi system weight: 5.4 / 2.6 kg
Amplifier Module (integrated in subwoofer) Amplifier: Class D
Amplifier output system (RMS): 500 W
Amplifier output system (peak): 1000 W
Protection circuits: DC protection, Multiband limiter, short circuit, thermal overload
Cooling:Convection
Operating Temperature: 0 - 40 C
Humidity Range: 10% to 80%, (non-condensing)

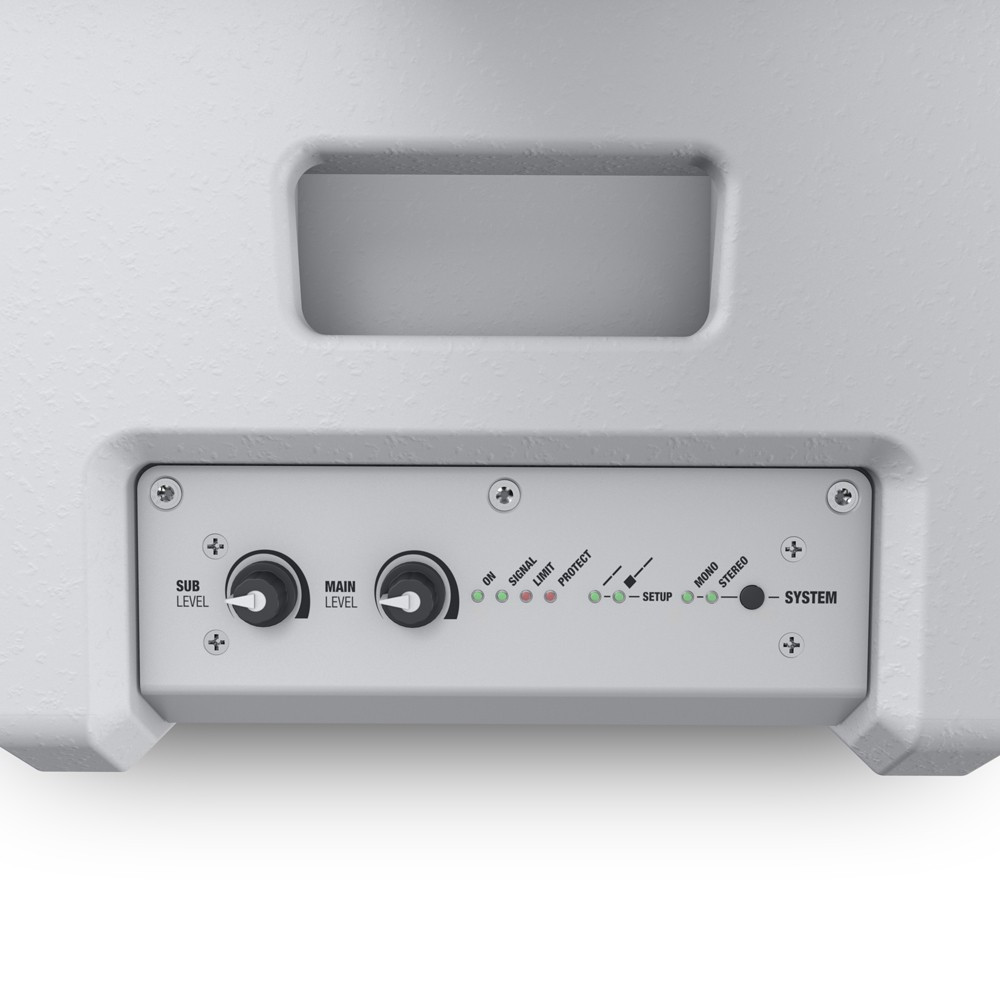

Controls: Bluetooth switch, Hi-Z Level, Line level, Main level, Mono/stereo switch, MP3/Bluetooth Level, Power, Sub level
Indicators: Limit, mono, On, Protect (protection circuit engaged), Setup, Signal, stereo
Power connector: IEC power cable (included)
Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power consumption Off / On / Max.: 0/11/600 W

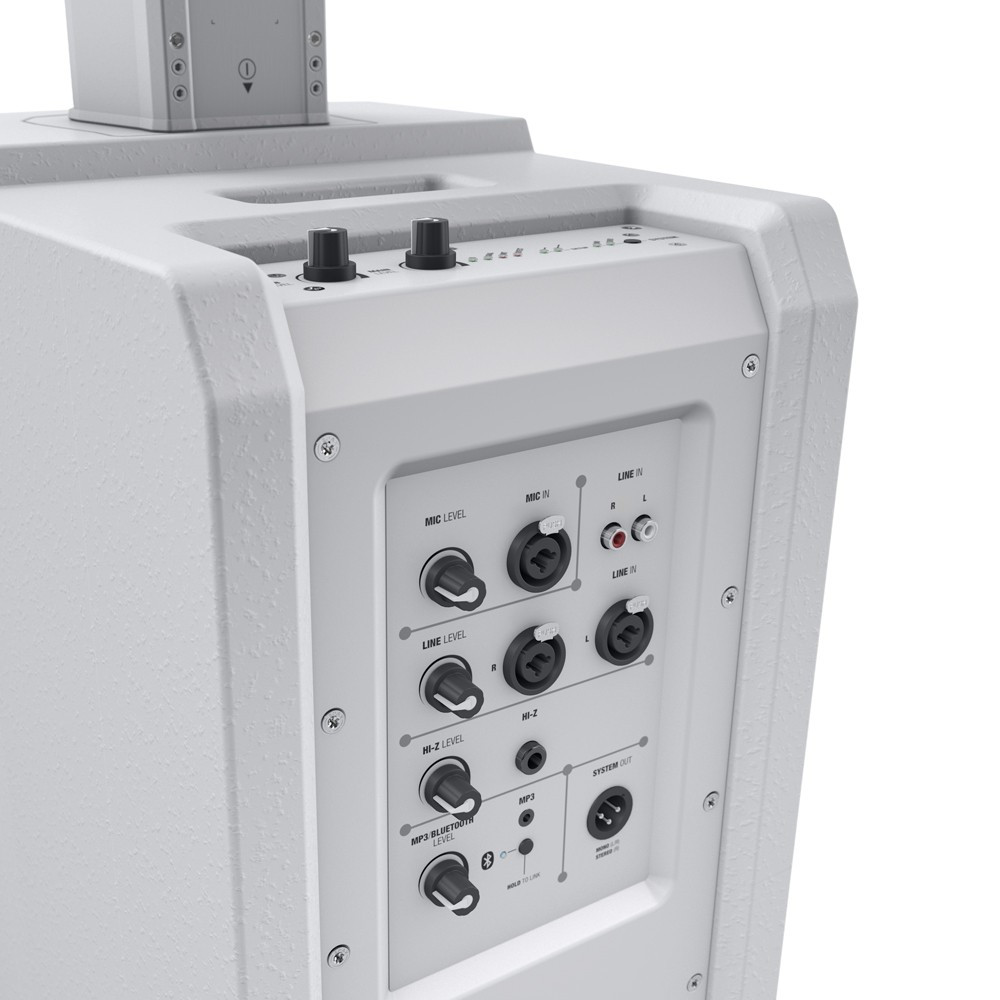

Line inputs: 2 x stereo
Line input connectors: RCA, XLR/6.3 mm jack
Line outputs: 1 x direct out
Line output connectors: XLR
Mic inputs: 1
Mic inputs: XLR/6.3 mm jack
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm jack
Loudspeaker outputs: 1
Speaker output connections: Custom-made multipin
DSP Characteristics Bit depth AD/DA converter: 24 bit
Internal sampling frequency: 48 kHz
Signal/noise ratio: 100 dB
