The bass reflex cabinet of the 8" subwoofer base also houses the system's class-D amplifier unit with protection circuits against overcurrent, overheating and short-circuiting, LD Systems LECC digital signal processing, and a 4-channel mixer. Thanks to built-in Bluetooth? technology for wireless streaming alongside use of the microphone, line and high-impedance inputs, a wide variety of sound sources can be connected to the MAUI 5, including playback devices and instruments, such as keyboards or guitars. Separate level controllers, subwoofer and system volume controllers, and a high-shelf filter for adjusting treble to room acoustics ensure perfectly tuned performances. The MAUI 5 is also available in Black (LDMAUI5).

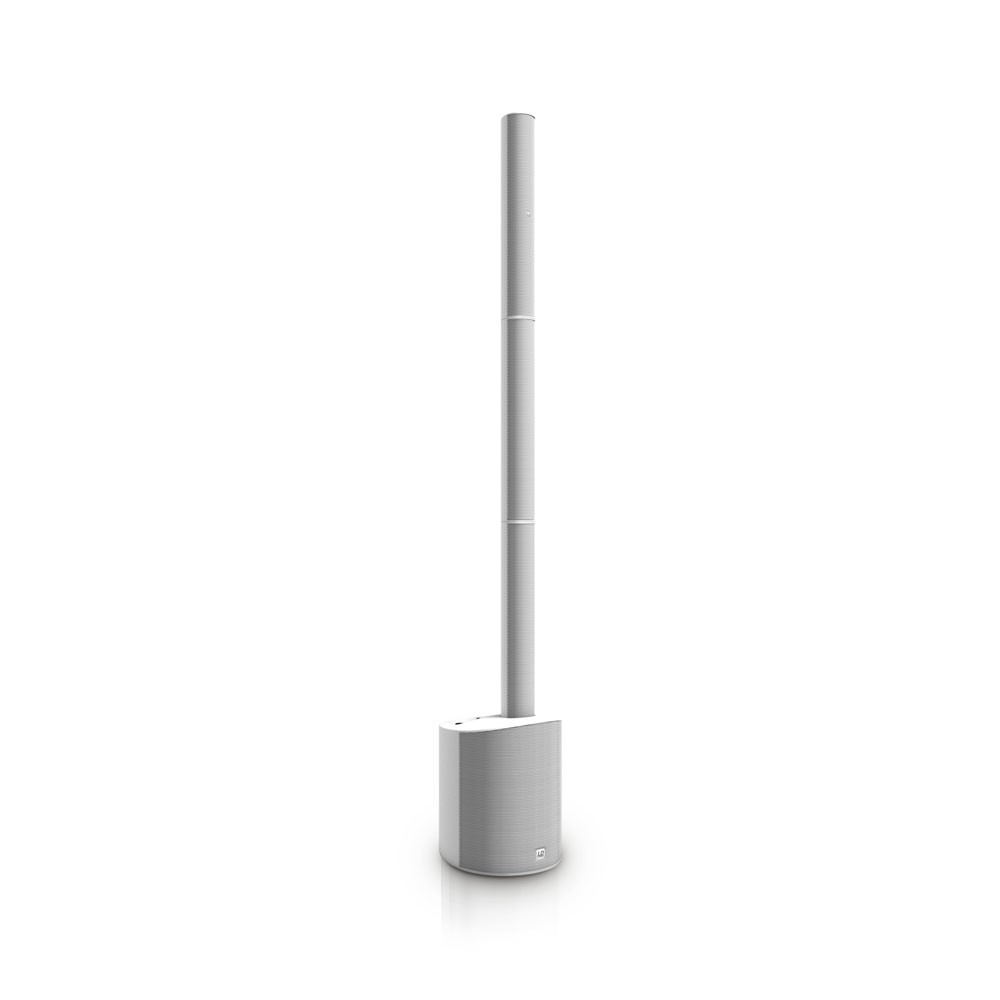

Features• Ultra-compact column PA
• PA and Monitor System in one
• 800 watts peak power
• Extensive and wide sound dispersion
• LECC digital signal processing for controlled, dynamic operation
• Integrated 4-channel mixer with Bluetooth
• Wide range of connection options

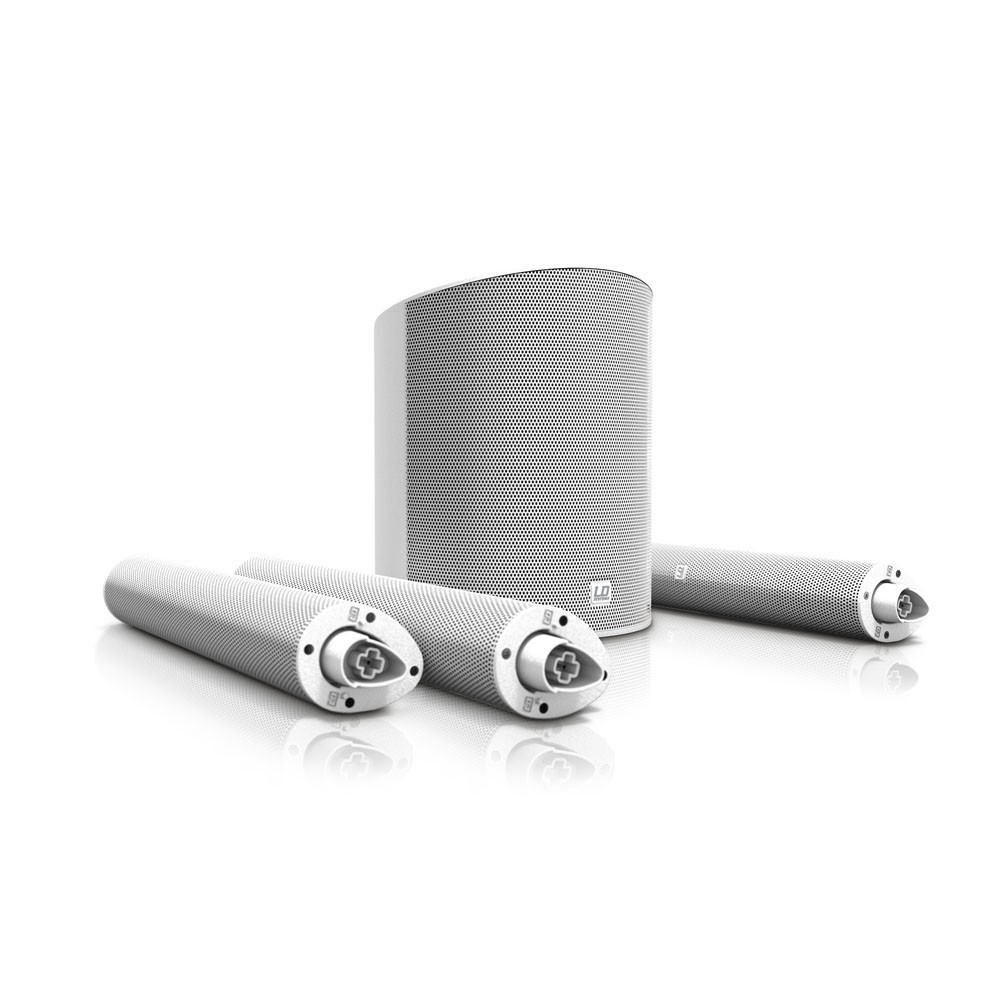

• Wireless assembly within seconds
• Extremely easy to transport
SpecificationsGeneralProduct type: PA Complete Systems
Color: White
Max SPL (continuous): 114 dB
Max SPL (peak): 120 dB
Frequency Response: 50 - 20000 Hz
Dispersion (H x V): 120 x 20
Other Features: 4 channel mixer, Bluetooth, DSP-based signal processing
Height: 24"
Width: 21"
Depth: 15"
Weight: 23 lbs
SubwooferWoofer dimensions: 8 "
Woofer size: 203.2 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2 "
Woofer voice coil (mm): 50.8 mm
Cabinet construction: Bass Reflex
Cabinet Material: ABS Plastic
Dimensions Subwoofer (W x H x D): 30500 x 405 x 395 mm
Mid/Hi SystemMidrange size: 4 x 3 "
Midrange size: 4 x 76.2 mm
Midrange magnet: Neodymium
Midrange brand: Custom-made
Midrange voice coil: 1 "
Midrange voice coil: 25.4 mm
Mid/Hi System Impedance: 40hm(s)
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: ABS Plastic
Mid/Hi system width: 82 mm
Mid/Hi system height: 535 mm
Mid/Hi system depth: 105 mm
Amplifier Module (integrated in sub)Amplifier: Class D
Amplifier output system (RMS): 200 W
Amplifier output system (peak): 800 W
Protection circuits: DSP-based multiband limiter- over-current, short curcuit, thermal overload
Cooling: Convection

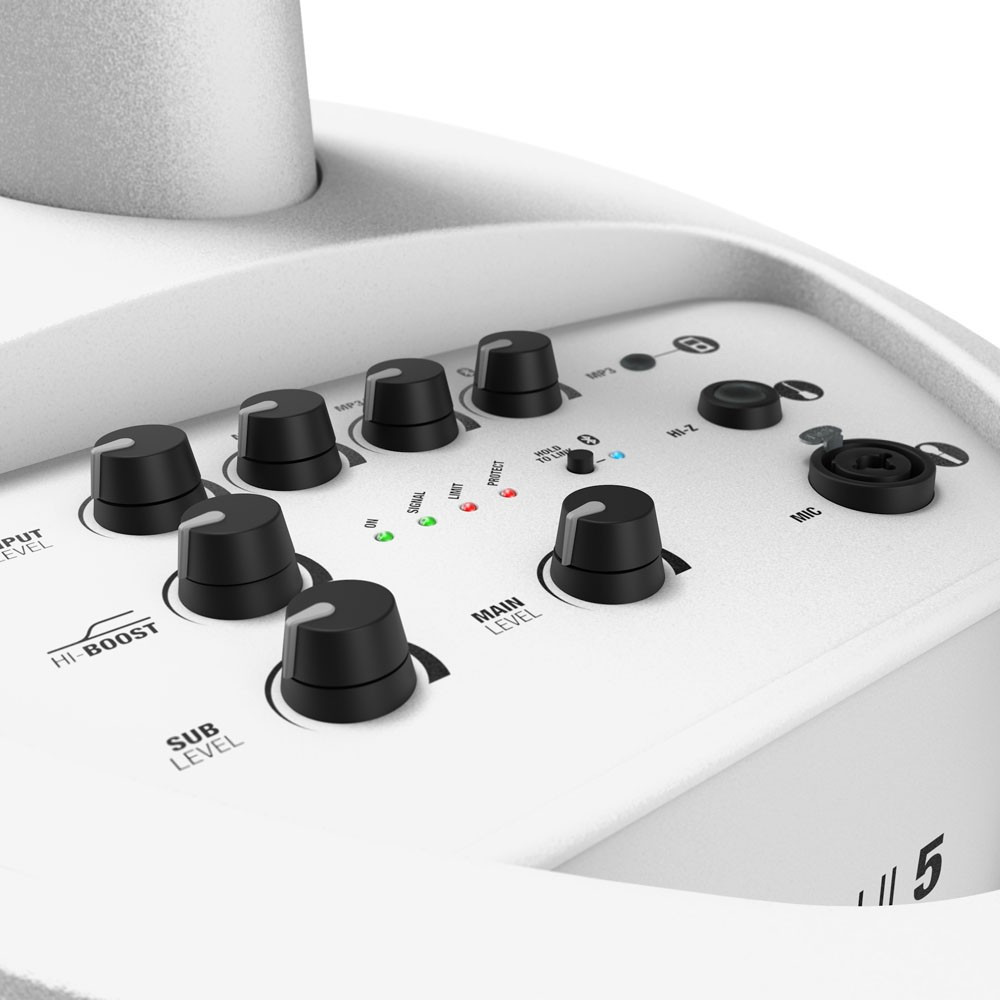

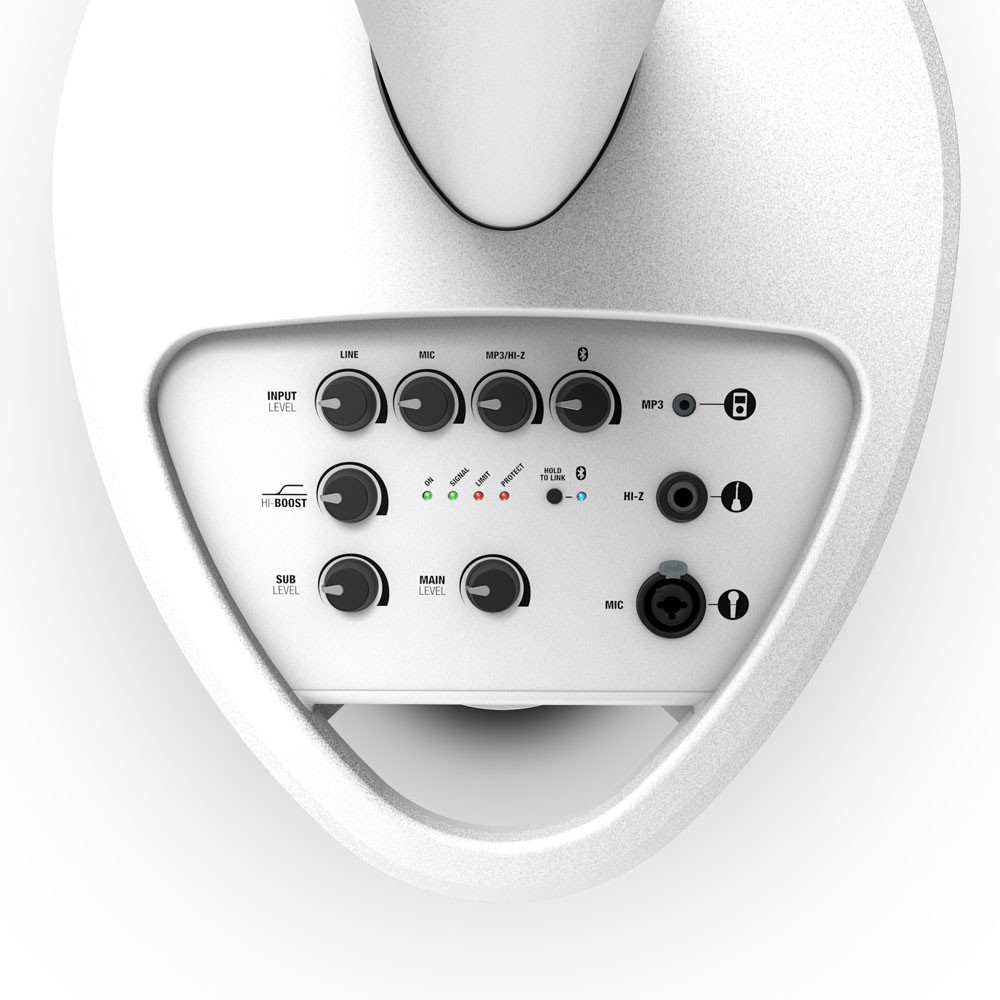

Controls: BT level, BT pairing, limiter, Line level, Main level, Mic level, MP3 / Hi-Z level, On, Protect (protection circuit engaged), Signal, Sub level
Indicators: Limit, On, Protect (protection circuit engaged), Signal
Operating voltage: Switching power supply
Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)

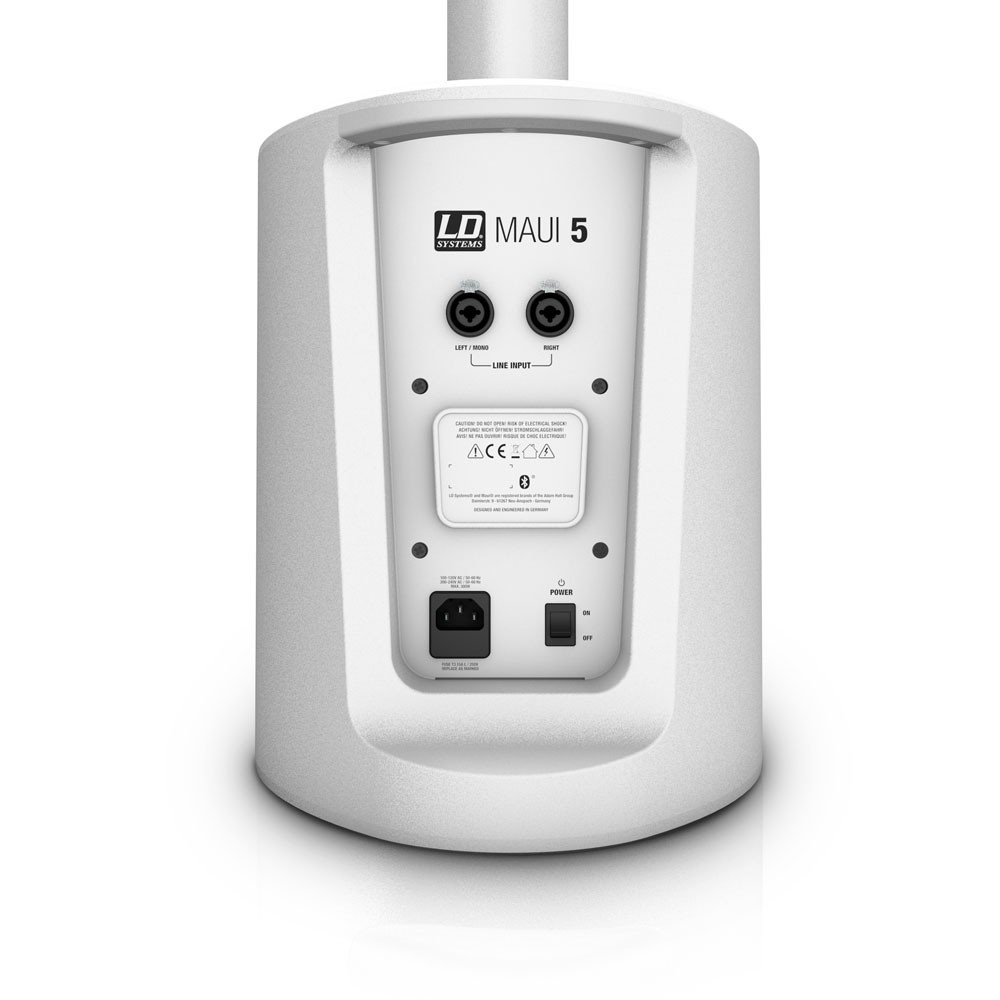

Line Inputs: 2 x stereo
Line Input Connectors: 6.3 mm jack, XLR
Mic inputs: 1
Mic inputs: 6.3 mm jack, XLR
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm jack
Loudspeaker outputs: 1
Speaker output connections: Custom-made multipin
DSP CharacteristicsBit depth AD/DA converter: 24 / 24 bit
Internal sampling frequency: 48 kHz
