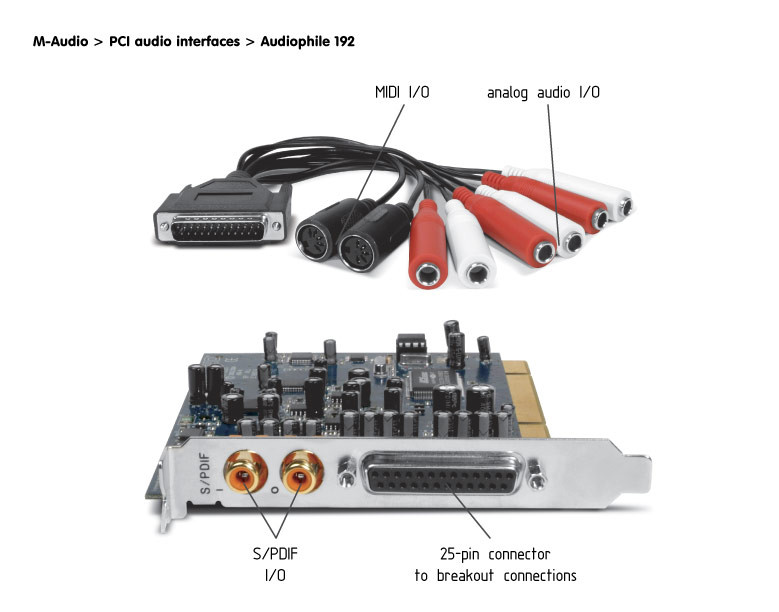

FEATURES:• Up to 24-bit/192kHz audio
• 2 balanced analog inputs (1/4" TRS)
• 2 balanced analog outputs (1/4" TRS)
• S/PDIF digital I/O (coaxial RCA connectors) with 2-channel PCM
• SCMS copy protection control
Digital I/O supports surround-encoded AC-3 and DTS pass-through**
• Direct hardware input monitoring via separate balanced 1/4" TRS monitor outputs
• Software routing of inputs and outputs
• Digital I/O can be routed to/from external effects
• 16-channel MIDI I/O
• ASIO, WDM, GSIF 2 and Core Audio driver support for compatibility with most applications
• 64-bit driver support for Windows
• PCI 2.2 compatibility
• Apple G5 compatible - Incompatible exceptions
• Includes Ableton Live Lite music production software, so you can make music right away
• Works with other Delta cards*
* check www.m-audio.com for current system requirements
** Windows XP required for Dolby Digital and DTS "pass-through"; Mac OS 10.3.4 required for Dolby Digital and DTS "pass-through" with Apple DVD Player
Compatibility• ASIO
• WDM
• GSIF 2
• Core Audio
Minimum System Requirements (PC)• Pentium 3 - 700 MHz, 256 MB RAM (192 and 96kHz operation)
• Pentium 3 - 500 MHz, 128 MB RAM (48kHz operation)
• DirectX 9.0b
• Windows XP (SP2)* or Windows 2000 (SP4) / Vista SP2 (32Bit , 64 Bit) / Win7 (32Bit , 64 Bit)
• Available PCI slot
* Home and Professional Edition only. Windows Media Center Edition is not supported.
Minimum System Requirements (Mac)• Macintosh G4 733 MHz
• 512MB RAM
• OS X 10.1.5, 10.2.8, 10.3.8, 10.4, 10.5.1
• Available PCI slot
SpecificationsGeneral• Sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
Main Inputs• Max input (balanced): +14.2dBu (4 Vrms)
• Max input (unbalanced): +14.2dBu (4 Vrms)
• Signal to noise ratio: -113dB @ 48kHz (A-weighted)
• Dynamic range: 113 dB @ 48kHz (A-weighted)
• THD + N: 0.0006%, 1kHz, -1dBFS @ 48kHz
• Frequency response: +/-0.1dB, 20Hz to 20kHz @ 48kHz
• Crosstalk: -130dB, 1kHz, channel-to-channel
• Impedance (balanced): 20k Ohms
• Impedance (unbalanced): 10k Ohms
Main Outputs• Max output (balanced): +14dBu (3.9 Vrms)
• Max output (unbalanced): +8dBu (1.95 Vrms)
• Signal to noise ratio: -108dB @ 48kHz (A-weighted)
• Dynamic range: 109dB @ 48kHz (A-weighted)
• THD + N: 0.0023%, 1kHz, -1dBFS @ 48kHz
• Frequency response: +/-0.1dB, 20Hz to 20kHz @ 48kHz
• Crosstalk: -105dB, 1kHz, channel-to-channel
• Impedance (balanced): 300 Ohms
• Impedance (unbalanced): 150 Ohms
