MConnection MC100NP VJ Video Triple Screen Monitor, New

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

m-connection mc100np   new

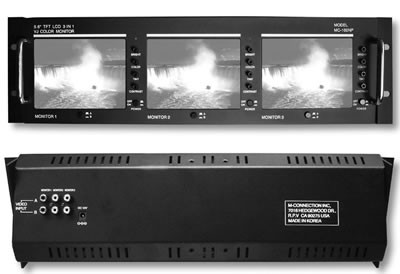

The MConnection MC100NP is a high-quality triple screen LCD panel system, designed for monitoring VJ, video or broadcast applications. And the quality and features outperform many other models in the field. Rather than the standard 5" screens commonly available, the MC100NP offers three 5.6" screens. Since screen size is measured diagonally, this actually results in almost a 25% increase in visual space... you'll definitely see the difference! Also important, each screen has its own contrast, brightness, color and tint control as well as source switch, so that you can use each screen to view two different sources. Lastly, the screens are mounted in solid, steel chassis (not plastic.) It is designed to be rack mounted (it can be tilted while in the rack if desired) or elevated up above your other equipment for better viewing using the optional SP100 stand,

FEATURES:
* SIX COMPOSITE INPUTS
* LARGE 5.6" SCREEN
* SEPARATE ADJUSTMENT CONTROLS FOR EACH SCREEN
TECHNICAL SPECIFICATIONS:
* DISPLAY TYPE: TFT LCD x 3 SCREENS
* LCD RESOLUTION: 960 (W) X 234 (H)
* LCD SCREEN SIZE: 5.6" (DIAGONAL) x 3 SCREENS
* LCD ACTIVE AREA (MM): 113.3 (W) x 84.7 (H)
* LCD DOT PITCH: 0.118 (W) x 0.362 (H)
* COLOR SYSTEM: NTSC/PAL AUTO DETECTION
* USER CONTROL: BRIGHT, COLOR, TINT, CONTRAST (PER SCREEN)
* INPUT TYPE: VIDEO INPUT X 2 (PER SCREEN)
* INPUT JACK TYPE: RCA PIN PLUG
* INPUT VIDEO LEVEL: 1VPP AT 75 OHM
* POWER: INPUT VOLTAGE12V DC, 2A MAX
* AC POWER: 110-220v SINGLE POWER SUPPLY
MISCELLANEOUS
* RACK DIMENSION: 3U HIGH, 19" EIA RACK STANDARD
* ACCESSORY: RCA TO BNC ADAPTER
* OPTION: TILT, HEIGHT ADJUSTABLE STAND

Additional Information

UPC N/A
SKU MC100NP NEW
Manufacturer M-Connection
Product Condition New - On Clearance
Returnable No
