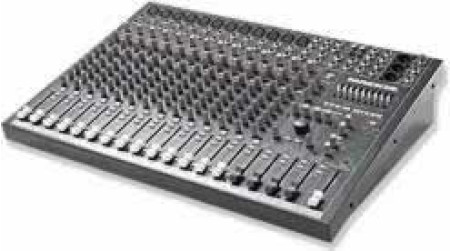

Clearly designed with live sound in mind, the CFX16 also makes an ideal mixer for a desktop studio where MIDI and audio signals need to be combined.
FEATURES• High-headroom mic preamps with RF rejection
• 16 channels (12 mic/line mono, and 2 stereo line channels)
• 32-bit EMAC(TM) digital effects with 9 reverbs, 4 delays, phaser, chorus, flange; 2 parameter controls + EFX wide spatial expander
• External and internal EFX sends
• EFX to Monitor control
• 9-band stereo graphic equalizer
• Inserts on all mic channels and main mix
• True 4-bus design with direct sub outs and L/R assign
• 2 Pre/Post Aux sends and internal/external FX level sends on each channel
• 3-band EQ with swept mid (100Hz to 8kHZ) on mic/line channels
• 4-band EQ on stereo line channels
• Pan, Mute, PFL solo on each channel
• Inserts and 100Hz low-cut filters on all mic/line channels
• Subwoofer output from built-in 18dB/oct. 75Hz crossover
• Ingenious BREAK switch
• Headphone output with level control
Tape/CD inputs with level control assignable to Main Mix via Break switch
• Logarithmic taper 60mm faders
• 48V phantom power
• 12V BNC lamp jack
