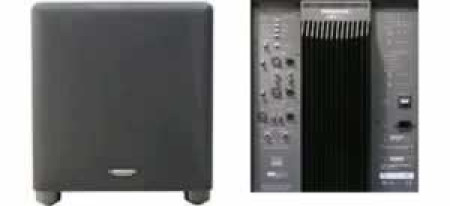

The Mackie HRS120 is a THX-approved, twelve-inch active sub-woofer that is ideal for applications where precise, low frequency reproduction and flexible monitoring and control options are required. The HRS120 is engineered to work in harmony with the HR824 and HR624.
The Mackie HRS120 Active Subwoofer is one of the most flexible, responsive, and cost-effective active studio sub woofers on the market today. The HRS120 is perfectly suited for professional recording studios and film/video surround post-production facilities that require extremely accurate bass extension to 19Hz and below. It is also an excellent choice for home theater surround sound installations. In addition to surround applications, the HRS120 can add more low-end presence and enhancement to project and professional studios in a standard stereo configuration. Either way, the HRS120 is a must-have for those customers seeking crisp, clear, detailed low-frequency enhancement for virtually any application.
APPLICATIONS• Professional Recording Studios
• Film (THX) & Post Production Studios
• Home Theater Installations
KEY FEATURES & BENEFITS• Active Technology
Benefit: Precise phase alignment
Benefit: Extremely low distortion
Benefit: Minimal chance of speaker damage due to overdriving
• Servo Loop Woofer Technology
Benefit: Output is as true to incoming signal as possible
Benefit: Extraordinarily high damping factors
Built-In, Front-Firing, Mass-Loaded Passive Radiator
Benefit: Clear, detailed low frequency enhancement
• User-Adjustable Controls
Benefit: Flexibility to adjust to wide range of user needs
SPECIFICATIONS:• Acoustic Performance
Free field frequency response 21Hz - 150Hz 1.5dB
LF cut-off frequency -3dB at 19Hz
Sound Pressure Level @1 meter, 7.5dBu into balanced input 100db SPL@1m
• Transducers
Low frequency 12-inch (305mm) RCF Precision, extended LF transducer with 4-inch voice coil and cast aluminum frame
Passive radiator 12"(305mm)
• Amplifier
Power 400 watts, 8 Ohm load (500 watts peak)
Slew rate >35V/s
Signal-to-noise ratio >107db, referenced to 350 watts into 8 Ohm
Distortion
THD/SMPTE/IMD/DIM100 <0.02%
Type FR Series Class AB
• Construction
Enclosure 3/4" (19mm) MDF with 1" (25mm) MDF front panel, internal H bracing
Damping Adibiatic foam
• Controls
Subsonic Filter flat/15Hz, 18dB/octave filter
Filter bypass In/full range (THX)
Filter Select Variable/110Hz elliptical
Polarity 0/180
Variable crossover 55Hz to 110Hz, 24dB/octave Linkwitz-Riley filter
• Product weight & dimensions (without packaging):
Height 21" (533mm)
Width 18" (457mm)
Depth 21.3" (541mm)
Weight 94 lbs (42.6 kg)
• Shipping weight & dimensions (with packaging):
Height 24.5" (622mm)
Width 23.75" (603mm)
Depth 26.25" (667mm)
Weight 105 lbs (47.63 kg)
