Mackie HRS-150 Active 15 Studio Subwoofer (EACH)

mackie hrs150
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon

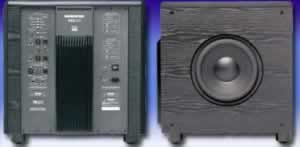

The HRS150 active subwoofer has a 15-inch downward firing woofer and two side-firing 12-inch passive radiators. Powered by 950 watts of low-distortion Mackie Active Amplification, the sub provides a tight and accurate response with high output. A power supply tracking peak limiter protects the transducer and ensures long-term reliability for the most extreme subwoofer requirements.

The HRS150 is THX PM3 approved and provides simple switches for THX low cut filter and LFE gain allowing accurate THX mixing and monitoring. Additional filter options allow for AC-3 and DTS applications.

XLR and RCA input and output connections provide easy compatibility with professional and consumer systems. Left and Right inputs are provided for a 24 dB per octave variable crossover ranging from 55 - 110 Hz allowing the sub to match crossover points with any main monitors on the market today! The unique footswitch option allows for convenient monitoring of mains and a sub with crossover, or mains at full range with no sub.

The 950-watt HRS150, which joins the HRS120 subwoofer in the Mackie HR Active Studio Monitor family, is meant to provide a sub for more demanding low-end mixes. For example, it is ideal for house, hip hop and rap music that has an extended low end content. The HRS150 is the excellent choice for rooms where louder mixes and accuracy need to be achieved at very low frequencies. Because of its great size and immense power, this sub is also ideal for bass management when asked to reproduce the low frequency energy of all the mixing channels. The HRS150 fits perfectly with the other members of the Mackie HR Active Studio Monitor family in studio monitoring or home theater applications.

• Recording studio 5.1 or 7.1 surround monitoring
• Mid- to large-sized recording studios
• High-end home theater systems
• Post production environments
• 15" Woofer and 950-Watt Amp
• Provides response down to 20 Hz
• Provides output levels up to 122 dB
• Flexible I/O and Variable Crossover
• I/O allows integration with professional and consumer grade equipment
• Variable crossover allows for compatibility with wide range of main monitors
• Dual 12" Passive Radiators
• Extended low-frequency response
• Very low distortion at high output levels
• Power Tracking Peak Limiter
• Protects 15" woofer from damage
• Provides for long-term reliability

• Low-frequency driver
• Diameter 15 inches (381 mm)
• Sensitivity 96 dB SPL (1 W, 1 M)
• Nominal Impedance 8 ohms
• Voice Coil Diameter 4 inches (100 mm)
• Power Handling (Long Term/Program) 400/1000 watts
• Frequency Range 20Hz to 500Hz
• Frame Die Cast
• Magnet Ferrite
• Passive Radiators (2)
• Diameter 12 inches (305 mm) mass-loaded
• Crossover Type Linkwitz-Riley, 24 dB/octave, variable 55 Hz to 110 Hz
• Input Type Balanced Differential (XLR), Unbalanced (RCA)
• Input Impedance 20 k ohms (Bal), 10k ohms (UnBal)
• Input Sensitivity 89 dB SPL with 100mV (-17.8 dBu) input signal level (LFE gain set to 0 dB)
• Input Protection RFI and Level Protected
• Maximum Input Level +20 dBu
• Signal Sense Threshold -74 dBu (0.155 mV)
• High-Cut Filter (LFE) 110 Hz, 7th-order Elliptical Filter
• Subsonic Filter 15 Hz, 3rd-order Butterworth HPF
• Output Type Balanced (XLR), Unbalanced (RCA)
• Output Impedance 240 ohms (Bal), 120 ohms (UnBal)
• Over-Excursion Prevention Subsonic Filter (Flat Position: 2nd-Order HPF, 15Hz Position: 5th-Order HPF)
• Driver Protection Power Supply Tracking Peak Limiter
• Thermal Protection Heatsink and Transformer Temperature, Auto Reset
• Acoustic Frequency Response 20 Hz to 150 Hz, 1.5 dB
• -3 dB points 19 Hz, 250 Hz
• Maximum SPL 122 dB @ 1 meter
• Residual Noise <8 dBa SPL
• Rated Power Output (1% THD at 100 Hz) 950 watts rms into rated 8 ohms load
• Peak Power Output (100 Hz sine, per RS-490) 1050 watts
• THD (20 Hz to 300 Hz from 1 W to -1 dBr = 750 W) <0.05% (typically 0.007%)
• Rated Load Impedance 8 ohms
• Signal-to-Noise Ratio 107 dBr (0 dBr = 750 W)
• Power Bandwidth (at 750 W) -0.5 dB at 10 Hz
-3.0 dB at 55 kHz
• Damping Factor (referenced to 8 ohms) >1000
• Turn-On Delay 3-4 Seconds
• Cooling Convection
• Line Input Power
US 120 VAC, 60 Hz, 950 W

Europe 240 VAC, 50 Hz, 950 W

Japan 100 VAC, 50-60 Hz, 950 W

Korea 220 VAC, 60 Hz, 950 W

Physical Properties
Materials 0.75" MDF construction with black oak veneer

Internal Volume 3.88 cu ft (110 liters)

Height (w/feet) 24 inches (609 mm)

Width 23.7 inches (601 mm)

Depth 23.6 inches (599 mm)

Weight 117 lbs (53 kg)

Operating Temperature Range -10C to 30C
