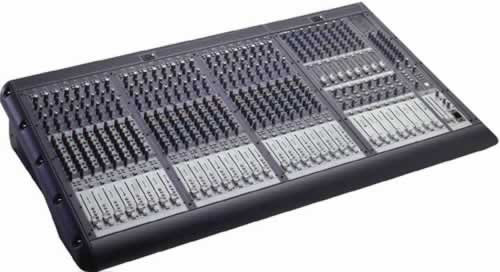

Scheduled to ship in early Q2, 2005, the new Onyx 80 Series benefit from much of the technology developed for Mackie's successful Onyx small-format analog mixers introduced in 2004.
FEATURES:Channel Strip Features: • Premium Onyx microphone preamps on every channel • 4-band Perkins EQ with hardware bypass • 48V Phantom Power, Mic/Line, 100Hz High-pass, and Polarity switches • 8 Auxiliary sends with Pre/Post switches • Auxiliary Send Stereo Link feature for IEM applications • Direct Outputs on DB-25 connectors (8 channels per connector) • 4 segment LED level indicators • Smooth, long-throw 100mm faders • Mute, and PFL Solo switches • Balanced XLR mic and 1/4" line inputs, plus 1/4" insert jack
Master Section Features: • 8 Stereo Aux Inputs w/ 60mm faders, 4-band • 8 Auxiliary Send Masters with balanced 1/4" output, 1/4" insert, Mute and AFL Solo • 8 Groups with 100mm faders, balanced 1/4" output and " insert, Main Mix assign, Pan, Mute, AFL Solo and 4-segment LED meters • 8 Aux Master / Group Flip switches • 10 In x 2 Out Matrix with balanced -inch outputs • 4 Mute Groups • Balanced XLR Talkback Mic input with routing to all Aux Sends, Groups and Main Mix • Dual 100mm Main Mix faders • Phones / Monitor section with Solo, Monitor and Phones level • Main Mix to Monitor / Phones switch • Big pair of 12-segment tri-color LED meters dedicated to Main Mix and Solo levels • Power Indicator LEDs for +15V, -15V, +48V and +12V power supply rails • Rude Solo Indicators for AFL and PFL
