Ever wonder how touring loudspeaker systems can cover an audience of thousands with high-output, high-quality sound? In addition to the knowledgeable experts who design and tune these systems, the secret is that these loudspeaker systems employ "arrayable" cabinets with multiple drivers; large, wide-dispersion horns; and subwoofer stacksall configured to match the requirements of each venue.

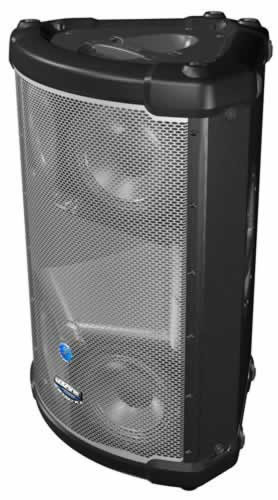

Features 4 x 8" LF drivers in unique Tetrad alignment offer wide low-frequency dispersion and enhanced transient response
1" exit HF driver on an oversized 75 x 40 horn provides superb coverage and high-frequency definition; 2 vertically arrayed enclosures provide 150 coverage
Pole mountable on commercially available speaker stands
Symmetrical Trapezoidal design allows for monitor wedge applications
Stackable atop S410s Precision Passive Subwoofer
Flyable both horizontally and vertically via 12 integrated 3/8" threaded inserts
Portable with 4 balance-optimized top and side-mounted handles
Dual parallel, locking NL4 connections for Input and Thru on rear panel
Thermal Overload HF driver protection
Sensitivity: 99dB SPL (1W/1m)
600W RMS power handling at 8 Ohms
Frequency Response: 60Hz-22kHz
