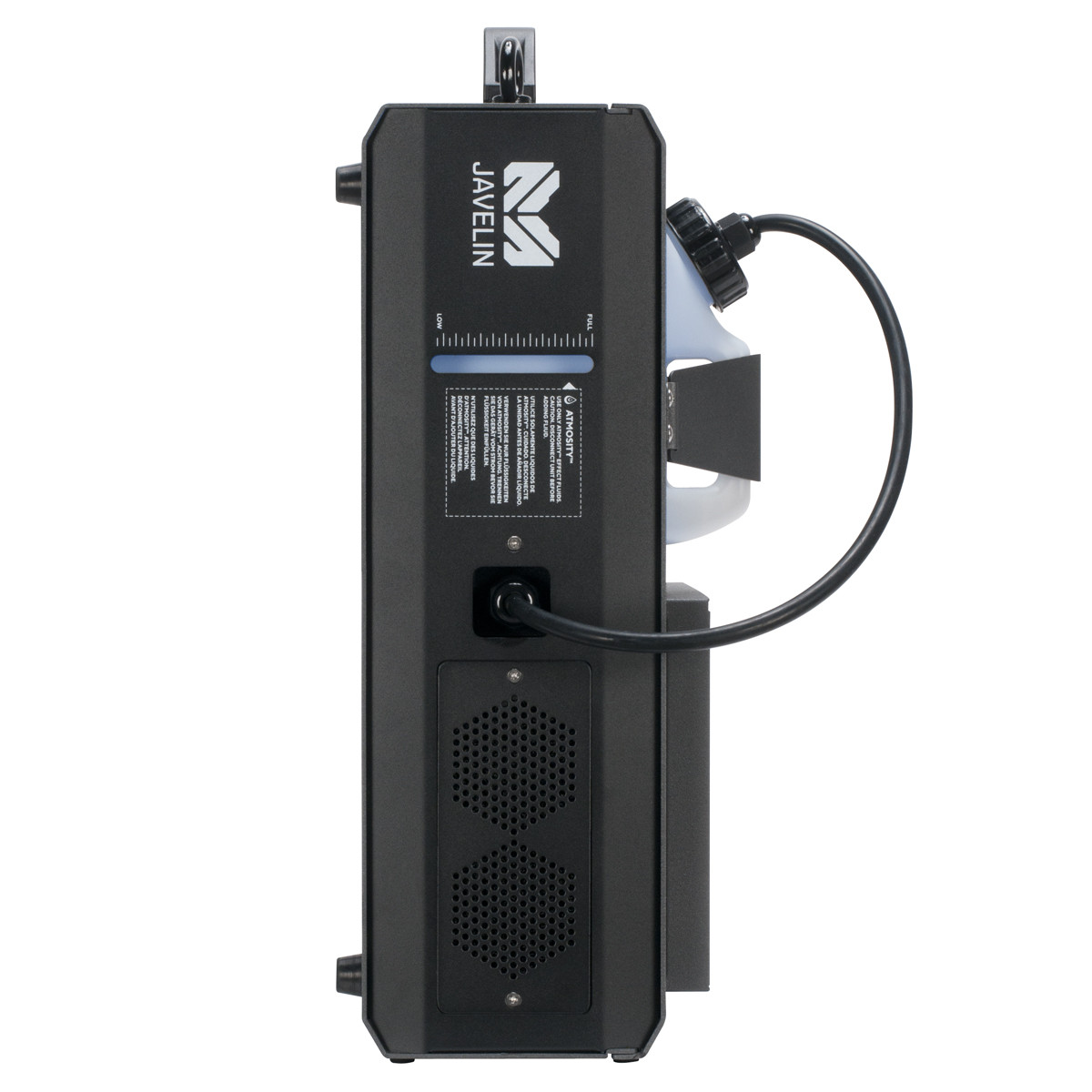

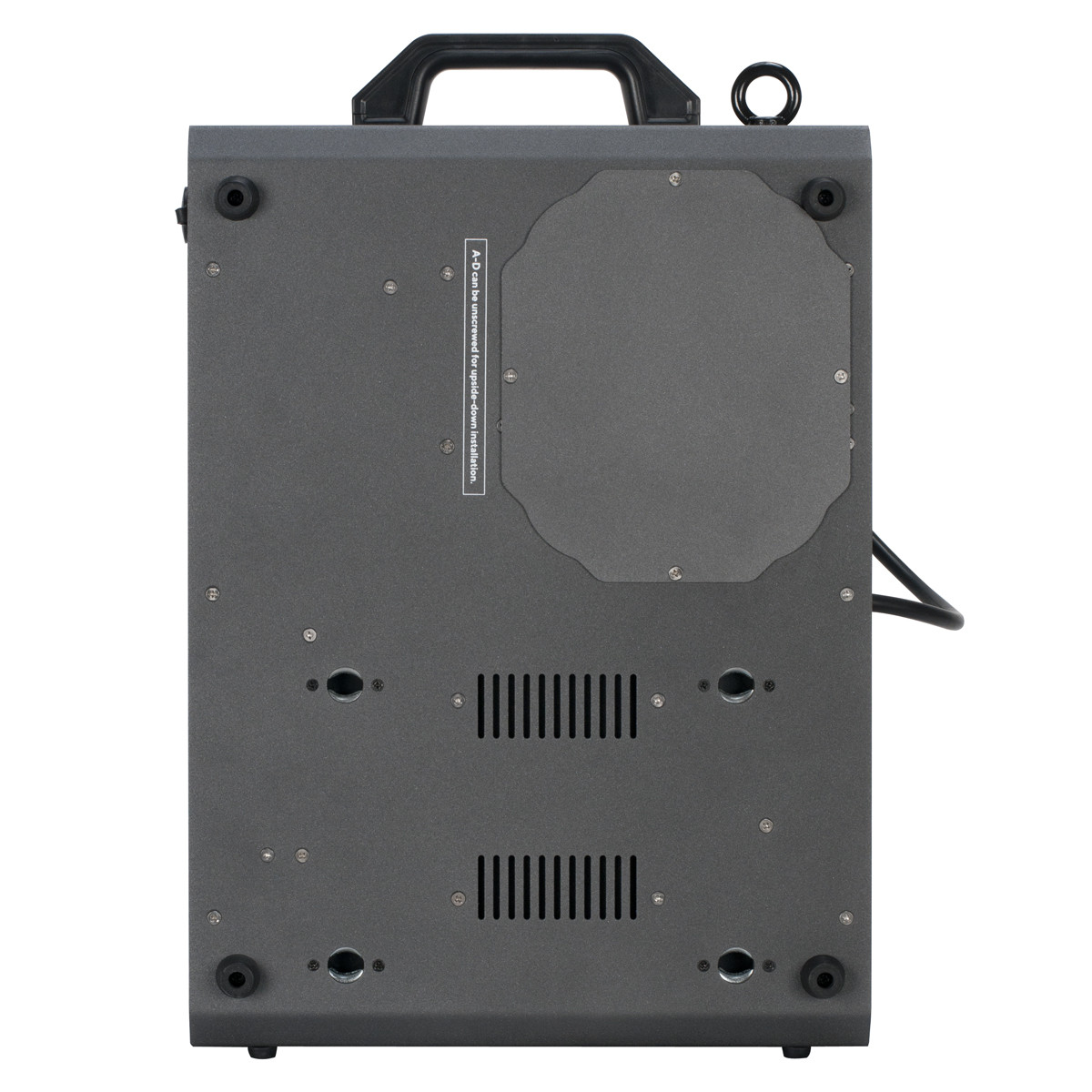

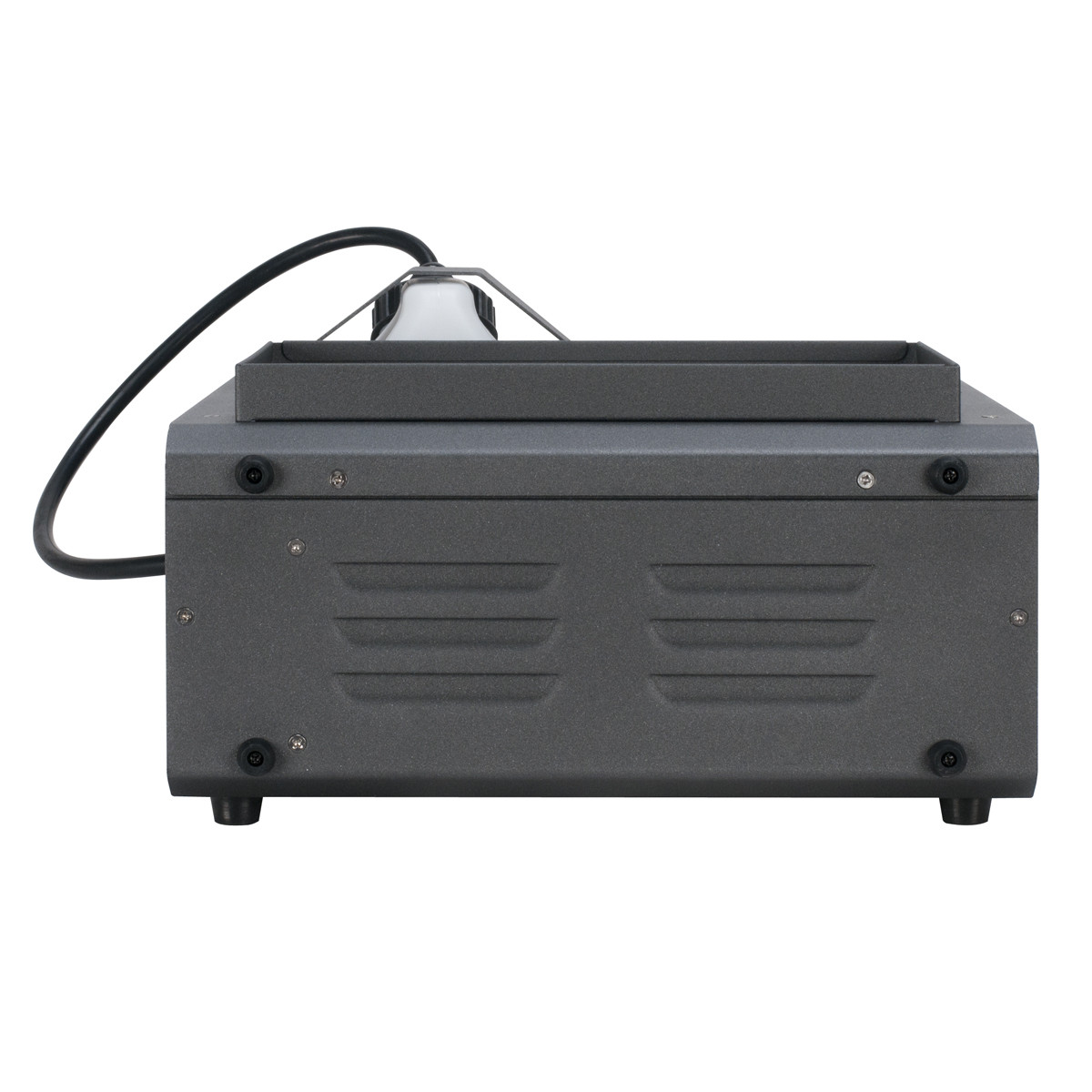

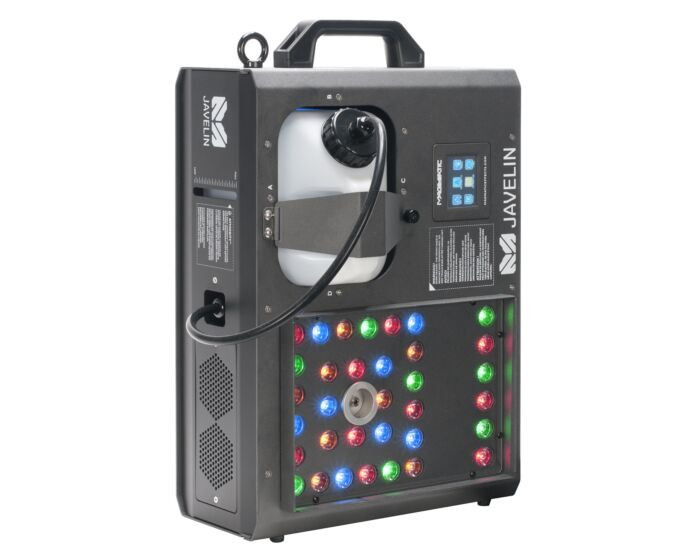

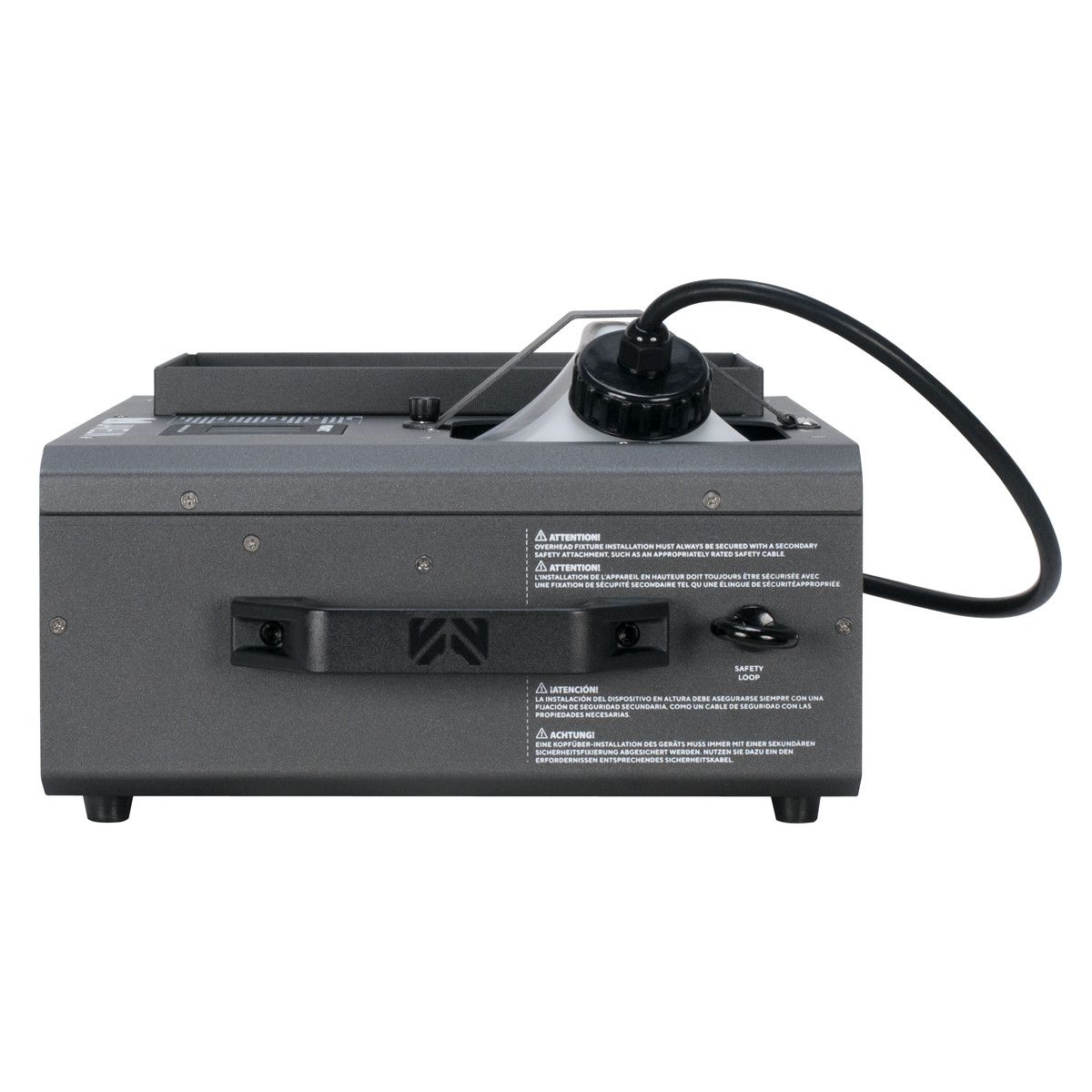

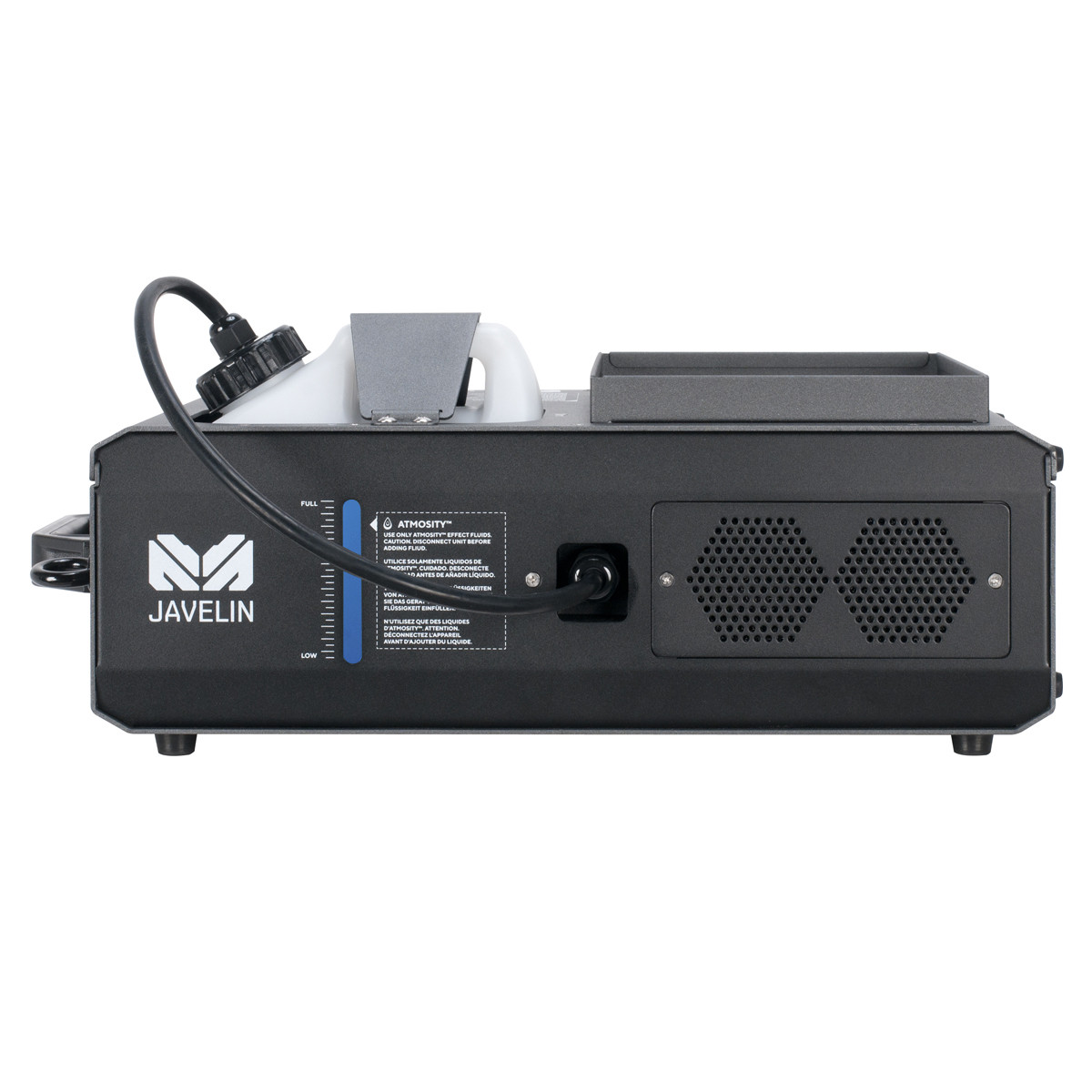

A member of Magmatic's Rocket series of CO2 cryogenic simulation effects, the Magmatic Javelin' is a high-velocity CO2 simulator fog machine for high-impact moments. Featuring 34 x 2-watt RGBA LEDs for throws of dynamic colored effect, the Javelin can rotate 90-degrees for horizontal or vertical bursts of fog.
Wrapped in a durable aluminum housing, the Javelin is intuitively controllable via DMX-512 and RDM and houses an easy-to-use onboard LCD touch screen control panel. Wired and wireless remote control options are available.
• High-velocity CO2 simulator fog machine
• Four, 10-second 20-ft bursts
• Vertical and horizontal bursts of fog
• 34 x 2-watt RGBA LEDs
• Durable tour-ready aluminum housing
PERFORMANCERated Power: 1450W
Max Output: 50,000 CFM* (cu ft/min.)
Fog Burst (Distance): 5-6m / 3 sec.
Ready Time: Initial = 9 Minutes*
Fluid Capacity: 0.66 gallons (2.5 liters)
Fluid Consumption: 6.09 oz/min (180 ml/min) *approximate
Max Continuous Output Duration: 8 Seconds
COMPATIBLE FLUIDAtmosity Flash Fog Fluid (AFF-4L)
Atmosity Extreme Filtered Fog Fluid (AEF-4L)
CONSTRUCTIONThermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design
CONTROL4 DMX Channel Modes (1 / 4 / 7 / 12)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MagFLY Wireless Module (See Accessories)
Optional RF Wireless Module and Remote (See Accessories)

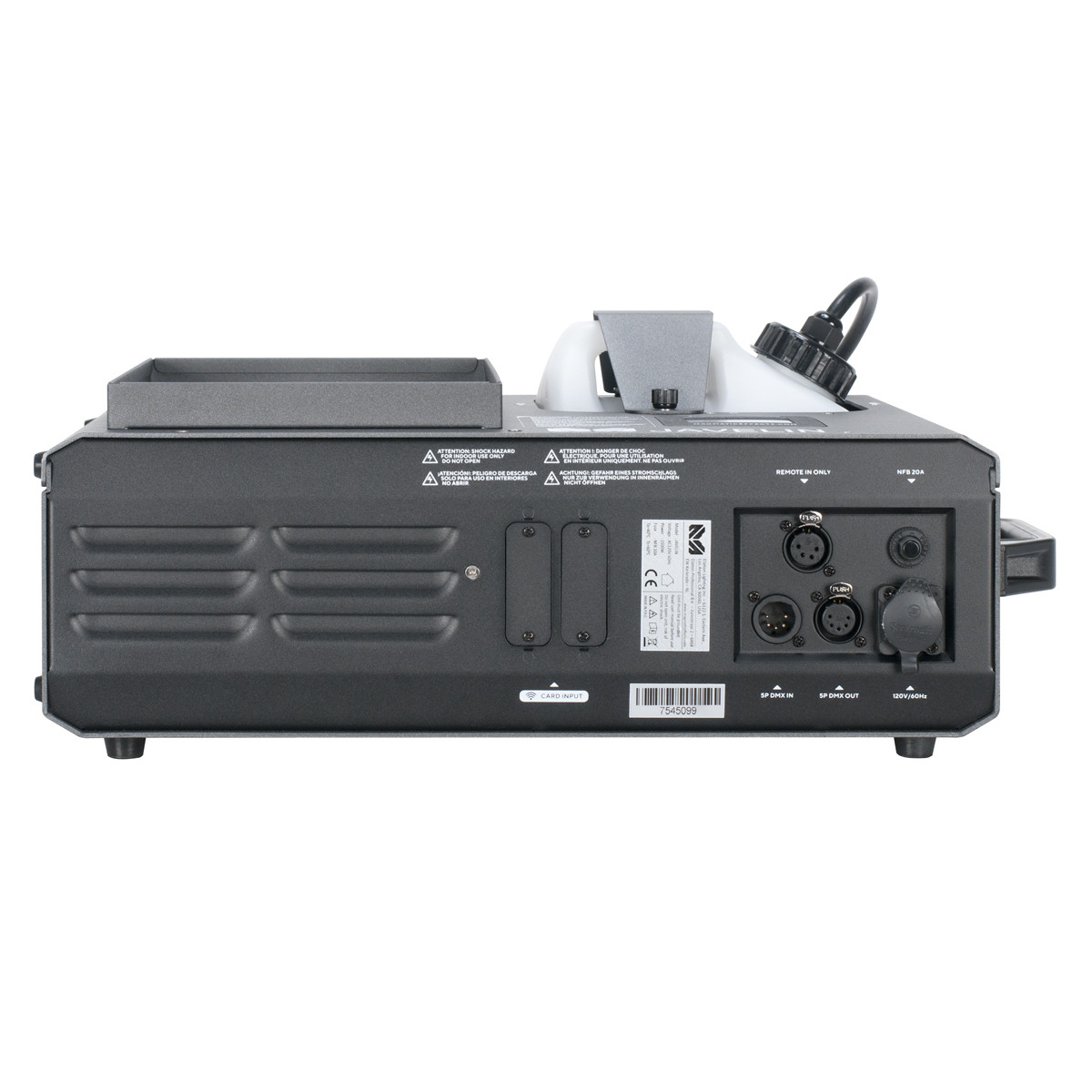

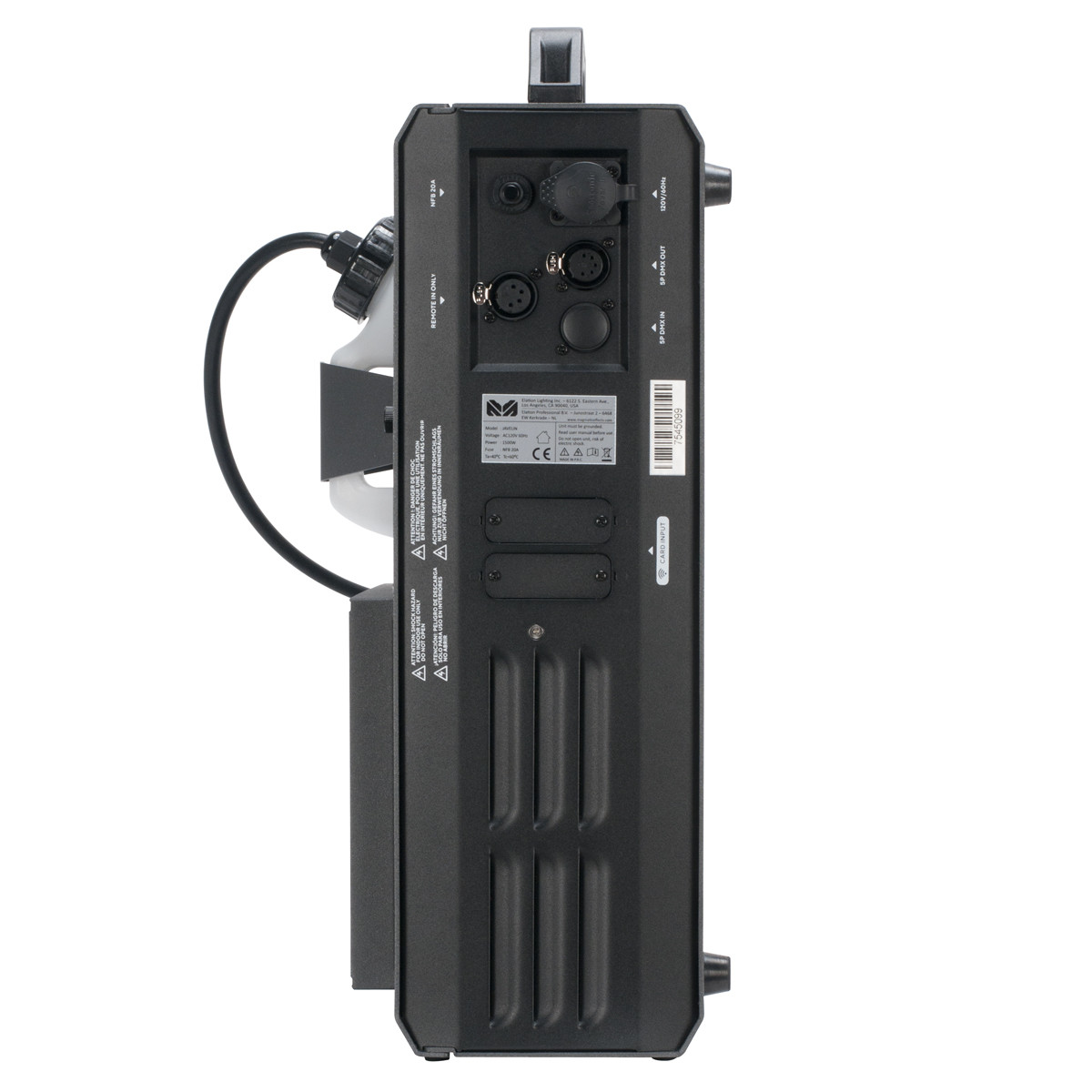

CONNECTIONSLocking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHTLength: 15.0 in. (380mm)
Width: 7.7 in. (195mm)
Height: 19.1 in. (484mm)
Weight: 28.66 lbs. (13kg)
ELECTRICALAC 120V 60Hz, 230V 50Hz
NFB: 20A (120V Version) 10A (230/240V Version)
Max Power Consumption: 1500W
THERMALMaximum Ambient Temperature (Ta max) 104F (40C)
Exterior Surface Temperature, Steady State: 140F (60C)
ACCESSORIESMagFLY (MSR934) Wireless DMX Transceiver Module
MagRF (MSR912) RF Module and Wireless Remote
Omega Rigging Bracket x2 (SY2504F-B20)
APPROVALS / RATINGSCE | cETLus | IP20
