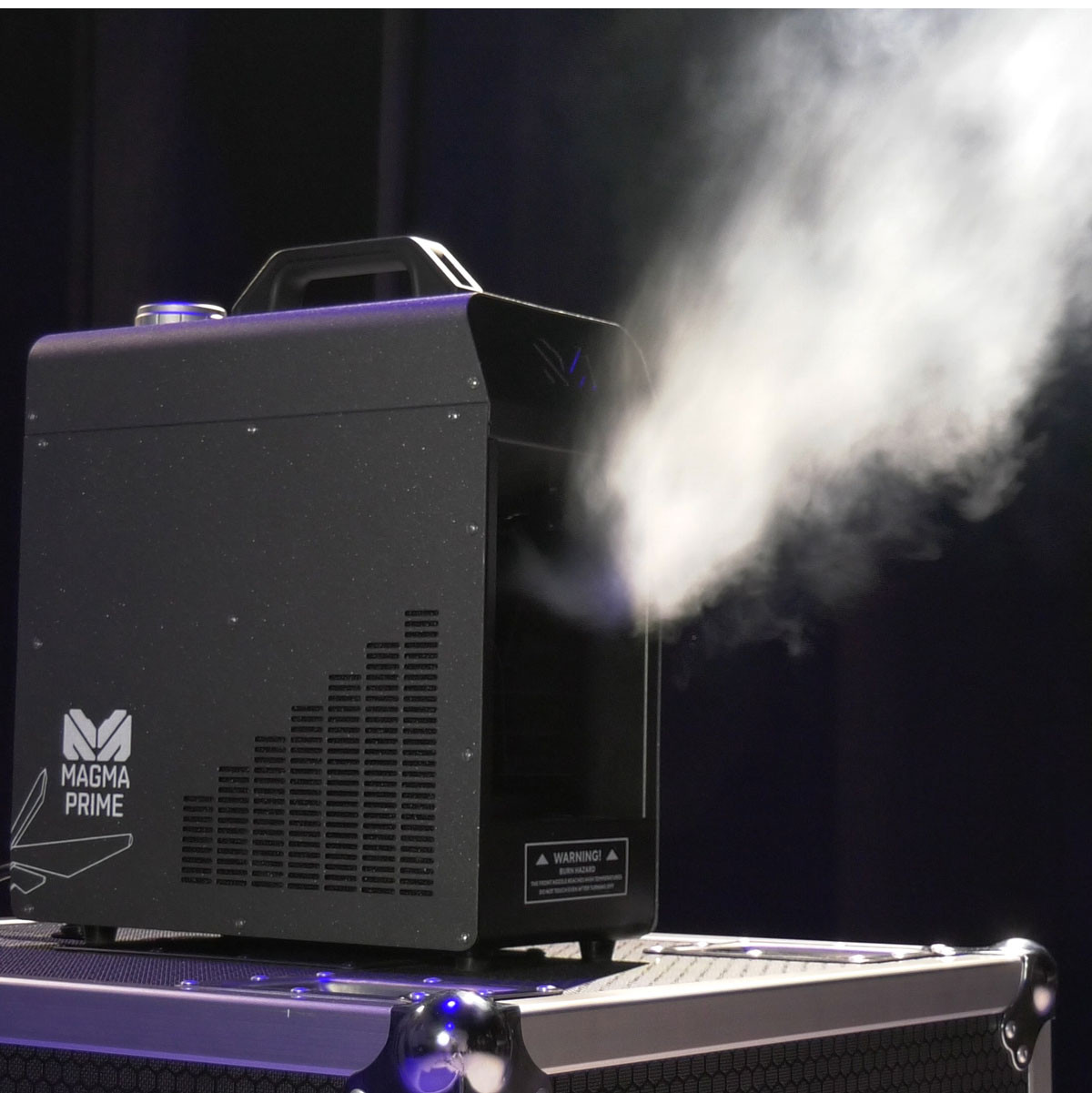

MAGMA PRIME' is a water-based fazer with advanced technology providing a high volume dry haze effect with low fluid consumption. The new HPA (high pressure air) pump technology reduces the risk of heater clogging.
Features includes a self-cleaning and energy-saving "Sleep" mode, an easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.
• 700W Water-Based Fazer
• 4,000 CFM* (cu ft/min.) (113 m3/min*) Output
• Advanced HPA (high pressure air) Pump Technology
• Energy Saving Mode with Auto-Clean Process
• Compact Light Weight Robust Design
• Onboard LCD Touch Control Panel
• Optional MAGFLY Wireless DMX Transceiver
• Optional MAGRF Wireless and Wired Remotes
*approximate
Performance:Rated Power: 700W
Max Output: 4,000 CFM* (cu ft/min.) (113 m3/min*)
Ready Time: Initial = 6 Minutes*
Fluid Capacity: 0.345 gallons (1.3 liters)
Fluid Consumption: 0.115 oz/min (3.4 ml/min)
*approximate
COMPATIBLE FLUIDAtmosity Extreme Filtered Fog Fluid (AEF-4L)
CONSTRUCTIONThermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design
CONTROL3 DMX Channel Modes (1 / 3 / 5)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes
CONNECTIONSLocking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHTLength: 13.3 in. (338mm)
Width: 6.30 in. (160mm)
Height: 15.70 in. (400mm)
Weight: 22.48 lbs. (10.2kg)
ELECTRICALAC120V 60Hz (US Version)
AC230V 50Hz (EU Version)
9A @ 120VAC(NFB)
5A @ 230VAC - 240VAC
Max Power Consumption: 720W
THERMALMaximum Ambient Temperature (Ta max) 104F (40C)
Exterior Surface Temperature, Steady State: 122F (50C)
APPROVALS / RATINGSCE | cETLus | FCC | IP20
California Prop 65 -
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
