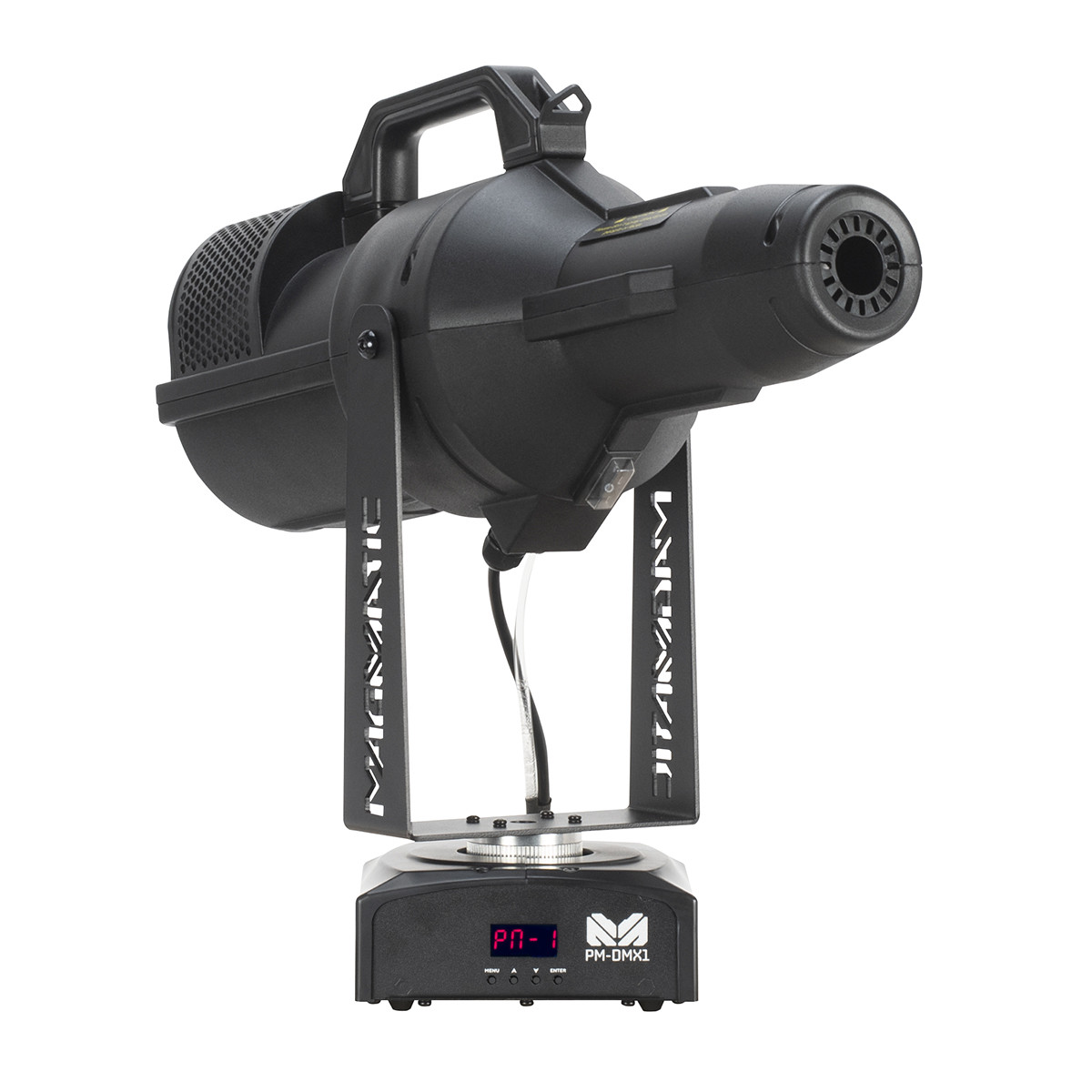

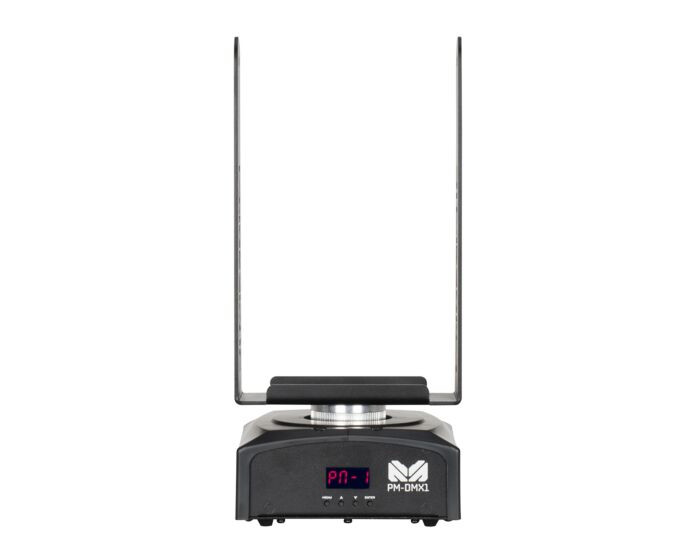

Magmatic PM-DMX1' is an optional pan motor accessory for the Magmatic Crisp Max' Snow Machine. Install the output nozzle of the Crisp Max, using the included mounting bracket, onto the PM-DMX1 to precisely control 120 degrees of pan movement via DMX-512 or manually using the 4-button LED control panel menu display on the unit
The PM-DMX1 features 2 DMX channel modes, 0-120 degree position index movement and 3 different degree internal auto-pan programs (60, 90, 120) each having 5 speed settings, a pan inversion mode which inverts the pan movement, primary / secondary modes, 5pin DMX in/out for easy control connection and linking multiple units, an included mounting bracket that better balances weight distribution of the Crisp Max nozzle unit, mini-omega bracket so PM-DMX1 can be clamped and /truss mounted, and a 100-240V auto switching power supply.
Features• 120 Degrees of Pan Movement
• Manual and DMX-512 Control
• 2 DMX Channel Modes
• Primary/Secondary Modes
• 60, 90, 120 Auto-Pan Programs
• 5 Auto-Pan Program Speeds
• Pan Inversion Mode
• Holds up to 35lbs.
• Includes Mounting Bracket for Crisp Max Nozzle

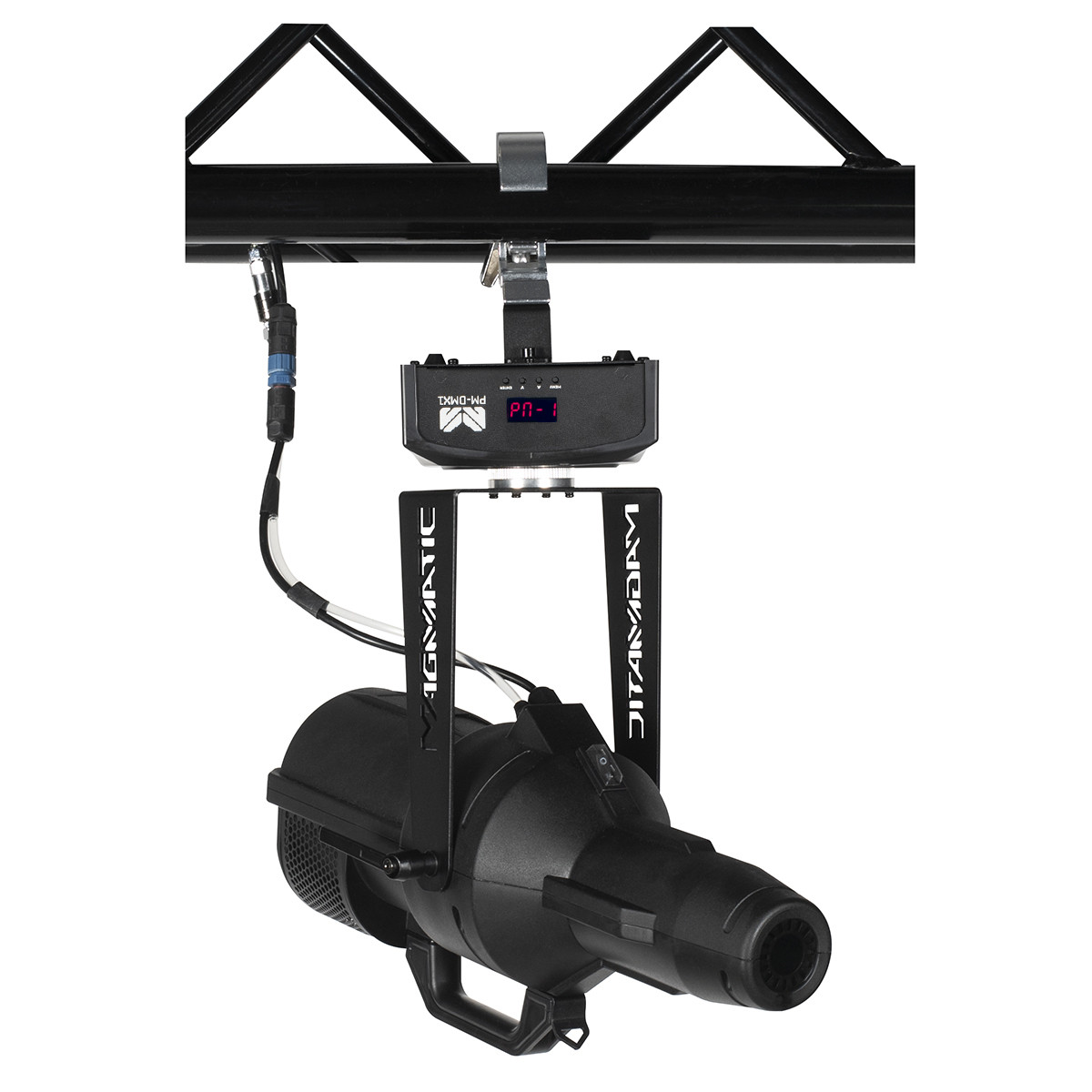

• Includes Omega Bracket for clamp / truss mounting
SpecificationsControl/Connections• Manual and DMX-512 (2 channel modes)
• 0-120 Pan Movement
• Pan Inversion Mode
• Primary/Secondary Mode
• Auto-Pan Programs and Varying Speeds
• 4-Button Control Panel
• LED System Menu Display
• 5pin DMX In/Out
• AC Power Plug
Electrical• AC 100-240V 50/60Hz
• 11W Max Power Consumption
DimensionsLength: 5.8" (147.0mm)
Width: 6.4" (162.0mm)
Vertical Height w/ Bracket: 14.2" (361.5mm)
Weight w/ Bracket: 4lbs. (1.8kg)
Approvals/RatingsCE | IP20 | cETL (Pending)
California Prop 65 -
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
