PRISMA DRIVER 8IP' is an easy to use 48VDC, IP65 protected, driver system which provides individual DMX-512 control including variable delayed time dimming modes for up to (8) PRISMA MINI UV LED series fixtures including the PRISMA MINI PAR 20', PRISMA MINI PAR 45' and the PRISMA MINI BAR 20'.

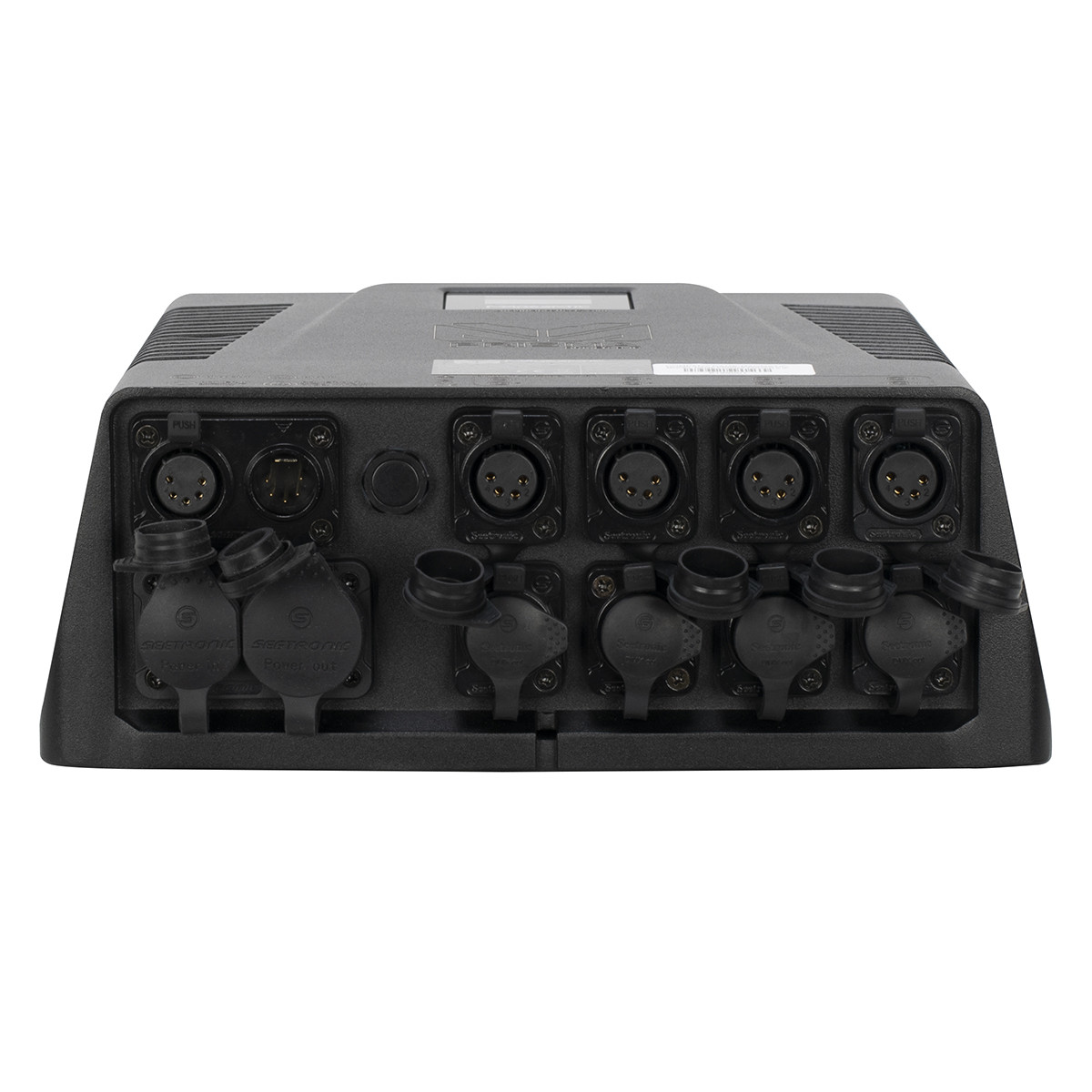

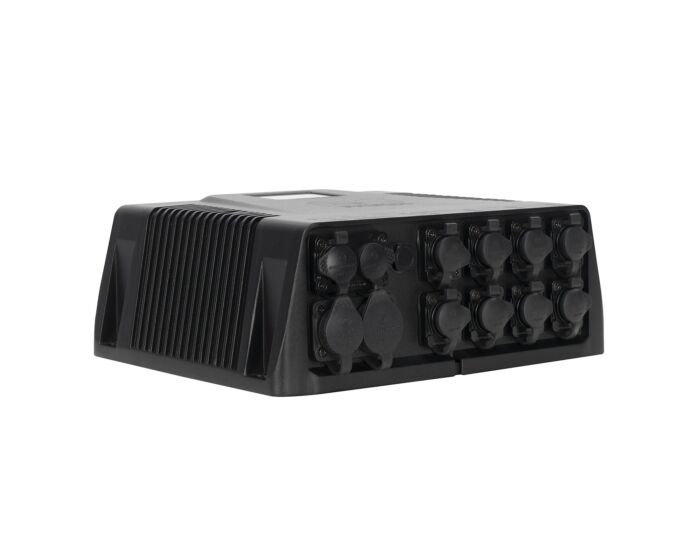

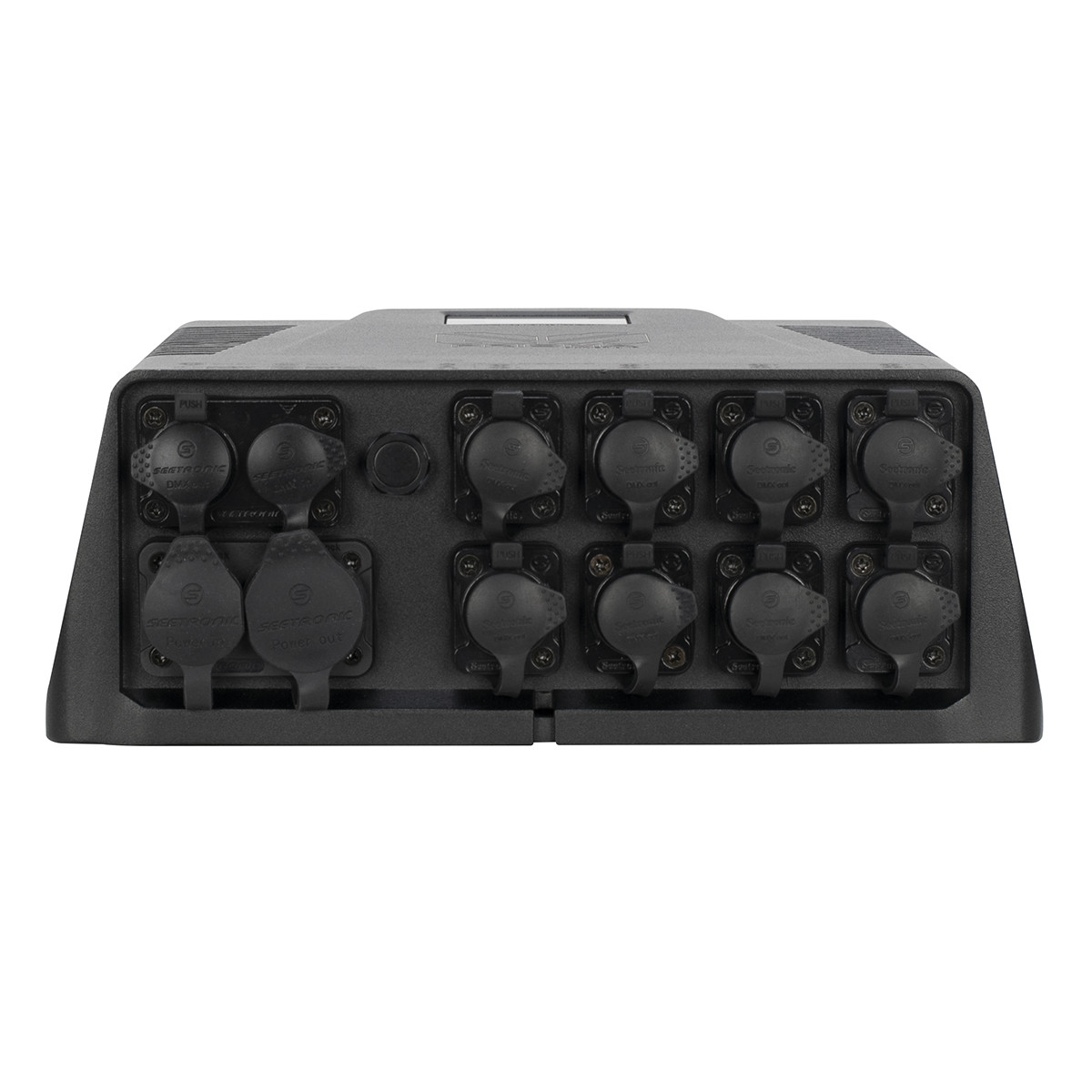

Features include a rugged IP65 housing, easy keyhole slots for wall and surface mounting, multiple DMX control modes, an onboard 4 button touch control panel, 8x 4pin locking output sockets, DMX 5pin locking XLR in/out and locking power in/out.
SpecificationsCONSTRUCTIONRugged IP65 Housing

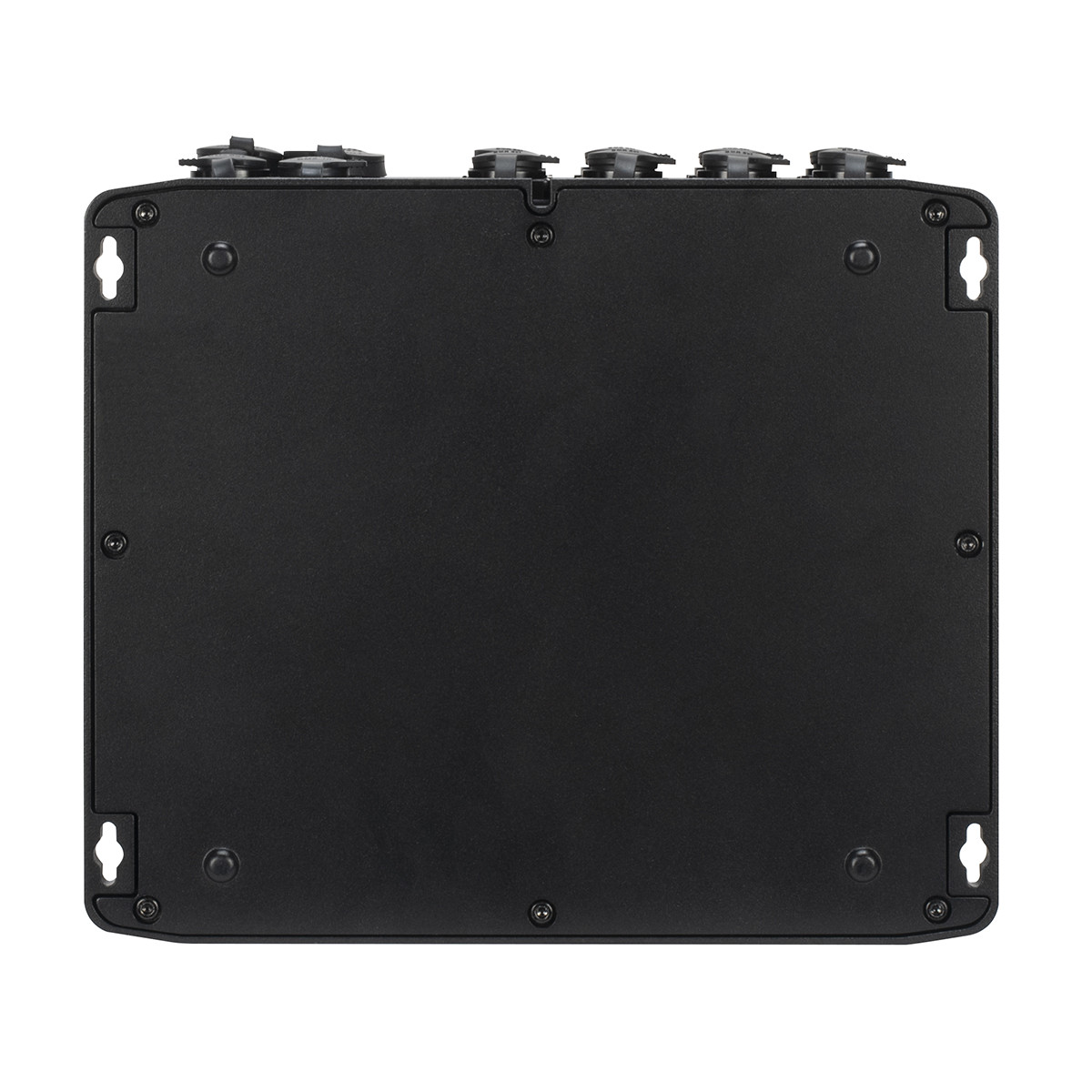

Easy Keyhole Slots for Wall/Surface Mounting
CONTROLMultiple DMX Channel Modes

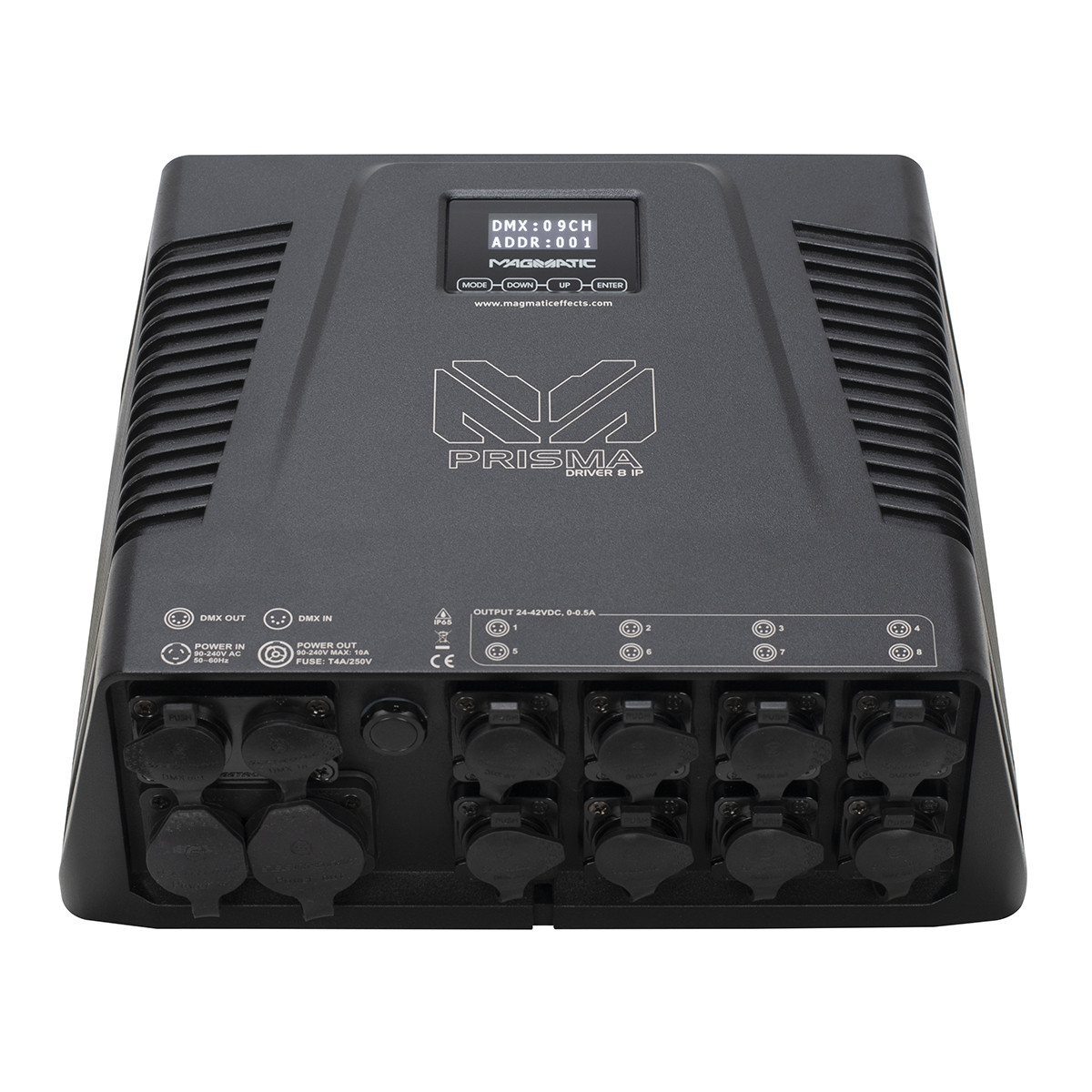

Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support
CONNECTIONS8x 4pin locking output sockets (8 PRISMA MINI fixtures max)
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
With Wired Digital Communication Network
SIZE / WEIGHTLength: 9.0 in. (227.8mm)
Width: 10.4 in. (264mm)
Height: 4.2 in. (105.9mm)
Weight: 8.05 lbs. (3.65 kg)
ELECTRICALAC90-240V, 50-60Hz
48VDC 8.3A
167W Max Power Consumption
THERMALMaximum Temperature (Ambient): 113 F (45 C)
Minimum Temperature (Ambient): 14 F (-10 C)
APPROVALS / RATINGSCE | cETLus *Pending | IP65 (Temporary outdoor use only)
