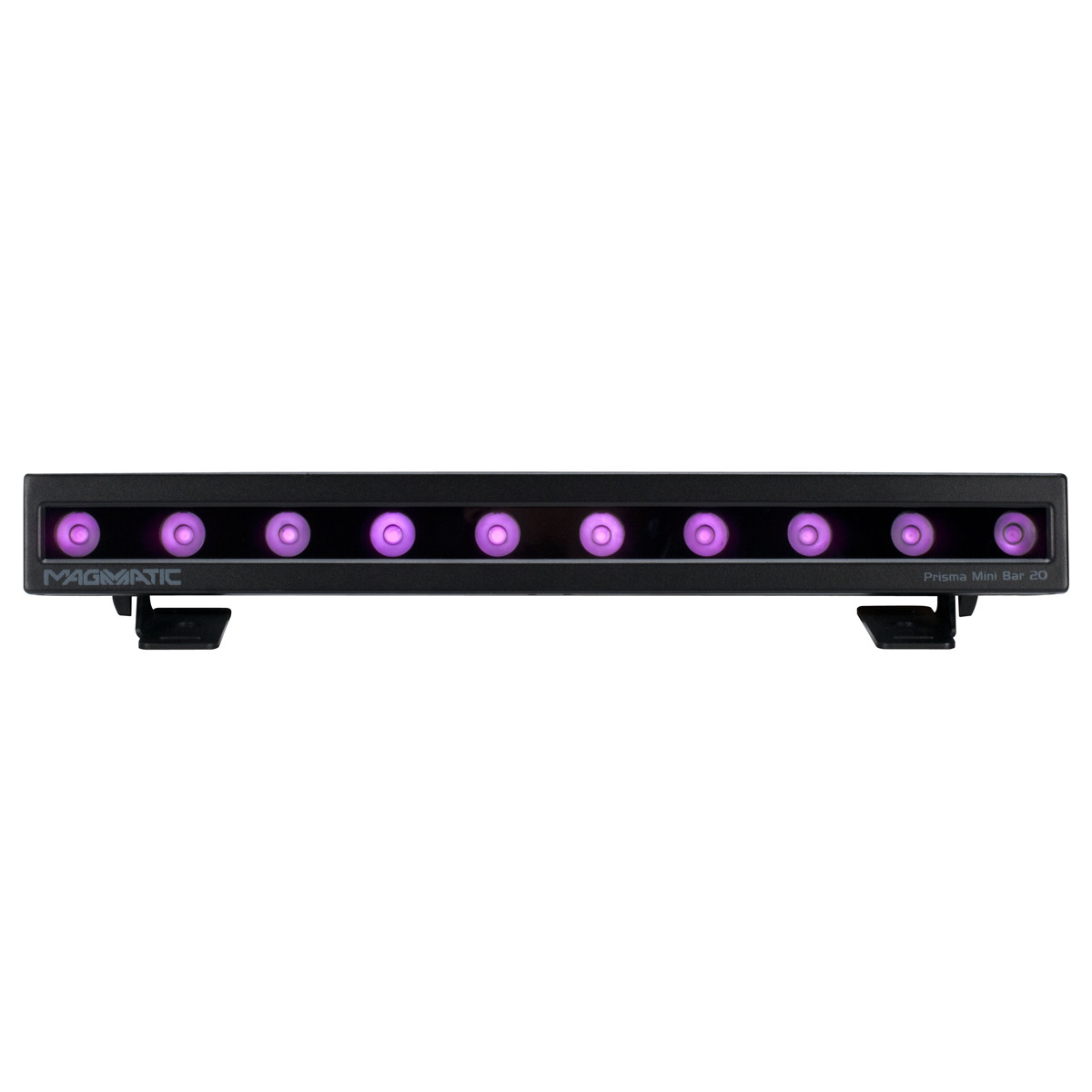

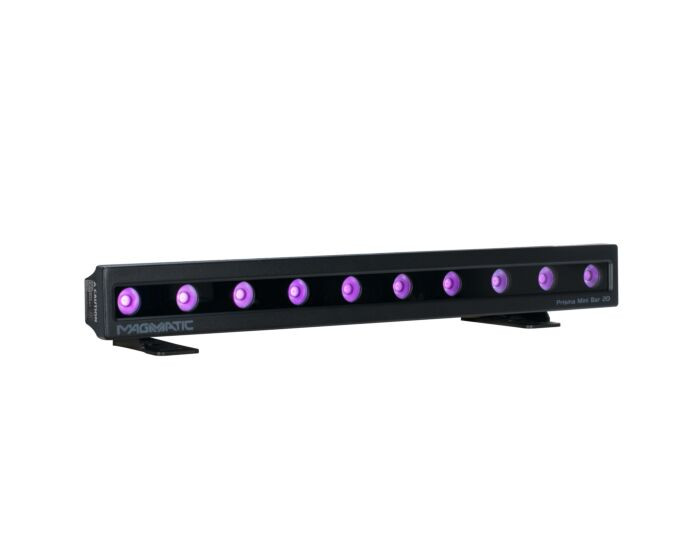

PRISMA MINI BAR 20' is is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle.
Powered by the PRISMA DRIVER 8' or PRISMA DRIVER 8IP', features 2 adjustable mounting brackets, a durable aluminum housing, and a 9 ft (2.7m) 2-Conductor 14 Gauge IP rated power/data pigtail cable.
• IP65 Rated Exterior High-Power UV Wash Bar Luminaire
• 20 Degree Narrow Beam Angle
• 365nm True UV Peak Wavelength
• Zero Visible Light Output
• IP Rated Power/Data Pigtail Cable Attached
SpecificationsSOURCE(10) 3W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
EFFECTSHigh Speed Electronic Strobe
Variable Dimming Curve Modes
CONSTRUCTIONRugged IP65 Rated Aluminum Housing

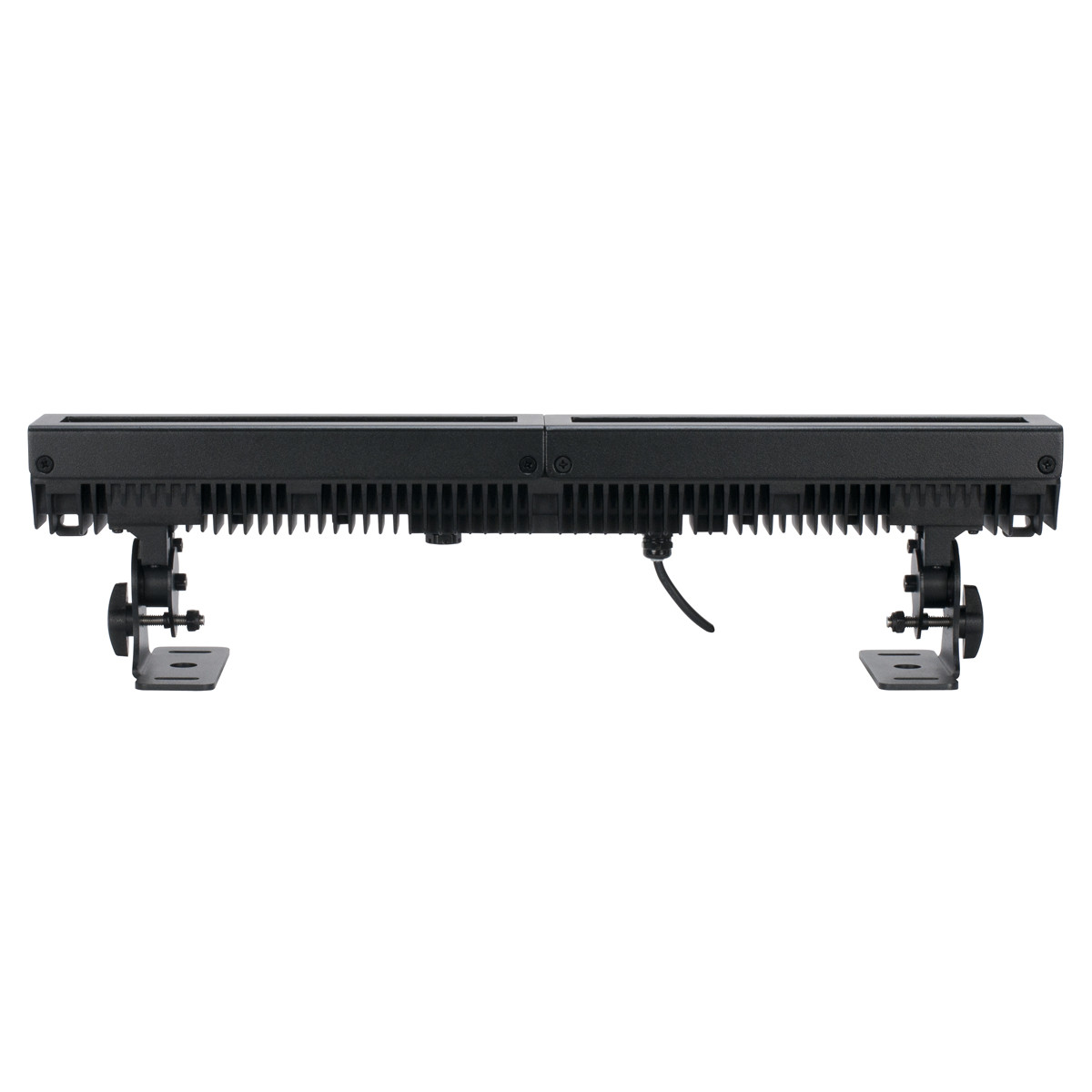

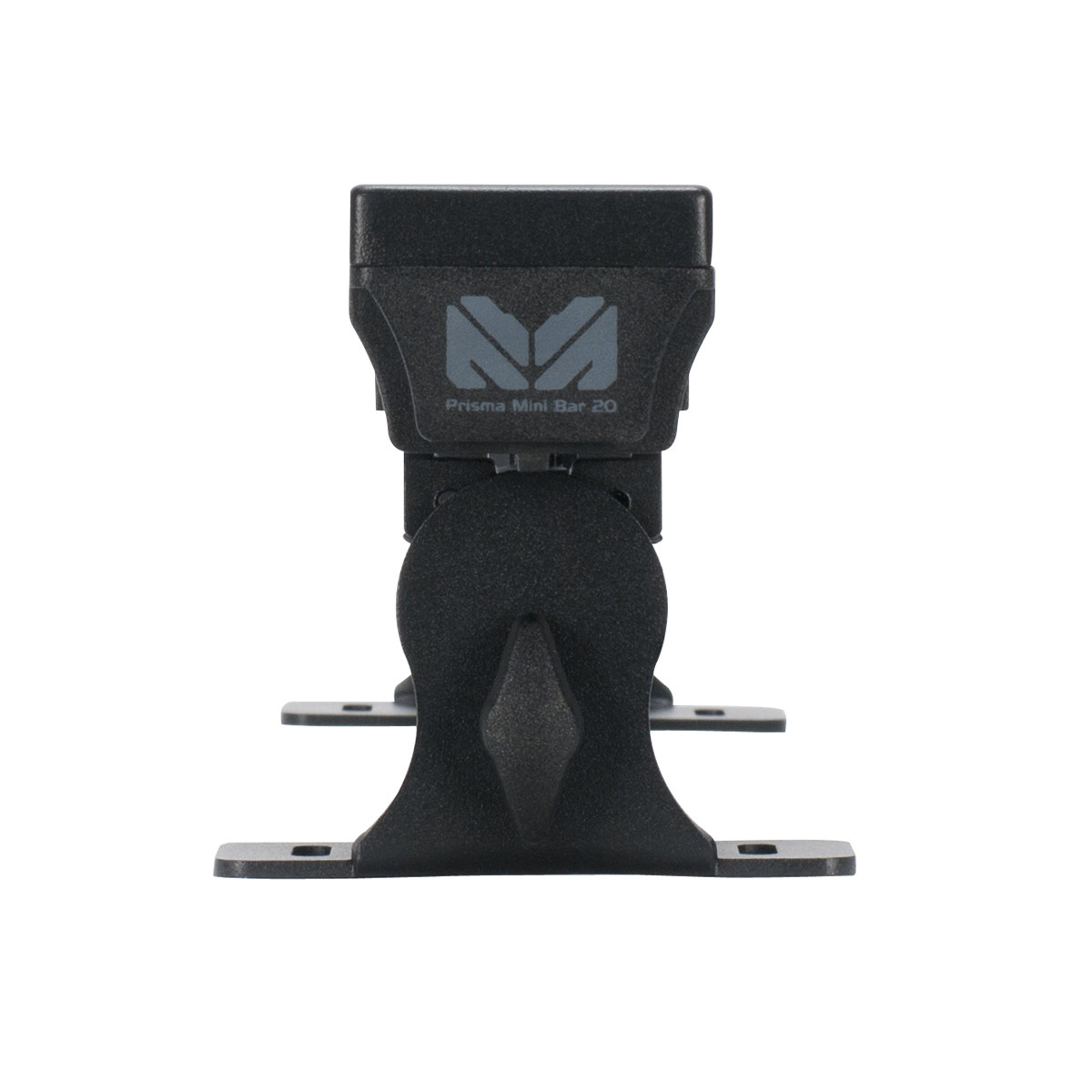

Adjustable Mounting Brackets (x2)
CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP)Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support

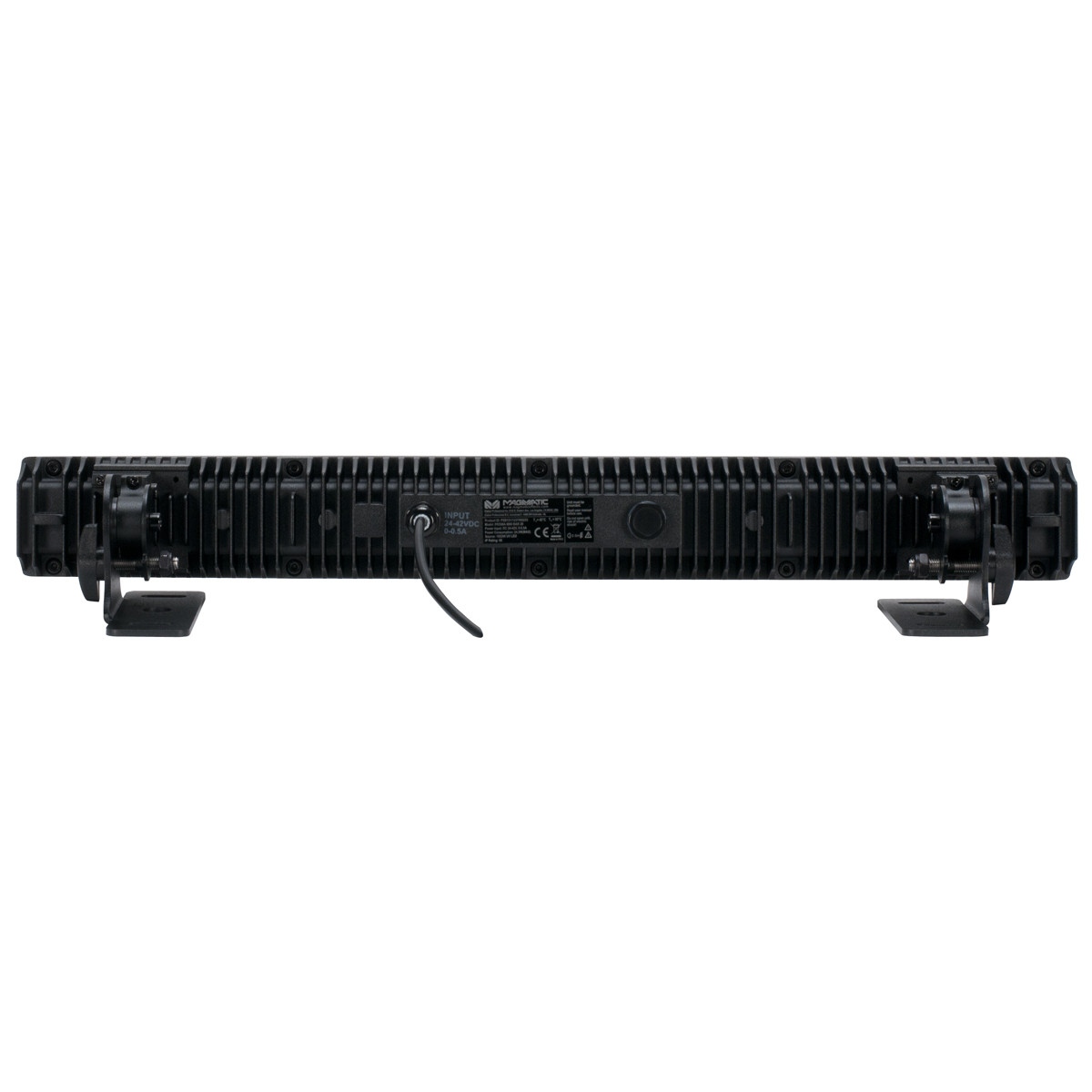

CONNECTIONS9 ft (2.7m) 2-Conductor 14 Gauge IP Rated Power/Data Pigtail Cable Attached
With Wired Digital Communication Network
SIZE / WEIGHTLength: 3.97 in. (100mm)
Width: 18.9 in. (480mm)
Vertical Height: 4.19 in. (106.5mm)
Weight: 4.2 lbs. (1.90kg)
ELECTRICALDC 0-36.7V (Via Pixel Driver 8)
24.3W Max Power Consumption
THERMAL14F to 113F (-10C to 45C)
Air Cooled
APPROVALS / RATINGSCE | cETLus | IP65
California Prop 65 -
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
