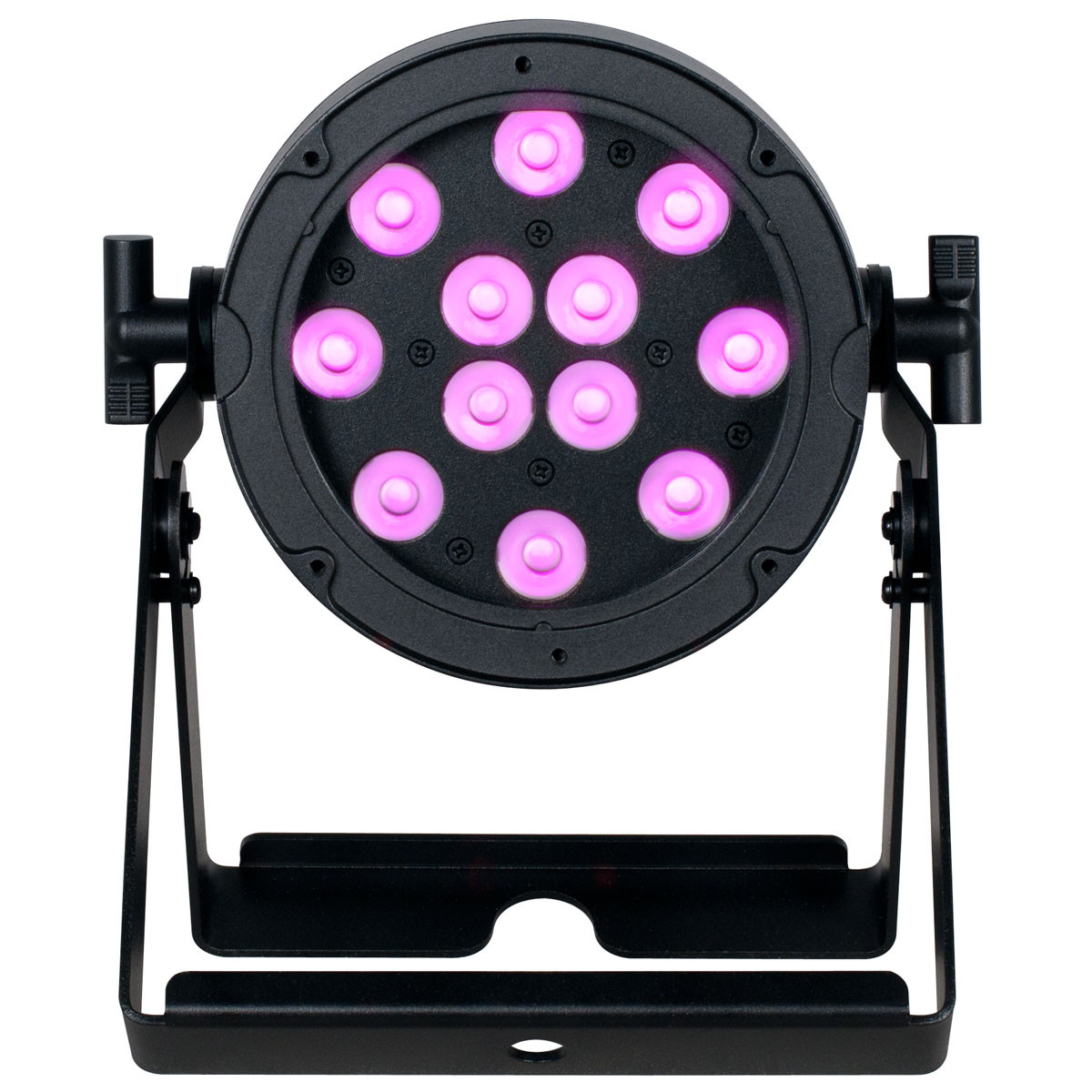

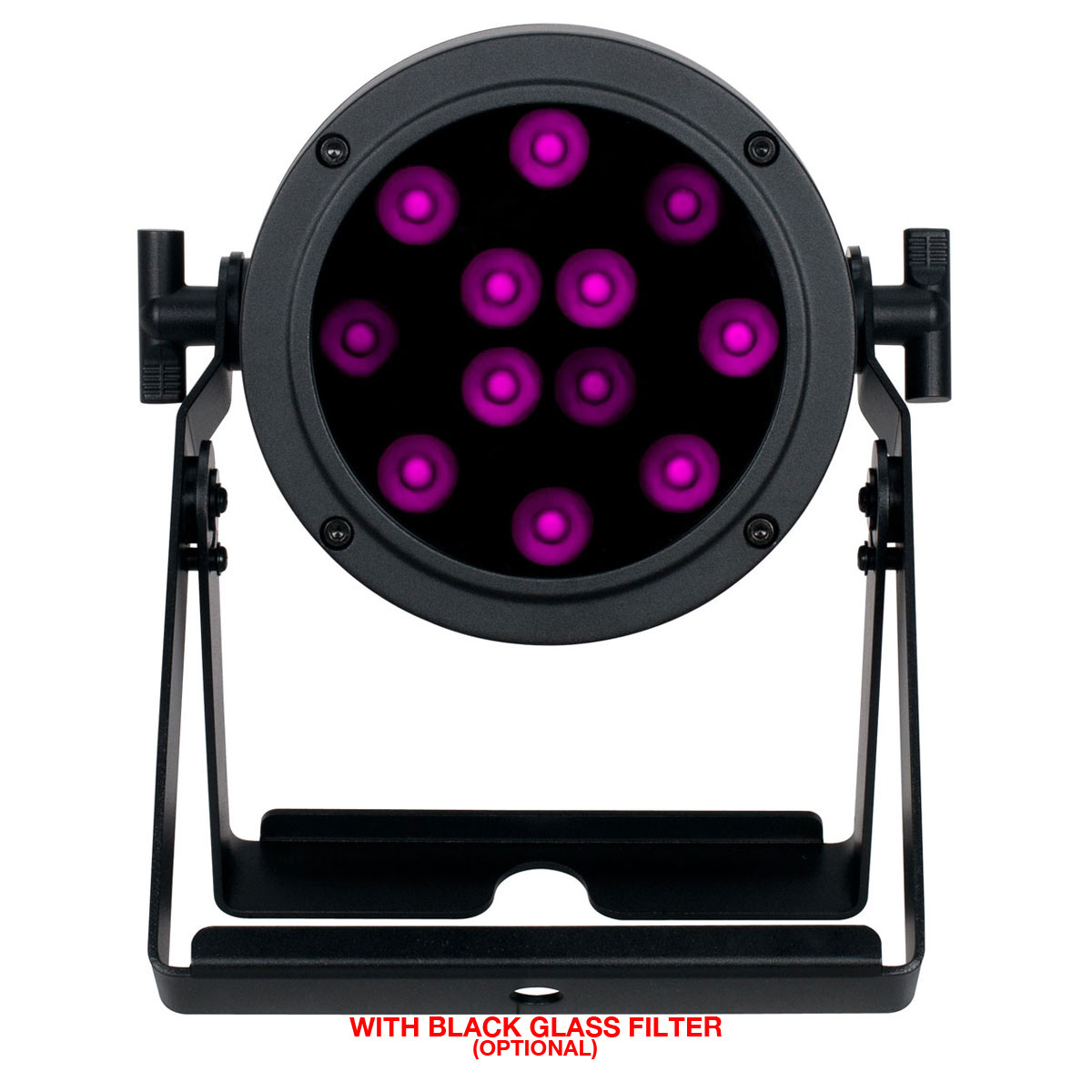

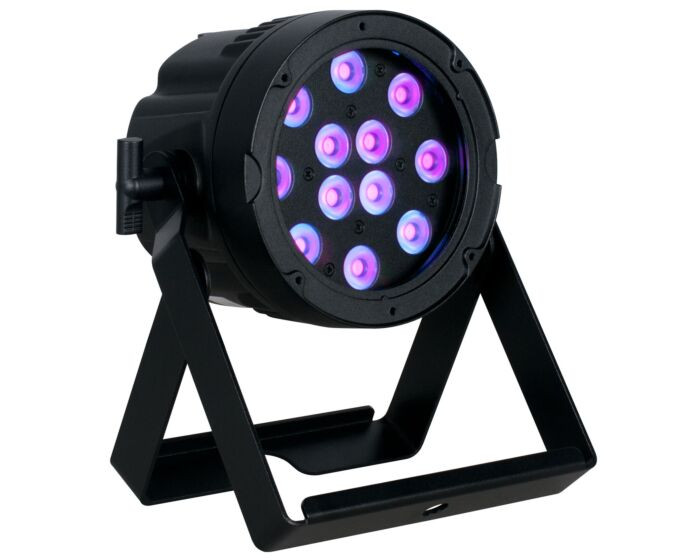

PRISMA PAR 20' is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light. Features include a 20 degree narrow beam angle, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminum housing, IP65 DMX 5pin XLR and locking power in/out connections.
• IP65 Rated Exterior High-Power UV Wash Par Luminaire
• 20 Degree Narrow Beam Angle
• 365nm Peak True UV Wavelength
• Zero Visible Light Output
SOURCE(12) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
EFFECTSHigh Speed Electronic Strobe
Variable Dimming Curve Modes
CONSTRUCTIONRugged IP65 Rated Housing

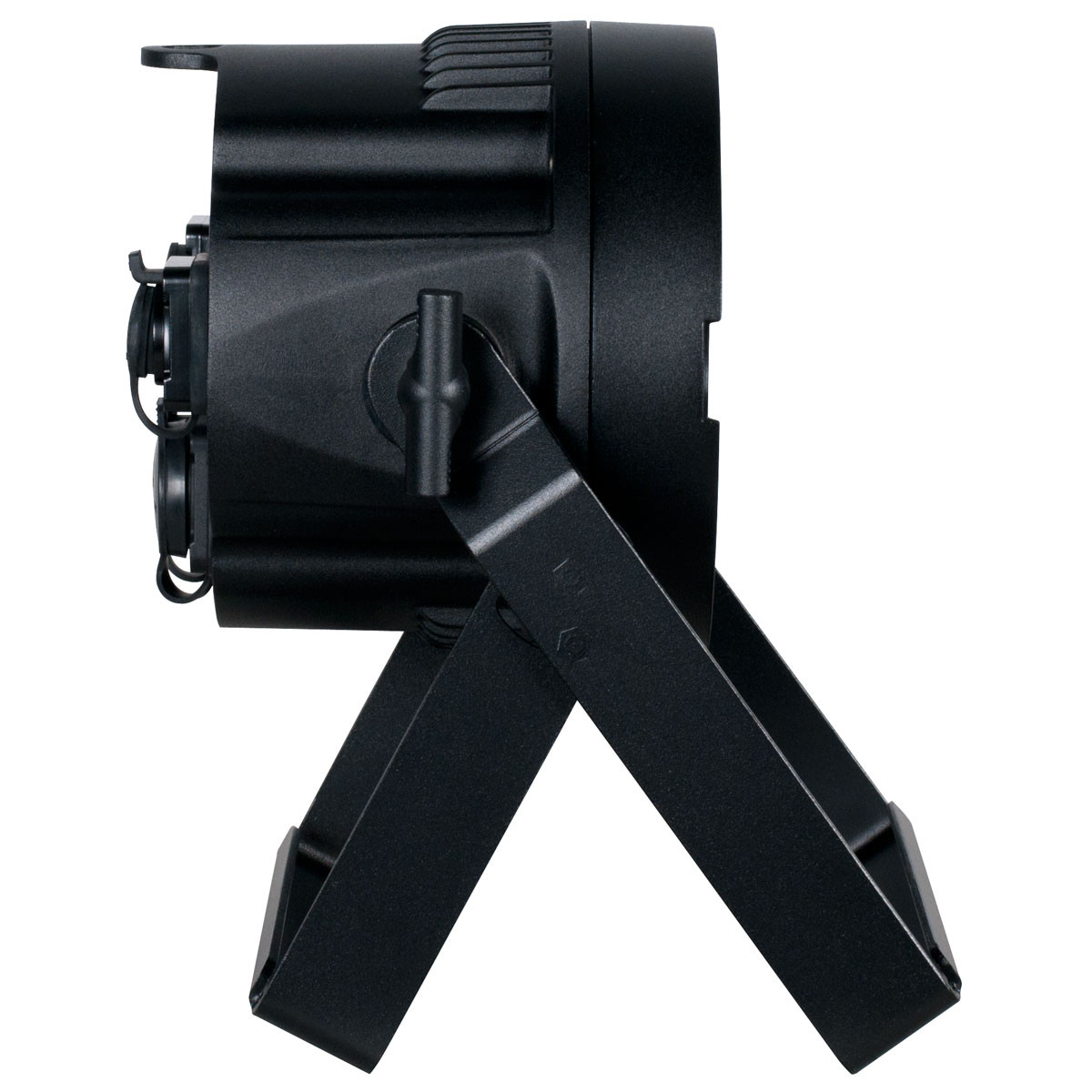

Dual Adjustable Mounting Yokes
CONTROLMultiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

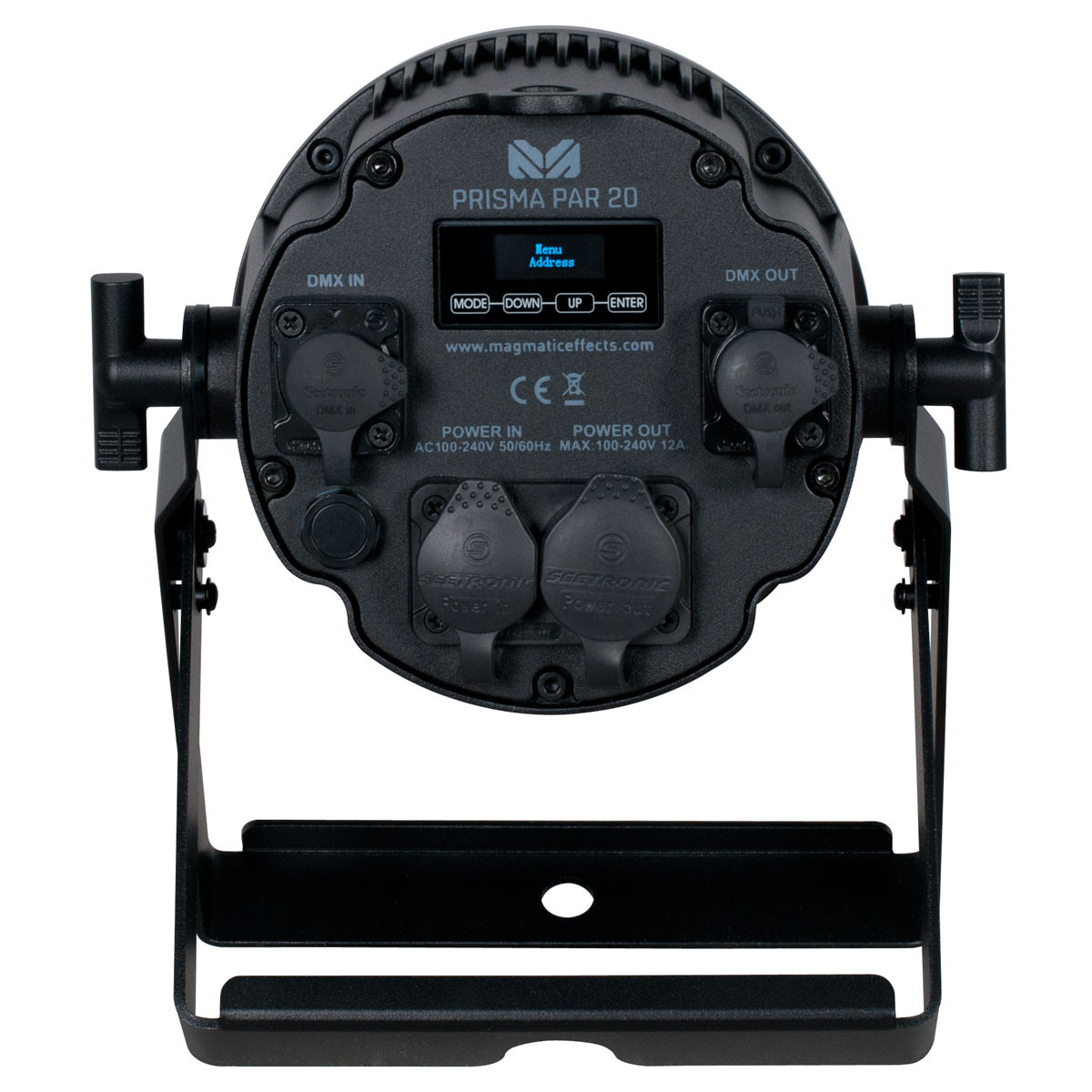

CONNECTIONSLocking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHTLength: 8.58 in. (218mm)
Width: 5.90 in. (150.6mm)
Vertical Height: 9.72 in. (246.6mm)
Weight: 5.29 lbs. (2.40kg)
ELECTRICALAC100-240V 50-60Hz
27W Max Power Consumption
THERMAL14F to 113F (-10C to 45C)
Air Cooled
APPROVALS / RATINGSCE | cETLus | IP65
