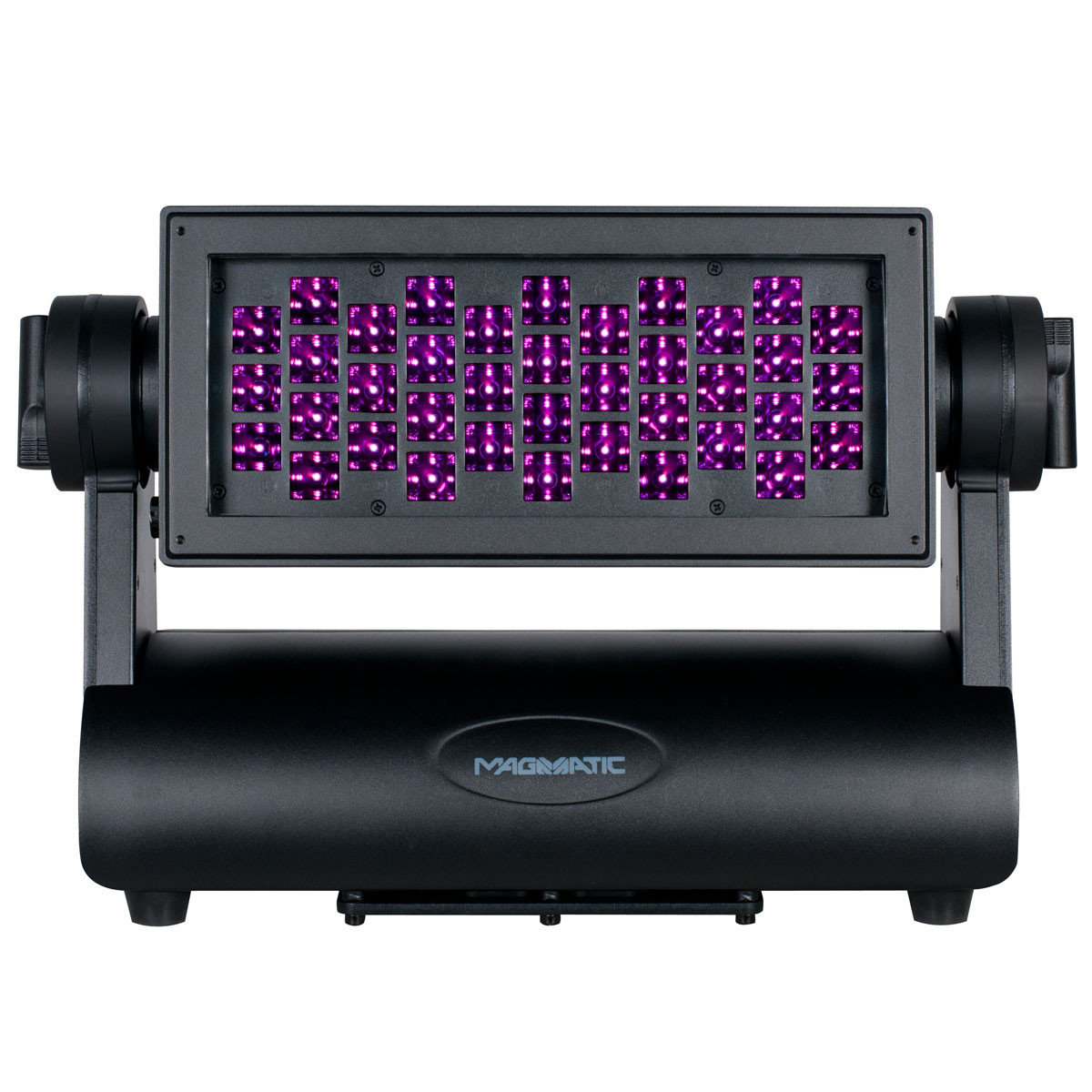

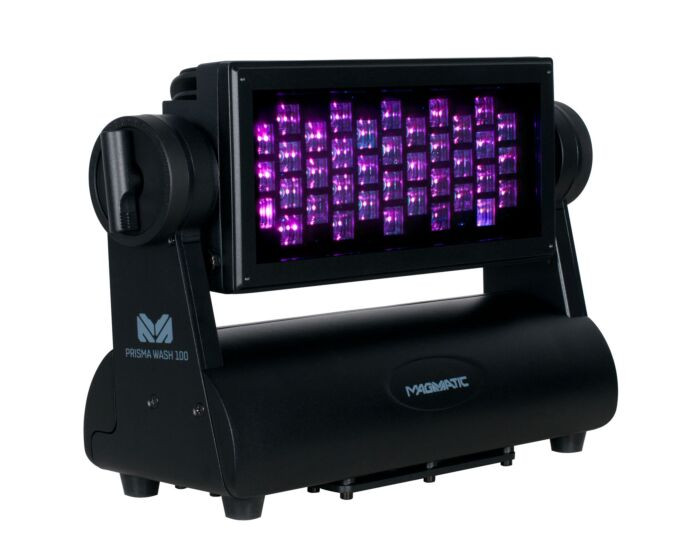

PRISMA WASH 100' is an exterior IP65 rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include a scoop LED reflector design which creates an impressive 90 degree wide beam angle, manual adjustable tilt positioning and versatile rigging options, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, and IP rated power and data in/out.

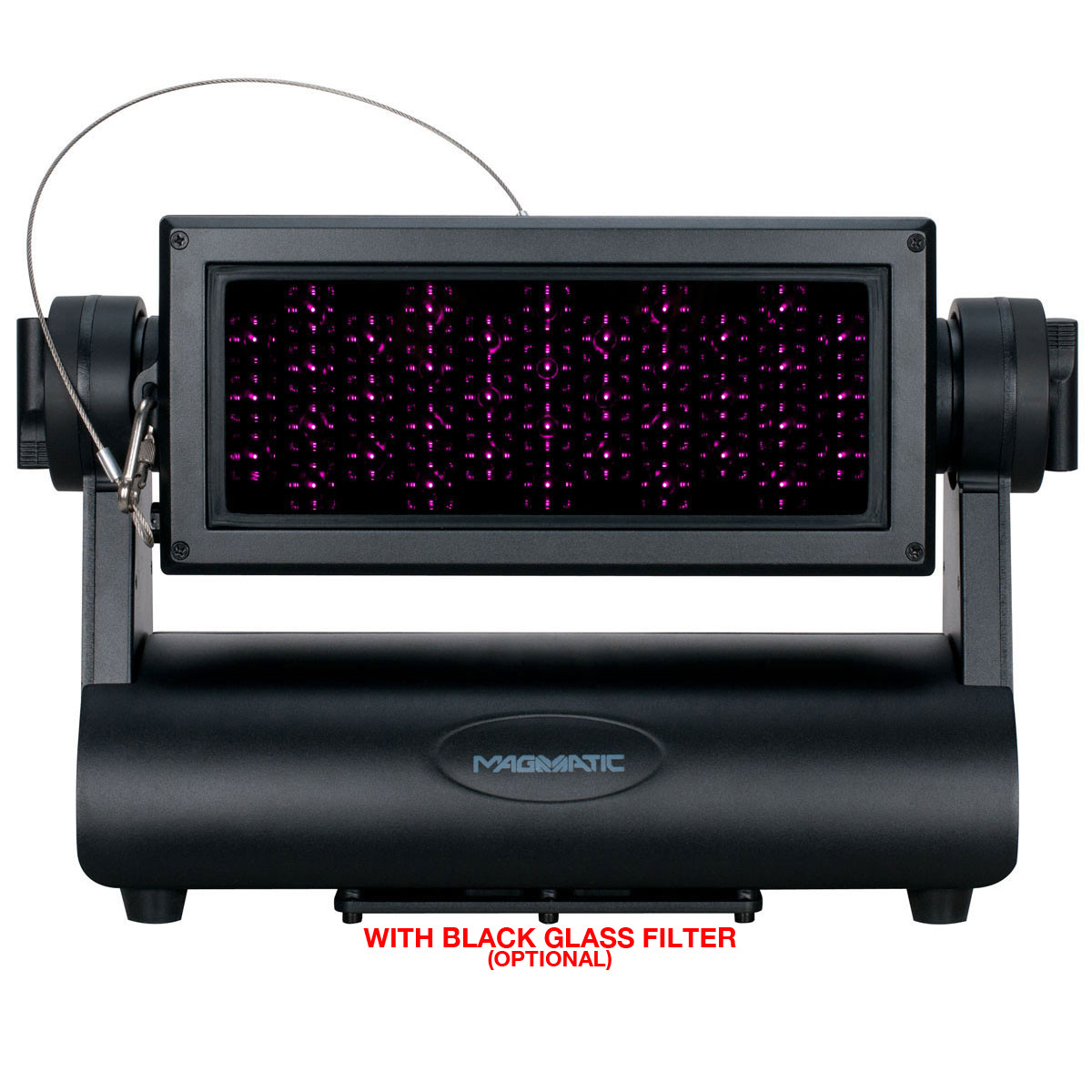

Optional accessories include a Black Glass diffusion filter to create a complete blackout effect, only allowing UV rays to penetrate, and extended length IP rated power and data linking cables.
• IP65 Rated Exterior High-Power UV Wash Luminaire
• Scoop LED Reflector Design
• 90 Degree Wide Beam Angle
• 365nm Peak True UV Wavelength
• Zero Visible Light Output
• Optional Black Glass Diffusion Filter
SpecificationsSOURCE(38) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA90 Degree Wide Beam Angle
365nm True UV Peak Wavelength
EFFECTSHigh Speed Electronic Strobe
Variable Dimming Curve Modes
CONSTRUCTIONRugged IP65 Rated Aluminum Housing

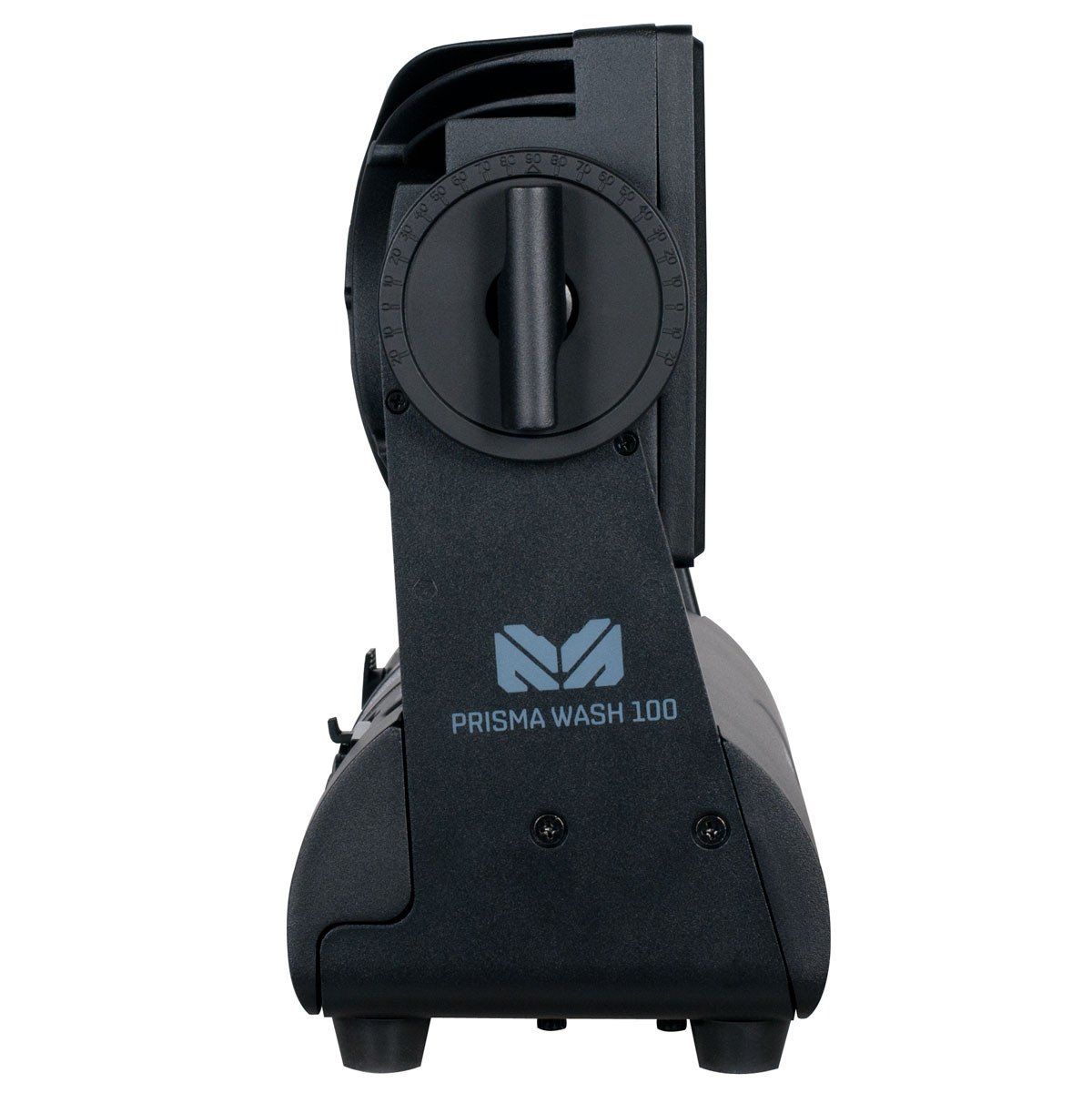

Manual Adjustable Tilt Position
CONTROLMultiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

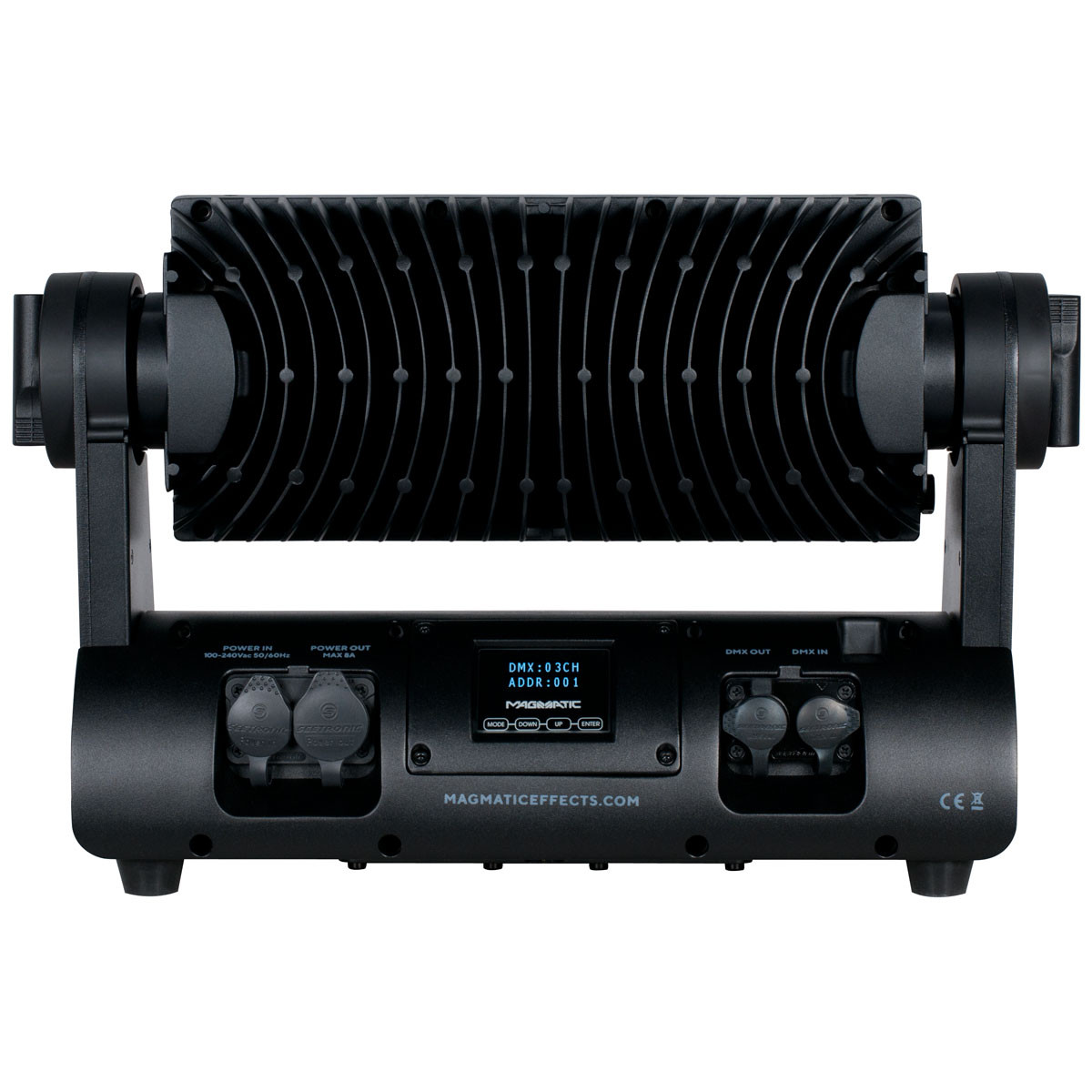

CONNECTIONSLocking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHTLength: 17.24" (438mm)
Width: 5.82" (148mm)
Vertical Height: 11.29" (287mm)
Weight: 18.5 lbs. (8.4 kg)
ELECTRICALAC100-240V 50-60Hz
T2A/250V
83W Max Power Consumption
THERMALAmbient Temperature (Ta max) 104F (40C)
Air Cooled
APPROVALS / RATINGSCE | cETLus | IP65
