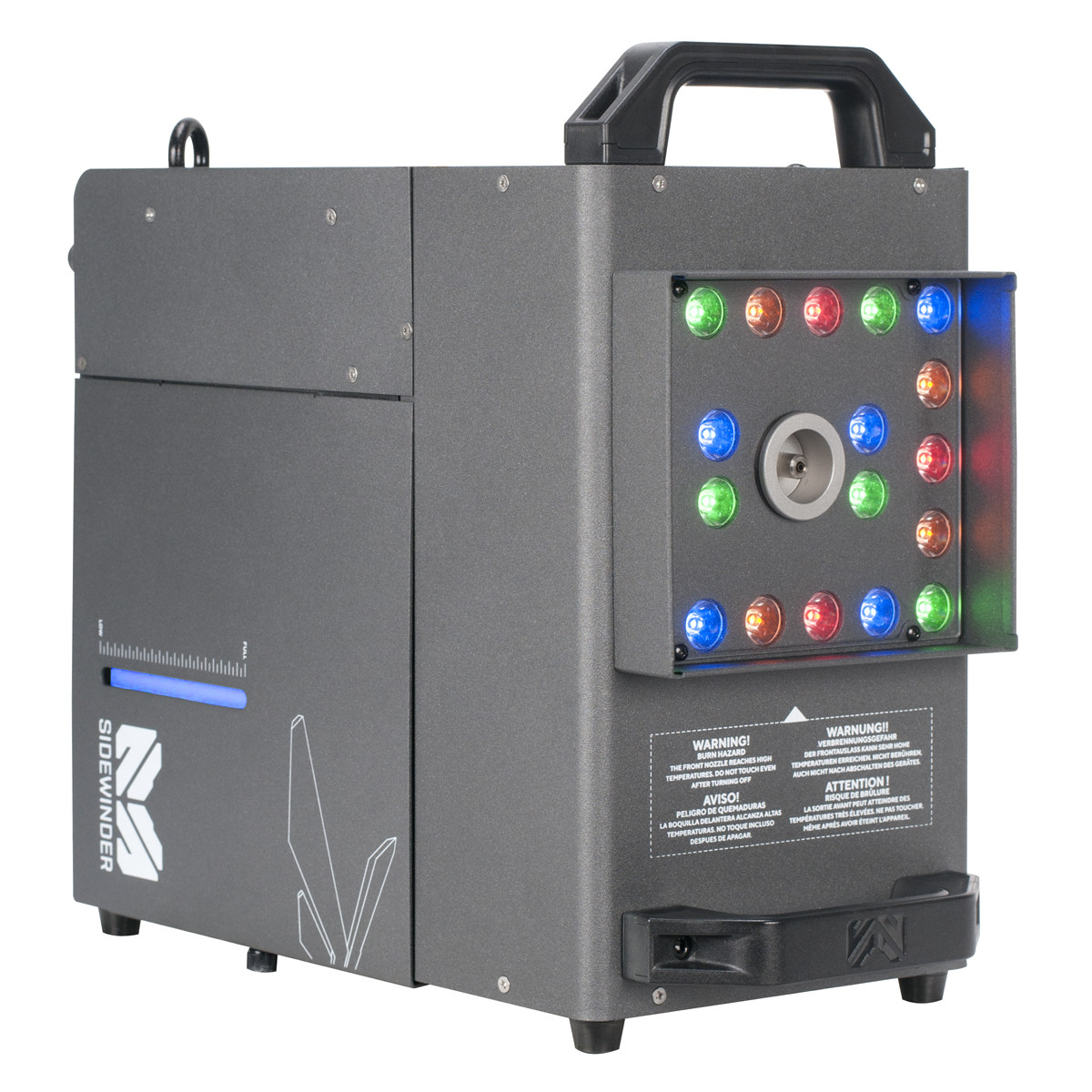

The Magmatic Sidewinder is a high-velocity CO2 simulator fog machine. Including 22 x 2-watt RGBA LEDs. The Sidewinder can burst fog in multiple positions, rotating 180 degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512, RDM control, durable aluminum housing, and optional wired and wireless remote control options.
• High-velocity CO2 simulator fog machine
• Four, 10-second 20-ft bursts
• Vertical and horizontal bursts of fog
• 34 x 2-watt RGBA LEDs
• Durable tour-ready aluminum housing
PERFORMANCERated Power: 1450W
Max Output: 50,000 CFM* (cu ft/min.)
Max Continuous Output: 8 Seconds
Max Throw Distance: 20 Feet
Initial Ready Time: 9 Minutes
Cycling Ready Time: 1 Minute
Fluid Capacity: 2.5L
Fluid Consumption: 180ml/min.
COMPATIBLE FLUIDAtmosity Flash Fog Fluid (AFF-2L, AFF-4L , AFF-20L)
CONSTRUCTIONThermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process

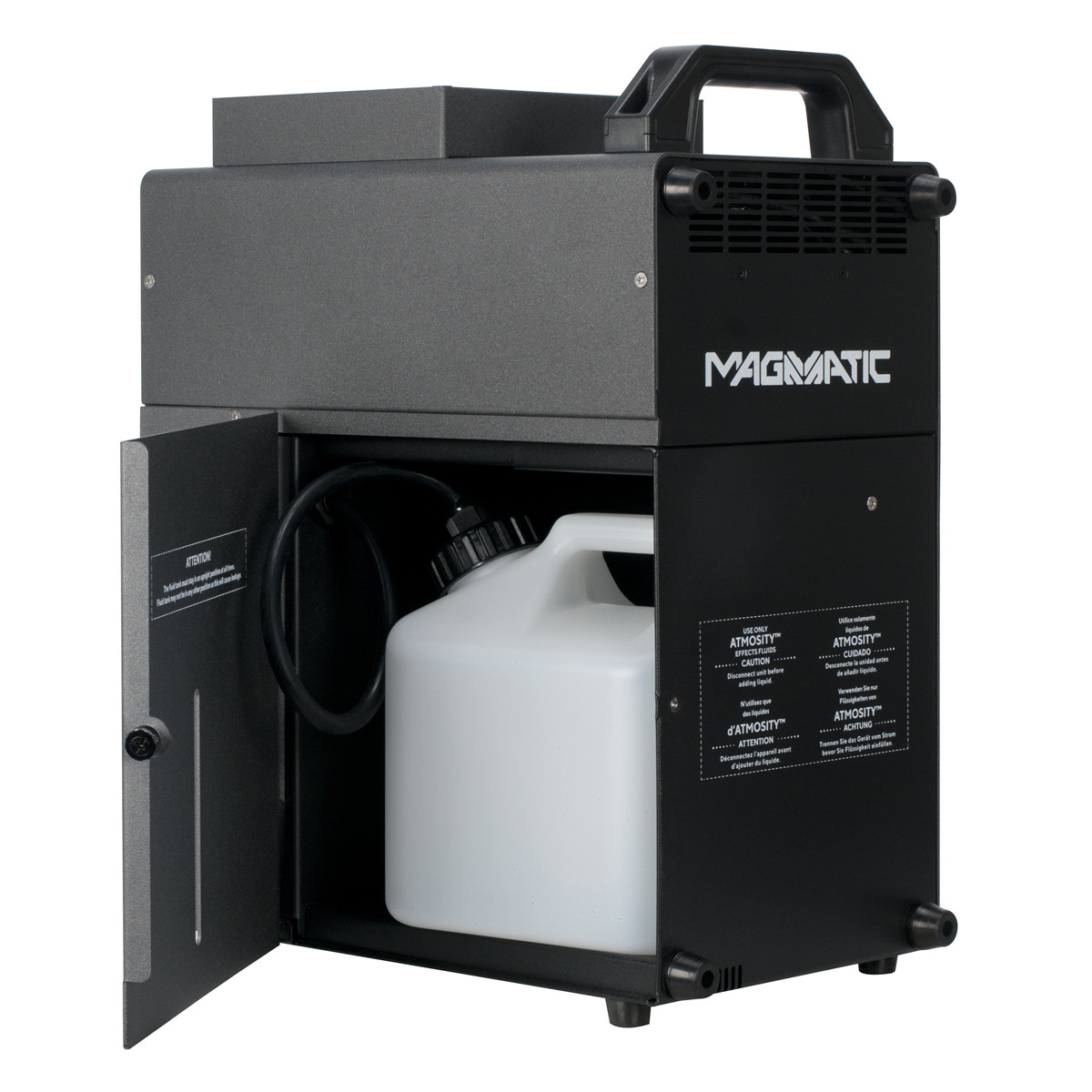

Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design
CONTROL3 DMX Channel Modes (1 / 4 / 7)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes

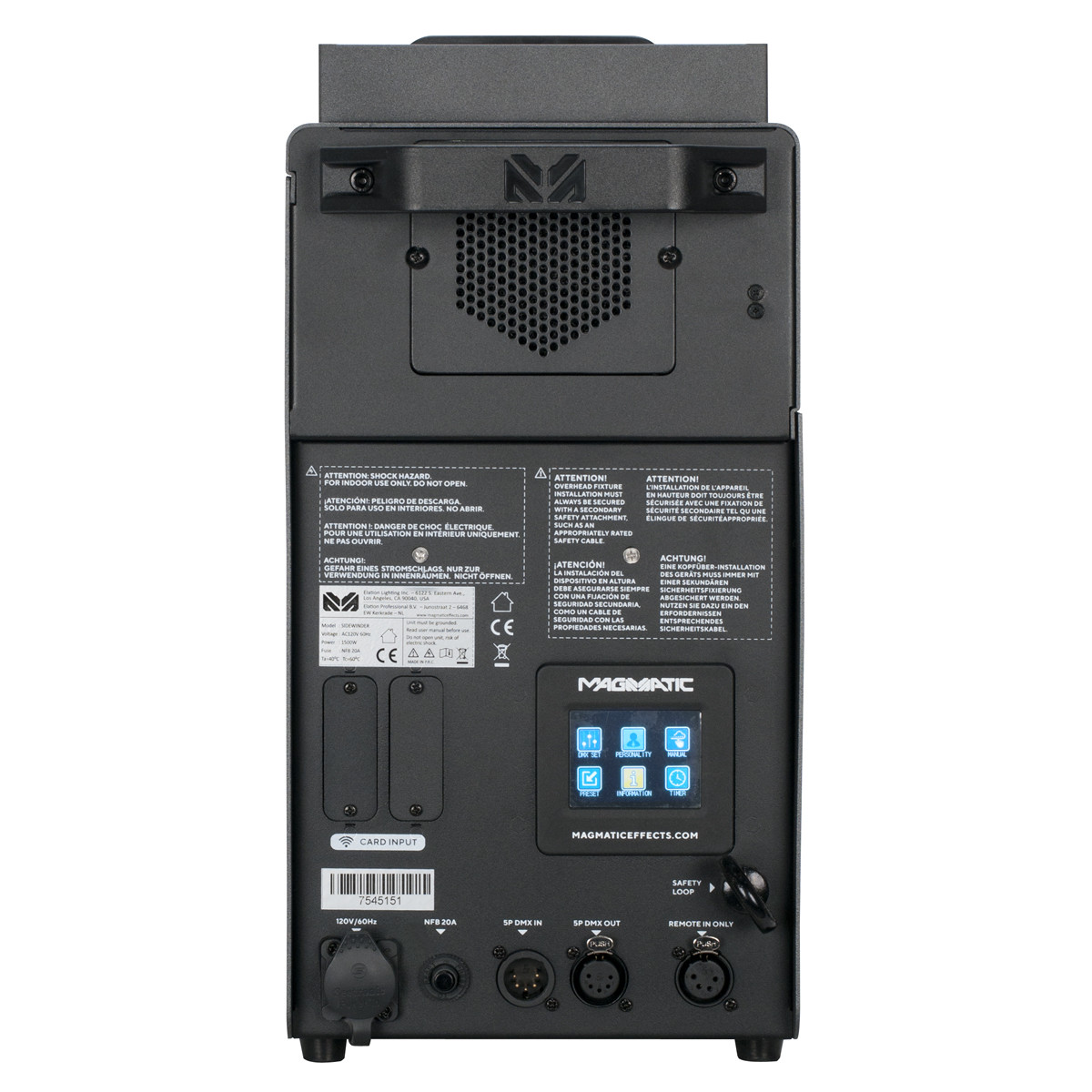

CONNECTIONS5-pin locking XLR, In/Out Data Connectors
IP65 Locking Input Power Connector
With Wired Digital Communication Network
SIZE / WEIGHTLength: 16.26 in. (413mm)
Width: 7.60 in. (193mm)
Height: 14.80 in. (376mm)
Weight: 29.5 lbs. (13.4kg)
ELECTRICALAC 100-120V - 50/60Hz
Breaker Size: 20A (120V Version)
Breaker Size: 10A (230/240V Version)
Max Power Consumption: 1560W
THERMALMaximum Ambient Temperature (Ta max) 104F (40C)
Exterior Surface Temperature, Steady State: 140F (60C)
APPROVALS / RATINGSCE | cETLus (pending) | IP20
