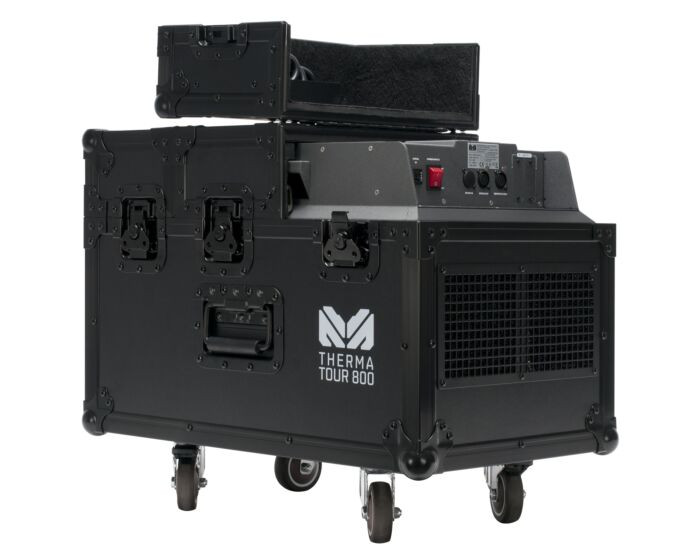

The Therma Tour 800 is a powerful oil-based haze effect generator that produces an exceptionally fine, long-lasting atmospheric haze that excels at revealing light beams and mid-air effects. The 800W Therma Tour 800 creates a safe, clean and odorless haze effect that leaves no residue.
The perfect small-particle haze for highlighting light beams, the unit holds two liters of fluid for over 35-hours of run time with no warm up time required. Hang time is incredibly long at over 3 hours in an enclosed space!
Compact yet ruggedly built to withstand the day in and day out rigors of on-the-road use, multiple control options include a wireless RF remote, Magmatic Magfly or Elation E-Fly wireless DMX, wired remote, Magmatic App, and manual, on-board, touch screen control.
• 800 watt low power consumption
• Over 35 hours of run time
• Haze lasting up to 3 hours after machine is off

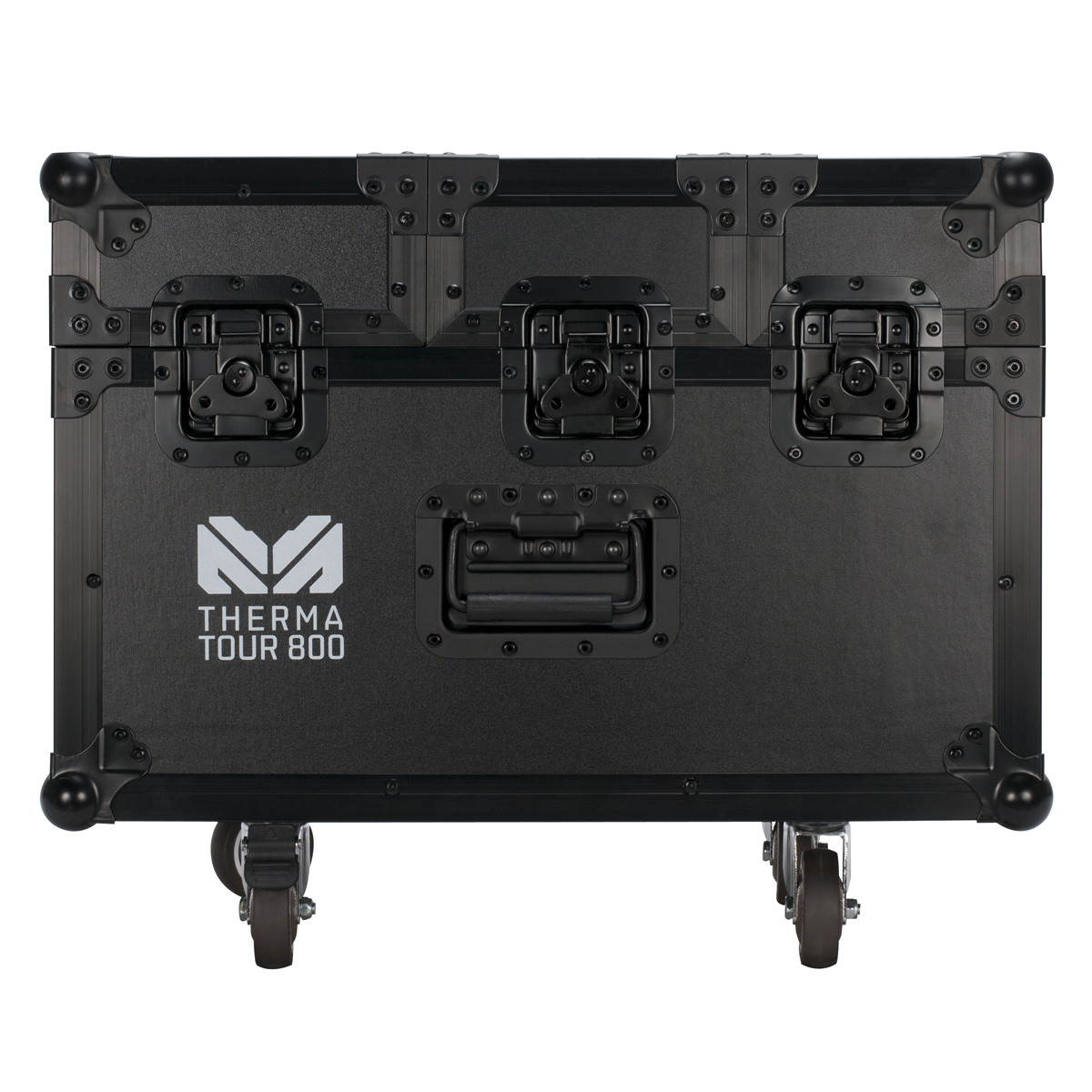

• Rugged mobile road case design
• Soundproof insulation for indoor use
DYNAMIC EFFECTSOutput: 5600 cu.ft / Min
External Visual Fluid Level Detection
COMPATIBLE FLUIDAtmosity ARH (Oil based fluid)
CONSTRUCTION / PHYSICAL / PERFORMANCEExternal Visual Fluid Level Detection
Fluid Tank Capacity: 2.5L
Fluid Consumption: 1.5ml / Min.
CONTROL2 Card Inputs
RDM (Remote Device Management)
Control Protocol: DMX
DMX Control Modes: 2 (1 & 3 Channel)
On-Board Timer Control
5 Factory Presets
4-Pin Wired Remote Input for optional remote
Touch Screen Display
Manual Control via on-board display
CONNECTIONSData Connectors: 5-Pin XLR/Out, 4-Pin XLR Out
Locking Power Connector
SIZE / WEIGHTLength: 24.45 in. (621.13mm)
Width: 15.34 in. (389.63mm)
Height: 19.87 in. (504.76mm - With Casters)
Weight: 93 lbs. (42kg)
ELECTRICALPower Consumption: 820w
Input Voltage: 120V, 230V, 240V, 50 & 60Hz
Breaker Size: 15A (120V version)
Breaker Size: 10A (230V version)
THERMALMaximum Temperature (Ambient): 104F (40C)
Exterior Surface Temperature: 122F (50C)
WHATS INCLUDEDFlight Case
14 AWG Locking Power Cable
OPTIONAL ACCESSORIESMAGFLY Card
MAG-RF Card
Atmosity ARH (Oil base haze fluid)
APPROVALS / RATINGSCE | cETLus | IP20
California Prop 65 -
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
