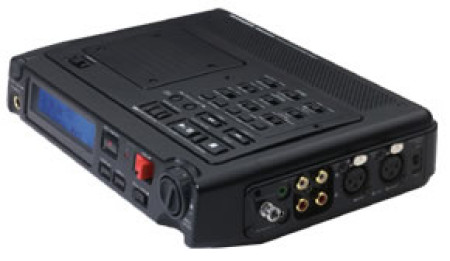

Marantz has raised the bar, exponentially. The PMD671 can record 24-bit, 96 kHz audio for the highest sound quality available in the field or even in the studio.
The ability to read-after-write offers completely new levels of functionality never before available in a field recorder. Even the mic preamps have been dramatically improved. Then add programmable presets, and changing formats on the fly is as easy as pressing a button. Serious professionals need serious tools. If your application requires uncompromising audio, unflinching reliability, and unprecedented functionality, you owe it to yourself to take a very serious look at the PMD671.
FEATURES:• 24-bit, 96 kHz PCM capable for unrivaled fidelity• "Virtual Third Head" for confidence monitoring• Read-after-write capability for random access playback while recording• No moving parts-no maintenance• Built-in USB 2.0 port for ultra-fast, easy file transfer to PC• Records uncompressed 16 and 24 bit PCM .wav files at 44.1, 48, 88.2 or 96 kHz• Records mono .mp3 files at 64 kbps• Records stereo .mp3 files at 128 kbps• Uses inexpensive, widely available Compact Flash media (CF)• A 1 GB CF card can hold almost 30 minutes of uncompressed stereo (24 bit, 96 kHz)• A 1 GB CF card can hold almost 90 minutes of uncompressed stereo (16 bit, 44.1kHz)• A 1 GB CF card can hold over 17 hours (stereo) or 36 hours (mono) .mp3• 4 to 6 hour battery life with standard AA alkaline batteries• Two XLR mic connections with +48v phantom power• Dramatically upgraded microphone preamps• RCA line I/O• Built-in monitor speaker• Optional RC600 wired remote control with peak indicator• Future timecode upgrade planned.
TECHNICAL SPECIFICATIONS:Digital Audio System• System: Solid State Recorder• Usable Media: CF memory/Microdrive cards• Recording and media methods:.mp2 MPEG1 Layer II compression.mp3 MPEG1 Layer III compression.mp3 MPEG2 Layer III compression*• PCM: 16/24 bit linear PCM
Sampling frequency • Analog:24bit PCM: 96, 88.2, 48, 44.1 kHz16bit PCM: 48, 44.1, 32, 24,22.05, 16, 12, 11.025, 8 khzMP2: 48, 44.1, 32 kHzMP3: 48, 44.1, 32 , 24, 22.05, 16 kHzDigital: 96, 88.2, 48, 44.1 kHz• Number of channels: 2 (stereo), 1 (mono) • Frequency response: 44kHz (-0.5dB, fs=96kHz)• Signal-to-Noise Ratio: IEC-A weightedLINE 92 dBMIC 65 dB• Total Harmonic Distortion: at 0 VU (PCM)LINE 0.01%MIC 0.03%• Dynamic Rang: 94dB
Inputs • MIC IN L/R: Type: XLR (1:GND, 2:HOT, 3:COLD)Input Sensitivity (MIC): 1.2 mVrms/3 kohms• LINE IN L/R:Type: RCA jackInput Sensitivity: 300 mVrms/22 kohms• DIGITAL IN: Type: RCA jackInput impedance: 75 ohmsStandard input level: 0.5 Vp-pSampling frequency: 96, 88.2, 48, 44.1 kHzFormat: SPDIF (IEC 958 TypeII)
Outputs • LINE OUT L/R: • Type: RCA jackStandard level: 2 Vrms max./2 kohms• DIGITAL OUT: Type: RCA jackOutput impedance: 75 ohmsStandard output level: 0.5 Vp-pSampling frequency: 96, 88.2, 48, 44.1 kHzFormat: SPDIF (IEC-958 Type II)
General • Headphone Output power: 20 mW/32 ohms• Speaker Output power: 70 mW/4 ohms• Phantom power: +48V/7mA• Recording/Playback: 6 W• Charging: 12 W max• Standby (battery driven): 2.9 mW• Battery life (Alkaline): 6 hours (typical)• Dimensions: Width-10.4" (264 mm) Height2.0" (55 mm), Depth: 7.3" (185 mm)• Weight: 2 lbs. 14 oz. (1.3 kg)
