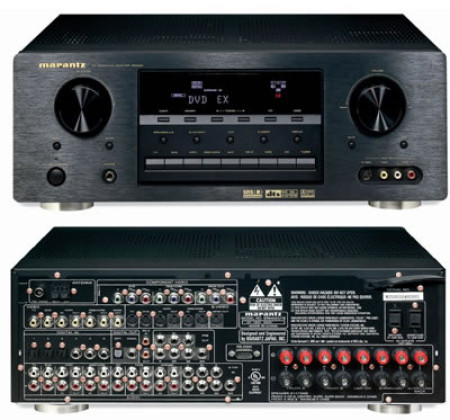

The SR6400P is a high-performance A/V receiver that delivers exceptional surround sound quality and home theater control. Featuring a high power amplifier section, speakers "A" and "B" and a host of analog, digital and video inputs/outputs, including component video switching, the SR6400P can easily support even the most sophisticated home theater.
By incorporating 192 kHz/24-bit DACs with DTS-ES 6.1 discrete Dolby Digital EX, Dolby Pro Logic II and Circle Surround 6.1 DSP technology, you'll experience the dynamic impact of movie and music soundtracks. Controlling this power is simple with the included programmable, learning remote control, or with via the SR6400P's RS-232 port.
FEATURES:• 100 x 6 all discrete Amplifier Channels
• 192kHz/24-bit DACS for all 7 channels
• 32-bit custom DSP chipset
Dolby Digital EX, DTS ES (Discrete, 96/24, Neo:6.1, SRS Circle Surround 6.1 and Tru-surround Headphone
• HD component video switching
• Speaker A and B switching
RS232C terminal for system control
TECHNICAL SPECIFICATIONS:Audio Section:• Power Output: (8 Ohm) 100 x 6 (<0.08%, 20 Hz - 20 kHz/
• Signal to Noise: 105 dB
• Freq. Response: (Analog In) 10 Hz - 100 kHz (+/- 3 dB)
• Freq. Response: (Dig In) 8 Hz - 45 kHz (+/- 3 dB)
• Input Sensitivity: 340 mV/ 47 K ohms
• Tuner Section: FM
• Frequency Range: 87.5 - 108.0 MHz
S/N Ratio (Mono/Stereo) Mono/Stereo 75/70 dB
• Distortion: (Mono/Stereo) 0.2% / 0.3 %
• Channel Selectivity: +/- 300 kHz 60 dB
• Usable Sensitivity: IHF 1.8 V/16.4 dBf
• Channel Separation: 1 kHz 45 dB (stereo)
• Tuner Section: AM
• Frequency Range: 520 - 1710 kHz
S/N Ratio 50 dB
• Distortion: 400Hz, 30 % Mod. 0.5 %
• Channel Selectivity: +/- 20 kHz 70 dB
General
• Front Panel: Metal Alloy
• Remote Control: RC7300SR
• Power Requirement: AC 120V/60 Hz
• Dimensions: (Inches) 175/16 x 67/16 x 167/16 (181/4 including speaker
terminal & volume knob)
• Weight 27.6 lbs.
• Accessory 4RU Rack kit included
Inputs/Outputs:• Video:
Composite In 5
Composite Out 2 + 1 (monitor)
S- Video In 5
S- Video Out 2 + 1 (monitor)
Component In 2
Component Out 1
• Audio:
Analog In 8
Analog Out 4
Digital In 6 (assignable)
Digital Optical In 3
Digital Optical Out 1
Digital Coaxial In 3
Digital Coaxial Out 1
• Other:
Pre- Amplifi er Out 7
Multi-Channel In 7
RS232C •
Speaker Terminal L, C, R, Ls, Rs, Cs plus Spkr "B"
D-Bus RMC Out 1 (I/O)
AC Outlets 1/1 (switched / unswitched)
Front Inputs 3 (L/R, Composite and S video)
Headphone Out •
