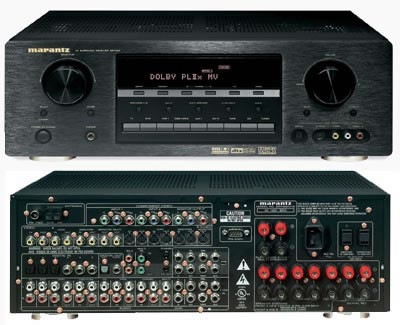

The SR7400P's video up-conversion allows installers to connect a multitude of video sources and integrate them with today's display technologies like plasma monitors and projectors with just one set of cables. All of these features plus many more coupled with an aggressive price make the Marantz Professional SR7400P receiver ideal for any installation.
FEATURES:• Processing for: Dolby Digital EX, DTS ES, (Discrete 6.1, Matrix
• 6.1, Neo:6, 96/24) Dolby Pro Logic II (Movie, Music), Dolby Pro
• Logic IIx (Movie, Music, Game), SRS Circle Surround II
• 105 W x 7 (8 ohm)- All Discrete Amplifier Stages
• 192kHz/24-Bit Crystal DAC's for all 8 chipsets
• 32-Bit DSP Surround Processing Chip
• Video Off Mode
• SRS TruSurround Headphone
• FM/AM Tuner with 50 Presets for Instant • Favorite Station Recall
• Speakers A and B Functionality
• Component Video Switching Component Video Switching
• Composite/S-Video Inputs and Outputs
• 7.1 Channel Direct Inputs
• 8 Channel Pre-amp Outputs
• On Screen Display via All Video Outputs
• Video Up-Conversion System
• Front Optical Aux Input
• New Programmable, Learning Remote Control
TECHNICAL SPECIFICATIONS:Audio Section:• Power Output: (8 Ohm) 105 x 7 (=0.08%, 20 Hz - 20
• Signal to Noise: 105 dB
• Freq. Response:(Analog In) 10 Hz - 100 kHz (+/- 3 dB)
• Freq. Response: (Dig In) 8 Hz - 45 kHz (+/- 3 dB)
• Input Sensitivity: 168 mV/ 47 K ohms
Video Section:• Television Format: NTSC
• Input Level/Impedance: 1 Vp-p/75 ohms
• Output Level/Impedance: 1 Vp-p/75 ohms
• Video Freq. Response: 5 Hz - 8 MHz (-1 dB)
• Video Freq. Component: 5 Hz - 80 Mhz (-1 dB)
• S/N Ratio: 60 dB
• Tuner Section: FM
• Frequency Range: 87.5 - 108.0 MHz
S/N Ratio (Mono/Stereo) Mono/Stereo 75/70 dB
Distortion (Mono/Stereo) 0.2% / 0.3 %
Channel Selectivity +/- 300 kHz 60 dB
Usable Sensitivity IHF 1.8 V/16.4 dBf
Channel Separation 1 kHz 45 dB (stereo)
Image Rejection 98 MHz, 70 dB
Tuner Output Level 1 kHz, +/- 75 kHz Dev 800 mV
Tuner Section AM
Frequency Range 520 - 1710 kHz
S/N Ratio 50 dB
Distortion 400Hz, 30 % Mod. 0.5 %
Channel Selectivity +/- 20 kHz 70 dB
General
Color Black
Front Panel Metal Alloy
Remote Control RC1400
Power Requirement AC 120 V/60 Hz
Power Consumption 540 W
Dimensions (Inches) 175/16" x 67/16" x 167/16" (181/4" including
terminal & volume knob)
Weight 30.9 lbs.
Accessory 4RU Rack kit included
