Dual Channel 15 band Equalizer with Separate Gain controls. Individual 1/3 Octave sliders for fine tuning each frequency. Easy to read controls and LED indicators. Convenient Low Cut and Bypass switch.

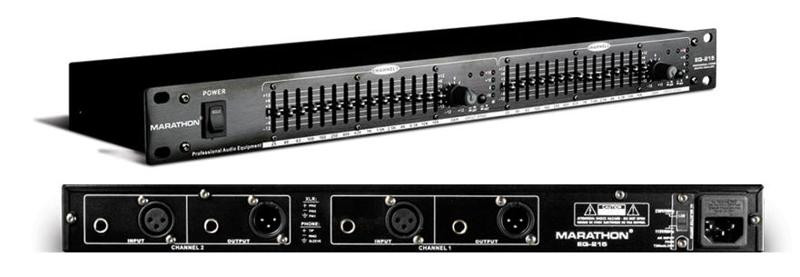

Front Panel Features:• On/Off Switch
• Channel Level
• Low Cut LED Indicators
• Low Cut Switch
• Channel Bypass LED Indicators

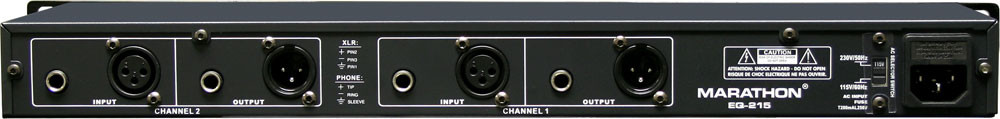

Rear Panel Features:• Input Connectors 1/4 XLR
• Output Connectors 1/4 XLR
• AC Voltage Selector Switch
• Fuse Compartment
• Power Connection
Specifications:• Frequency Bands: 2 x 15 1/3 Octave
• Input Impedance: 20K ohms Unbalanced 40K ohms Balanced
• S/N Ratio: >95dB
• THD: 0.05%
• Channel Separation: Better than 50dB
• Output Impedance: 330 ohms
• Max Output Level: +21dB
• Range: +/-6dB, +/-12dB
• Range of Filter Control: +/- 12dB Select
• Power consumption: 100-120V/200-230V, 50/60Hz
• Dimensions: 19" x 2.54" x 5.9" (482 x 44 x 150mm)
• Weight: 5 lbs.
