Dual Channel 31 Band Equalizer with Separate Gain Controls. Individual 1/3 Octave slilders for fine tuning each frequency. Easy to read controls and LED indicators. Convenient Low Cut and Bypass switch.

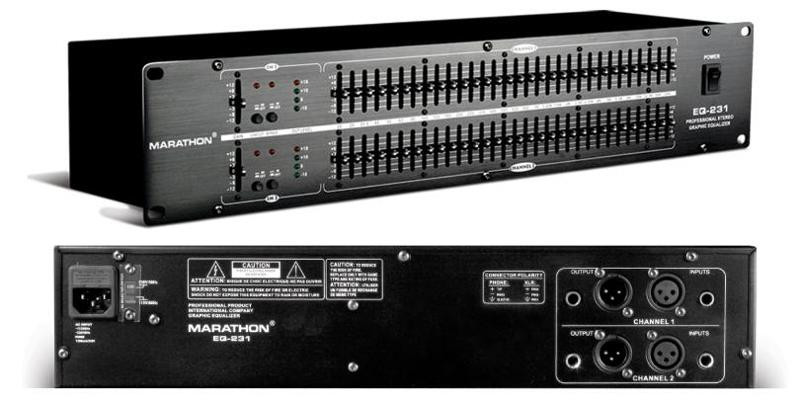

Front Panel Features:• On/Off Switch
• Channel Level
• Low Cut LED Indicators
• Low Cut Switch
• Channel Bypass LED Indicators

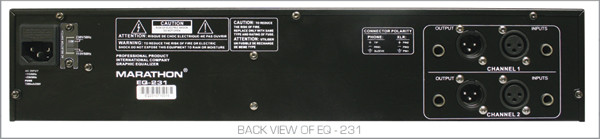

Rear Panel Features:• Input Connectors 1/4 XLR
• Output Connectors 1/4 XLR
• AC Voltage Selector Switch
• Fuse Compartment
• Power Connection
Specifications:• Frequency Bands 2 x 31 1/3 Octave, ISO Spacing
• Input Impedance: 20K ohms Unbalanced 40K ohms Balanced
• S/N Ratio: >95dB
• Channel Separation: Better Than 50dB
• Output Impedance: 330 ohms
• Max. Output Level: +21dB
• Range Filter Control: +/-12dB
• Power Consumption: 100-120V/200-230V, 50/60Hz
• Dimensions: 19"W x 3.5"H x 5.9"L
• Weight: 7 lbs.
