2 Band Stereo Crossover has low, High Gain Control and simple frequency adjustment and separate subwoofer adjustment & gain control. A low cut rumble filter and phase reverse button.

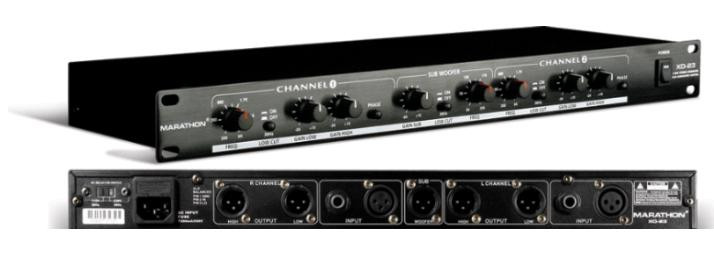

Front Panel Features:• Power Switch, Phase Switch
• Crossover Frequency Control
• L/H Output Level Control
• Subwoofer Output Level Control
• Sub Crossover Frequency Control

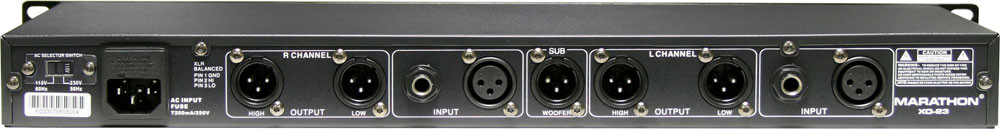

Rear Panel Features:• Fuse Compartment
• Input Connectors 1/4 XLR
• Output Connectors 1/4 XLR
• AC Voltage Selector Switch
• AC Cord
Specifications:• 2-Way Stereo Crossover plus Subwoofer Control
• Subwoofer: 50Hz-250Hz, Low Mid/High: 480Hz-7kHz
• Filter Type: 2nd Order, 12dB/Octave
• Inputs: Balanced XLR and Unbalanced 1/4"
• Frequency Response: 20Hz25KHz, +0/-1dB
• Input Impedance: 100K Ohms, Output 220K Ohms
• S/N Ratio: >-80dB
• THD: 0.05%
• AC Voltage: 100120/60Hz or 200240/50Hz VAC selectable
• Dimensions: 19" x 5.75" x 1.73" (482 x 146 x 44 mm)
• Weight: 4 lbs. (2.0 kg)
