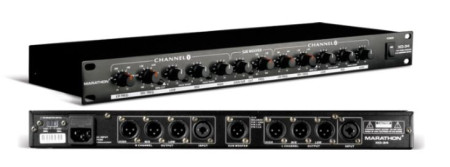

Marathon MA-XO34 3-Way Stereo Crossover Plus Subwoofer Control

marathon ma-xo34
marathon ma-xo34 Marathon MA-XO34 3-Way Stereo Crossover Plus Subwoofer Control
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Want it for less? Check all used and new prices
XO-34 3 Band Stereo Crossover has it's own level and frequency control knobs, for the Low, Mid, High, and a separate mono subwoofer output. A low cut rumble filter and phase reverse button.

Front Panel Features:
• Power Switch
• L/M/H output Level Control
• 30Hz Low Cut Switch
• MH Crossover Frequency Controls
• LM Crossover Frequency Controls
• Phase Switch
• Subwoofer Output Level Control

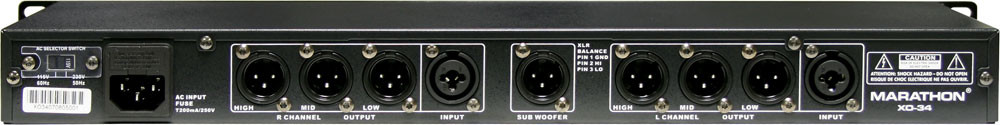

Rear Panel Features:
• AC Cord
• Output Connectors
• Stereo Input Connectors
• Subwoofer Output Connectors
• AC Voltage Selector Switch
• Fuse Compartment

• 3-Way Stereo 4-Way Mono Crossover Plus Subwoofer Control
• Subwoofer: 50Hz-250Hz, Low/High: 250Hz - 6KHz, -24/10dB
• Filter Type: 2nd Order, 12dB/Octave
• Balanced XLR and Unbalanced 1/4"
• Input Impedance: 100K Ohms
• Frequency Response: 20Hz25KHz, +0/-1dB
• Output Impedance: 220 Ohms
• Low Cut Filters: 30Hz/-3dB, 12dB/Octave
• S/N Ratio: >-95dB
• THD: 0.05%
• Fuse: T200mA/250V, 5mm x 20mm
• AC Voltage: 100120/60Hz or 200240/50Hz VAC selectable
• Dimensions: 19" x 5.75" x 1.73" (482 x 146 x 44 mm)
• Weight: 4.2 lbs. (2.0 kg)

Additional Information

Product ConditionNew - On Clearance
