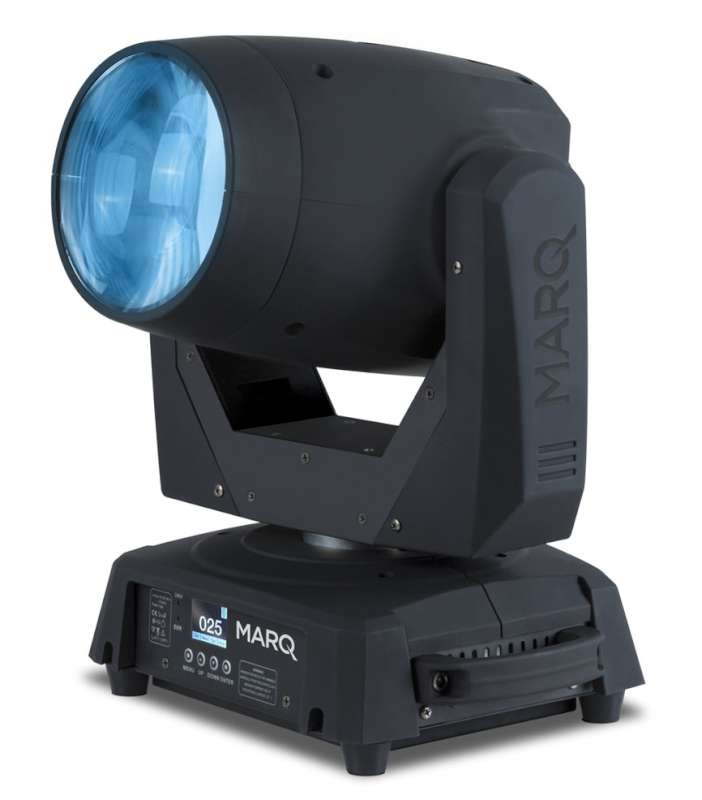

With its powerful 120W LED lamp, the GestureBeam 500 projects a brilliant, crisp, tight beam for precise aerial effects and also offers a searchlight feature with stand alone sky-scanning mode. Four slave modes create complex auto programs without a DMX controller and the full color menu conveys all the essential information quickly and clearly.
Features:• 120W LED
• Motorized focus control via DMX or stand-alone menu
• Searchlight Mode in stand-alone operation
• 4 slave modes create complex auto programs without a DMX controller
• Manual selections enable pinspotting a cake or projecting a gobo without DMX controller
• Prism rotation & indexing achieve the perfect position every time
• Full-color menu: Easy-to-read, detailed menu system
• -turn mounting bracket included for faster setup between shows
• Power Linking enables faster setup with fewer cables
Specs:• DMX Channels: 8 or 15
• DMX Connectors: 3-pin DMX in/out
• Pan and Tilt: 540/270
• Pan and Tilt Ranges: 540, 360, 180 pan/270, 180, 90 tilt
• Colors: 8 + white, split colors, scrolling
• Gobos: 8 + open, gobo shake & scrolling
• Gobo Size: 23.5 mm outside, 19 mm image, 1.1 mm max thickness
• Focus: Motorized + Frost
• Prism: 3 facet, with rotation and indexing
• Light Source: 75w White LED
• Beam Angle: 5
• Illuminance: 81,400 lux @ 3M
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-switching)
• Mounting: 1/4 turn, Omega Clamp Include
