High Resolution, 960 234 pixels, 224,640 total.

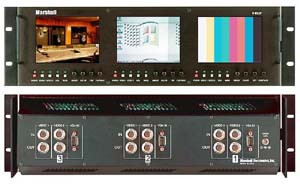

Ultra bright 210 candle luminance. The vr53p is a rack mounted unit that has three independently controlled 5" active matrix LCD panels with loop through capability.
FEATURES:• Allows 90 degrees of tilt while mounted in rack.
• Two composite video inputs per monitor with loop through capability and automatic 75 Ohm termination.
• Low power consumption and heat dissipation for mobile applications
VGA inputs for computer multi media monitoring
Individual color, tint, brightness and contrast controls.
• Built-in Color Bar Generator.
TECHNICAL SPECIFICATIONS:• Display: 5" lcd Active Matrix
• Viewing Area: 4.75" 2.95" each panel
• Dot Pitch: 0.107mm 0.320mm
• Picture Elements: 960H 234V
• Inputs: 2 NTSC, 1 VGA per panel
• Color Bars: Built into unit
• Dimensions: 19.125"W 5.14"H 3.75"D
• Power Consumption: 12VDC, 2.0 Amps
