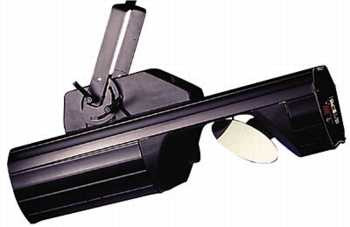

Martin 918 ROBOSCAN Intelligent Scanner

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

martin 918roboscan
Images may show accessories or configurations not packaged with this item.
The unique combination of power and compactness gives the Pro 918 application in all professional lighting markets - touring and clubs to promotional applications, cruise ships to theme parks.

FEATURES:
• Beam Effects :Motorized iris :Motorized hard-edged focus :Rotating 3-facet prism:Variable/random pulsating dimmer: Combined rotating prism/gobo macros
Dimmer/Shutter/Iris: Mechanical dimmer/shutter: Variable/random pulsating iris: Variable/random strobe up to 23 Hz
• Pan/Tilt : Pan: 180 degrees of movement with 0.028 degree resolution
Tilt: 72degrees of movement with 0.056degree resolution 197 x 89 degrees of coverage at 17 degrees 203 x 95 degrees of coverage at 23.5 degrees
• Color: 2 motorized color wheels - 9 positions plus open (each): Interchangeable color filters on wheel no. 1: Random color change: Select all 67 color combinations on one fader
• Gobos: Rotating gobo wheel - 5 positions plus open
Static gobo wheel - 9 positions plus open
• Optics :17 degrees focused beam angle, standard
23.5 degrees option available: 8500 lm total luminous flux :234K candela (w/standard lens) :Anti-reflection coated achromatic lenses
• Sources
• Philips MSR 575/2 (575W, 85 lm/w, 6100K, 1000 hour life) lamp
• Philips MSD 575 (575W, 78 lm, 5700K, 2000 hour life) lamp
• Martin RS-485 and DMX 512 protocols
8 and 16 bit pan/tilt tracking and vector modes
12-16 DMX channels
• Set address, mode etc., from control panel or serial link
• Download updates via the Internet, upload via serial link
• Effects calibration via control panel or serial link
• Remote lamp on/off
• 4 digit LED control panel
• Automatic color wheel, static gobo wheel, and rotating gobo position correction
• Readout lamp usage, temperature, DMX values etc.
• Built-in test of all effects
• Silent fan cooling
• Size w/o bracket (L x W x H): 795 x 330 x 308 mm (31.3 x 13.0 x 12.1 in)
• Weight: EU version: 34 kg (75 lbs)
• US version: 36.5 kg (80.3 lb)
• Voltages (EU version): 200/230/245 V, 50 Hz; 208/227 V, 60 Hz;
• Voltages (US/Japan version): 100/120/230 V, 50/60 Hz; 245 V, 50 Hz;
• Consumption: 695 W, 3.8 A @ 230 V

Additional Information

UPC N/A
SKU 918ROBOSCAN
Manufacturer Martin Professional
Product Condition New - On Clearance
Returnable No
