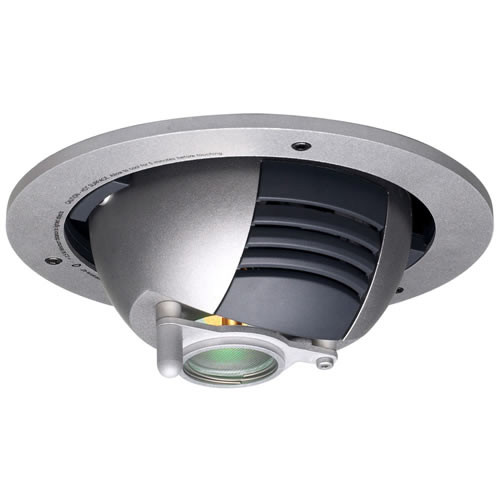

Martin ALIEN-05 Recessed Color Changer

Features 50 W halogen 8 interchangeable dichroic colors Choice of 24 or 26 lens 0-100% intensity control Recess mounting DMX control Physical Diameter of luminaire at widest point: 195 mm (7.7 in.) Depth of recessed base: 118 mm (4.6 in.) Maximum protrusion from mounting surface: 65 mm (2.6 in.) Weight: 1.2 kg (2.6 lbs.) Lamp Type: 50 W, 12 V halogen, integral reflector Socket: GX 5.3 Fitted as standard: Osram ENL 50 W, 12 V, 3000 hrs. Dynamic Effects Color wheel: 8 color filters plus open, full (indexed) and split (stepless scroll) positions Control and Programming Control options: DMX, stand-alone, Martin Oracle control panel Required control hardware: Alien 05 Driver Construction Color(s): White, titanium Housing: Aluminum and polyamide Installation Location: Ceiling or wall panel recommended Orientation: Any Aiming: +/- 47 tilt, 360 rotation Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.) Minimum clearance around fan and air vents: 50 mm (2.0 in.) Maximum cable distance to transformer: 45 cm (17.7 in.) Maximum thickness of ceiling/wall panel: 20 mm (0.8 in.) Diameter of mounting hole: 182 mm (7.2 in.) Connections Power input from 12 V halogen lamp transformer: Terminal block Data connection: RJ-45 sockets Electrical AC power: External 12 V transformer, Martin 35 - 105 W electronic transformer recommended, Alien 05 Eyeball requires Cooper Lighting housing/transformer Dimmable: Yes, with Martin transformer and IGBT trailing edge dimmer (Alien 05 Eyeball not dimmable) Thermal Maximum ambient temperature (Ta max.): 40 C (104 F) Maximum surface temperature, steady state, Ta=40 C: 90 C (194 F) Cooling: Convection
