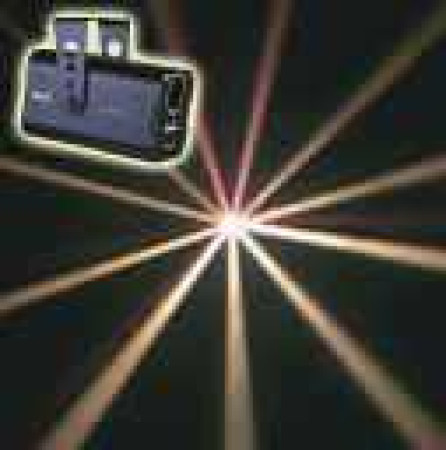

The Discovery is an aggressive lighting effect that uses a 100 watt lamp, revolving reflector, color wheel, and built-in microphone to create dynamic cone-shaped sound-activated effects.
FEATURES:
• Length: 340 mm (13.4 in) Width: 268 mm (10.6 in) Height: 295 mm (11.6 in)
• Weight: 8 kg (17.6 lbs)
• Lamp: 12 V, 100 W halogen, with reflector ANSI code: EFP; Base: GZ 6.35
• Mounting points: One 13 mm hole and four 6 mm holes in adjustable mounting bracket
• Minimum distance to combustible materials: 0.1 m (4 in)
• Minimum distance to illuminated surfaces: 0.3 m (12 in)
• Maximum ambient temperature (Ta): 40 C (104 F)
• Maximum surface temperature: 85 C (167 F)
• Total heat dissipation: 375 Btu/hr
• AC input: 3-pin IEC male socket
• Wiring options, "EU" model: 230/245 V, 50-60 Hz
• Wiring options, "US" model: 105/125 V, 50-60 Hz
• Maximum power and current: 110 W, 1.1 A @ 125 V
• Housing: steel; Finish: electrostatic powder coating; Color: black; Protection factor: IP 20
Accessories
• Martin DMX Switch Pack, 210 - 245 V: 90758200
• Martin DMX Switch Pack, 100 - 130 V: 90758300
• 12V/100W 1500 h halogen lamp: 97000000
• 12V/100W 50 h halogen lamp: 97000003
• G-clamp: 91602003
• Half-coupler clamp: 91602005
Included items
• Mains cable, 1.5 m, IEC 3-pin: 11501012
• User manual: 35000037
• Mounting bracket: 21020650
• 2 hand nuts: 08133401
• 2 washers: 08260101
1 Year Limited Warranty
California Prop 65 -
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
