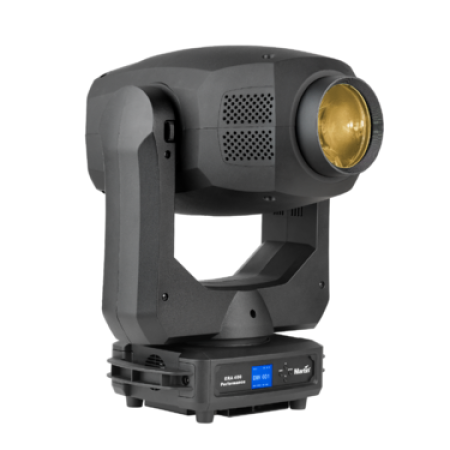

The ERA 400 Performance WRM includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage. When fully focused, gobos can be nicely framed with a soft edge, and each of the four framing blades can cross the entire beam independently for a full blackout. The entire system can rotate 90 degrees, allowing designers to direct light exactly where they want it to go and achieve unique movement effects not otherwise possible.
Whether being used for small and mid-sized theaters, concert and touring, live TV productions, corporate shows, cruise lines, or houses of worship, the Martin ERA 400 Performance WRM is ideal for a long list of scenarios, requiring a truly versatile LED profile that offers near limitless design and usage potential.
Features • Bright 300 watt / 3,200K LED light source
• 6,000 lumen output
• Smooth electronic dimming and fast strobe effects
• Crisp optics with flat field
• 1:3 Fast zoom
• CMY color mixing - Vibrant color mixing with a superior palette of colors matching the MAC range
• 9-slot color wheel for added color choice and split color effects
• Full Curtain Framing blades with +/- 45 rotation of entire system for flexible shape generation
• 7 rotating/indexing gobos All renowned Martin glass gobos
• 9 static gobos for great morphing effects
• Iris Fast and tight iris
• 3-facet prism Real beam separation with rotation and index control for dynamic effects
• Compact and low weight design
Specifications Dynamic Effects Color mixing: CMY, independently variable 0-100%
Color wheel: 9 color filters plus open
Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake Iris: 0-100%
Framing: Rotatable framing module, +/- 45, with 4 individually controllable full framing blades with variable angle and position. Prism: Rotating/indexing three-facet prism
Electronic dimming: 0 - 100%, four dimming curve options Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Zoom: Motorized
Pan: 540, coarse & fine control and speed
Tilt: 260, coarse & fine control and speed
Focus: Motorized
Control and Programming Control options: DMX
DMX channels: 30
16-bit control: Dimming, pan and tilt
Setting and addressing: Control panel with backlit LCD display DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Optics Front lens diameter: 110 mm
Zoom range: 10 - 30
Light source: 300W LED engine
Minimum LED lifetime: 20000 hours (to >70% luminous output)* Binning: Tight color and flux binning
*Manufacturers figure obtained under manufacturers test conditions
Connections AC power in, thru: Neutrik powerCON TRUE1
DMX data in/out: 3-pin & 5-pin locking XLR
Electrical AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 6.0 A
Power Factor: 0.99 @ 120 V , 0.97 @ 230 V
Typical current draw: 3.8 A @ 120 V , 2.0 A @ 230 V *
Power Consumption
Typical: 455 W *
Idle: 44 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Thermal Cooling: Forced air (temperature regulated, low noise) Maximum ambient temperature (Ta max.): 40 C
Minimum ambient temperature (Ta min.): 0 C
Maximum surface temperature, steady state, at 40 C ambient: 70 C (158 F)
Total heat dissipation (calculated, +/- 10%): 1550 BTU/hr.
