Martin IMAGESCAN Image Projector

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

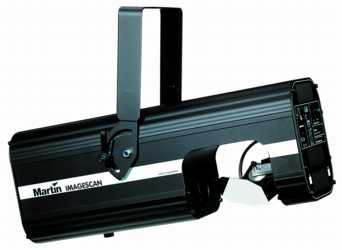

martin imagescan
Images may show accessories or configurations not packaged with this item.
The Imagescan is a moving mirror luminaire designed for the projection of corporate or team logos, promotional messages, designs, shapes, patterns, or other customized images.

• Beam Effects: Projected slide/gobo
• Shutter: Mechanical shutter
• Gobos: Motorized drive with 16-bit resolution: 1 indexed rotating, interchangeable slide or gobo: Removable holder accepts any: 35 mm slide: 60 x 70 mm transparency/overhead film: Size-D gobo: Size-E gobo (with adaptor)
• Pan and Tilt: Microstep-driven 7.5 x 11 cm moving mirror: 216 degree pan in 0.028 degree steps
83 degree tilt in 0.056 degree steps
• Focus: Motorized focus 17 degree focused beam angle: Optional 23 degree wide angle
• Optics: 1200 lm total luminous flux: Precision coated lenses: Aspheric glass reflector
• Sources: Philips MSD 250 (250 W, 5600K, 2000 hours): Philips MSD 200 (200 W, 5600K, 2000 hours)
• Control Interface: Control via Martin RS-485 and DMX-512 protocols: 8 and 16 bit pan/tilt tracking resolution : Channels/DMX mode: 7/1, 9/2 : Programmable stand-alone mode via remote: Built-in memory: Address selection via DIP switches
• Accessories/Options: Remote control : 23 degree wide angle lens: Size-E gobo adapter: Flight case
• Cooling: Fan cooling
• Measurements: Size with standard bracket (L x W x H): 617 x 343 x 425 mm (24.3 x 13.5 x 16.7 in)
• Weight: 16 kg (36 lb)
• Shipping size: 693 x 299 x 321 mm (52.5 x 17.7 x 17.7 in)
• Shipping weight:16.5 kg (37 lb)
• Electrical: AC supply: EU model: 230/240/250 V, 50 Hz: US model: 100/110/120/225 V, 50/60 Hz
• Power, current consumption: 290 W, 1.7 A at 230 V
• 2 Year Limited Warranty
