The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
• Robust roadworthy design
• Integrated Digital Remote Control
• DMX with RDM
• Floor standing or truss mounting (hanging bracket included)
• 1,150 W heat exchanger
• 600 m (21,189 ft.) per minute fog output
• Variable output control for subtle effects
• Continuous effect output
• Compatible with a wide range of JEM Pro-Fog fluids
• 2.5-l Fluid reservoir with quick-connect fitting
• Easy external fluid connection
• Optional Ducting Kit
PhysicalLength: 485 mm (19.1 in.)
Width: 335 mm (13.2 in.)
Height: 242 mm (9.6 in.)
Height with hanging bracket: 333 mm (13.2 in.)
Weight, dry: 11.2 kg (24.7 lbs.)
Weight, filled: 13.7 kg (30.2 lbs.)
PerformanceCoverage volume: 600 m3 (21,189 ft3) per minute
Fluid consumption (max.): 100 ml per minute
Maximum operating time, maximum output, 2.5 l of fluid: 1.2 hours
Ready time: 7-minutes
Continuous effect output
Control and Programming

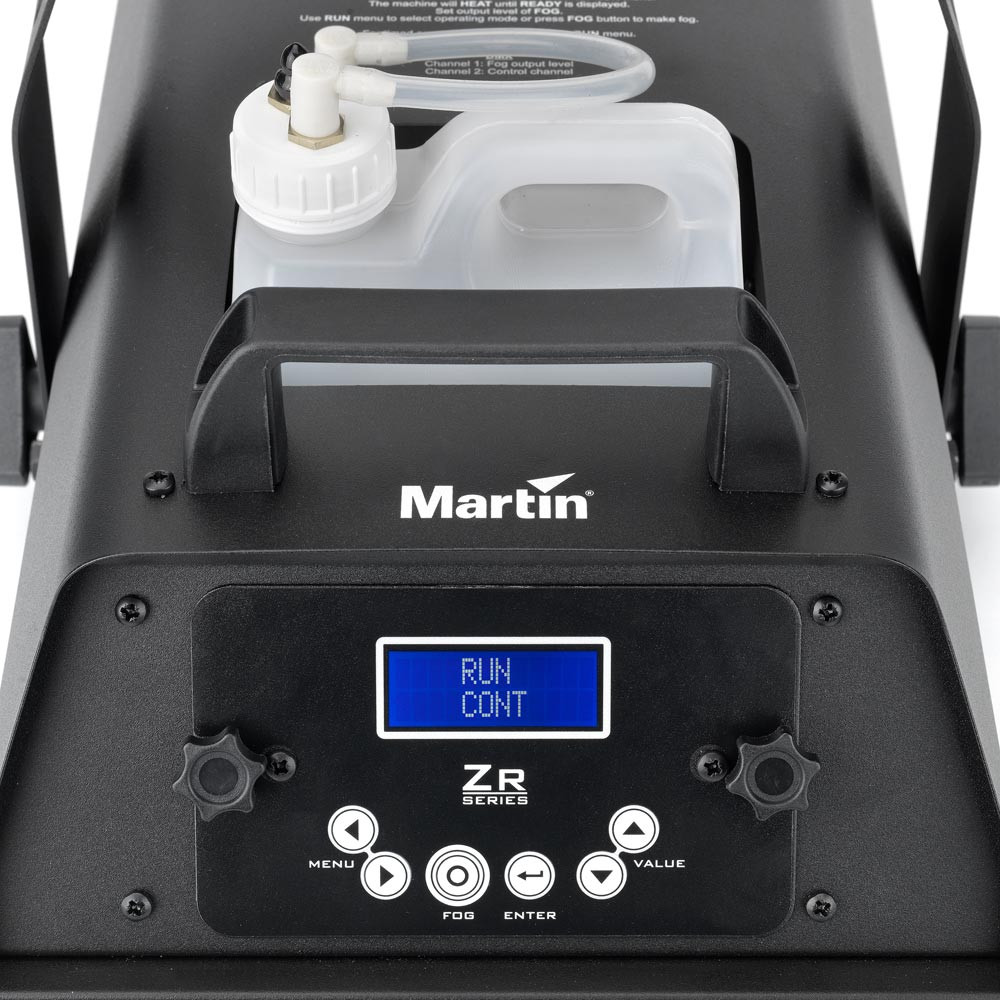

Control options: Integrated digital remote control, DMX, master/client link mode
Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
ConstructionHousing: Steel and aluminum
Color: Black
Heat exchanger: 1150 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation

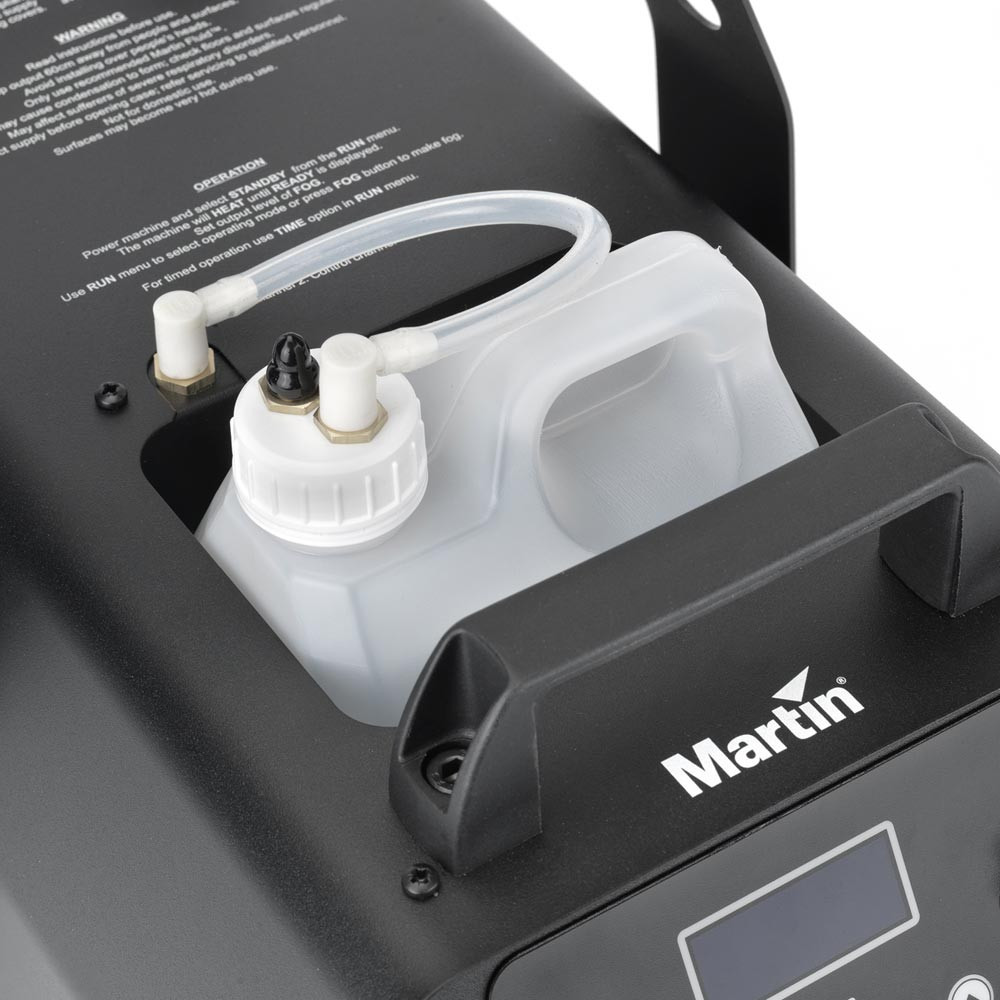

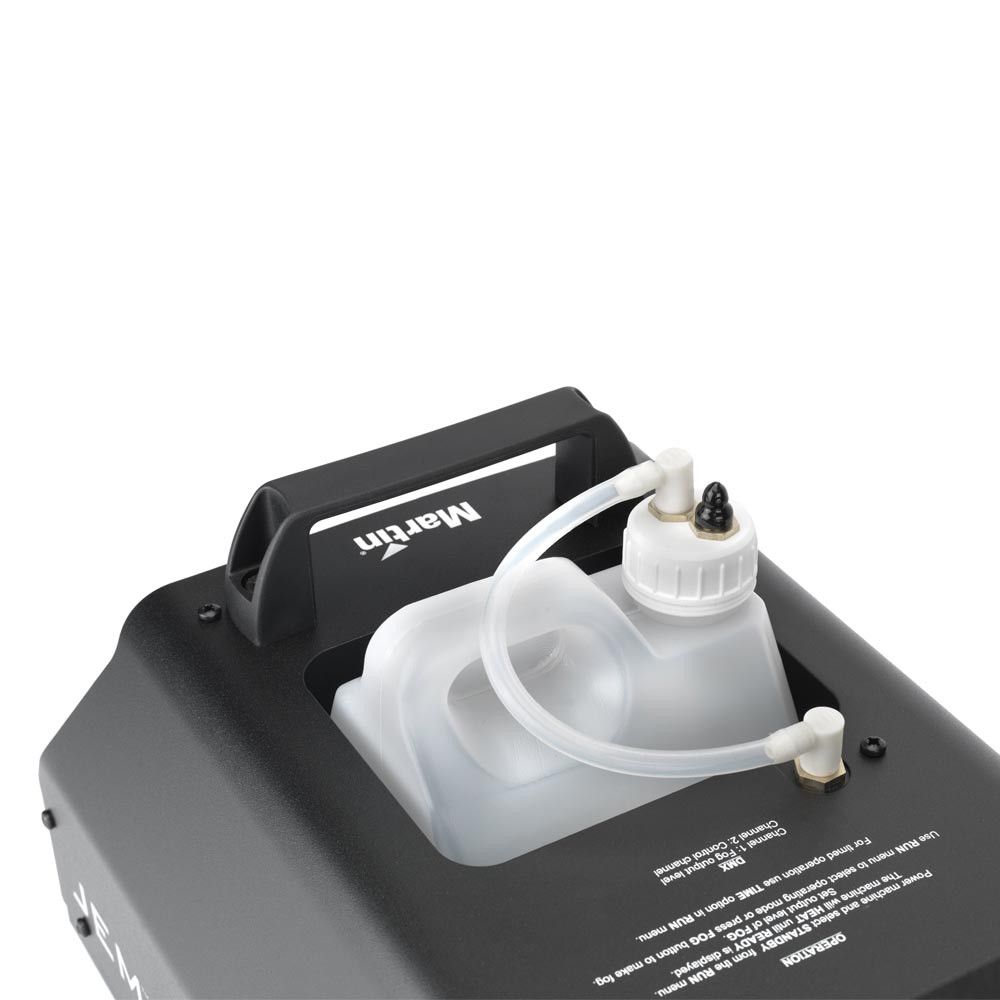

Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
Remote Control: Integrated digital remote with 3 m (9.84 ft.) cable, 3-pin XLR connector
External Fluid Control: Fluid sensing

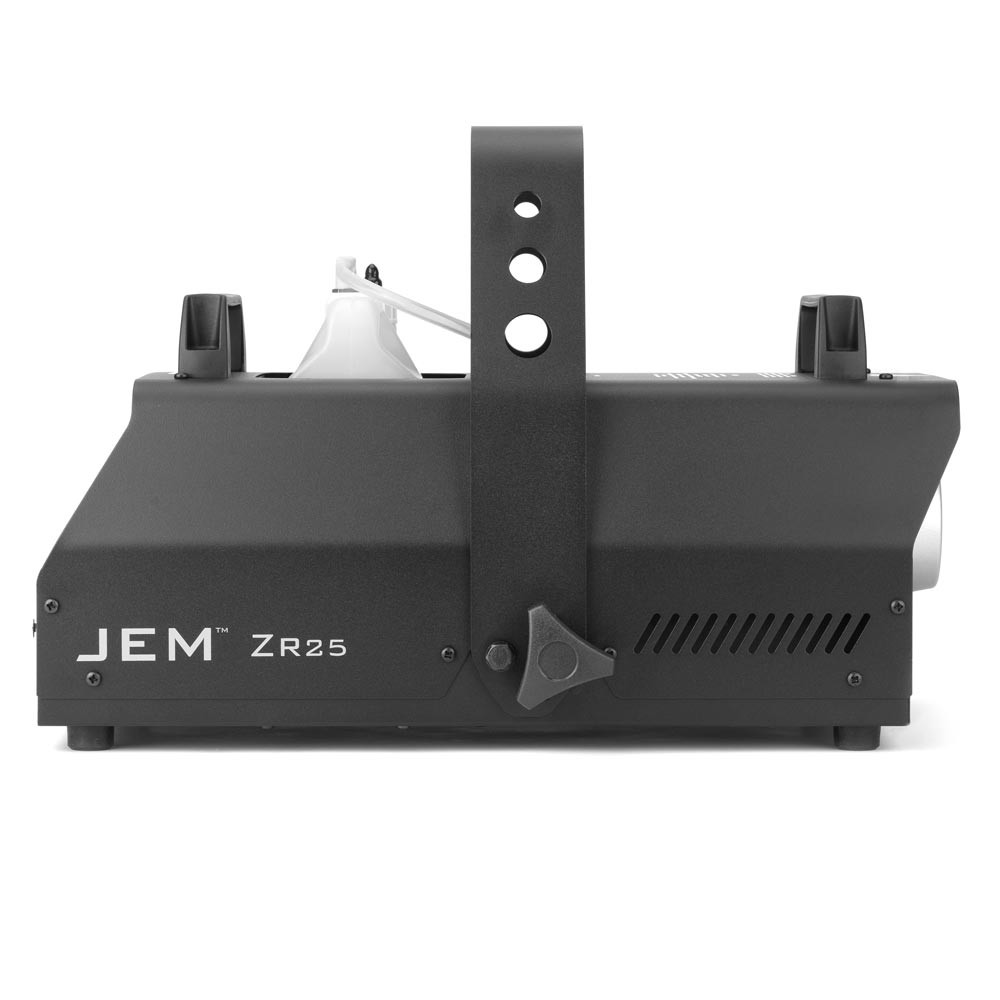

Hanging bracket: Integrated yoke with safety attachment point
InstallationMounting: Standing or hanging
Orientation: Up to +/-40 from horizontal
Clearance around machine: 100 mm (4 in.)

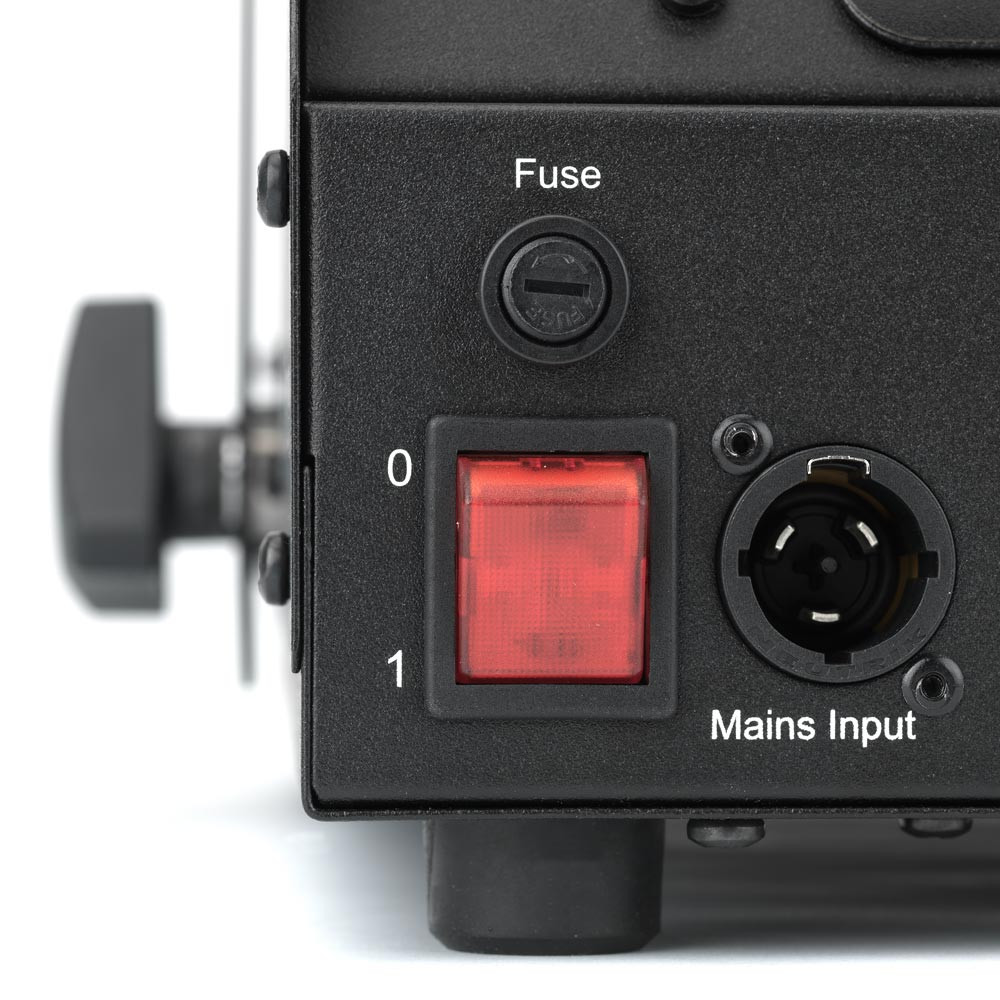

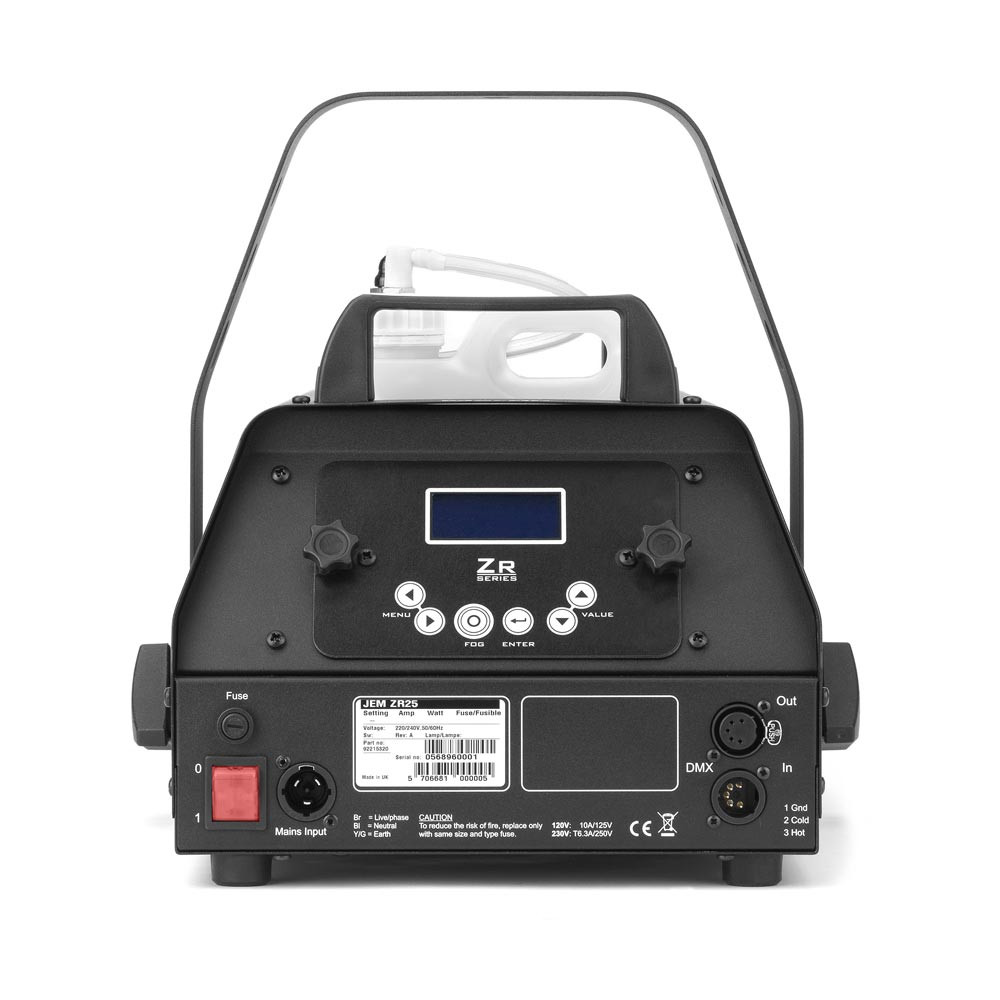

ConnectionsAC Power: Neutrik PowerCON TRUE1
DMX, link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
ElectricalAC power: 100-130 V nominal, 50/60 Hz
Main fuse: 10 AT (slow blow), 125 V
Typical power and current: 1050 W, 8.8 A*
*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.ThermalMaximum ambient temperature (Ta max.): 40 C (104 F)
Minimum ambient temperature (Ta min.): 5 C (41 F)
Exterior surface temperature, steady state: 30 C (86 F)
Maximum nozzle temperature: 290 C (554 F)
ApprovalsUS safety: UL 998
Included ItemsFluid reservoir, 2.5 l: P/N 34300521
JEM ZR Series Integrated Digital Remote Control: P/N 55765048
Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
Power input cable, US, 10 A, PowerCON TRUE1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N 11501044
Accessories
JEM ZR25 Ducting System with 5 m (16.4 ft.) 4" flexible ducting: P/N 92625012
JEM External Fluid Reservoir Kit, 25 l: P/N 92620035
Approved fluids*:
JEM Pro-Fog Fluid, Quick Dissipating
JEM Pro-Fog Fluid
JEM Pro-Fog Fluid, High Density
RUSH & THRILL Fog Fluid
Martin Pro-Clean and Storage Fluid
Approved discontinued fluids*:
Pro Smoke Studio (DX)
Pro Smoke Super (ZR)
Pro Smoke High Density (SP)
I-Fog Fluid
Regular DJ Fluid (DJ)
RUSH Fog Fluid
RUSH ELX Smoke Fluid
Martin Pro Clean Supreme
Service Tools:
Epsilon 5 AVR Programmer: P/N 50502004
Temperature Calibration Box: P/N 92620005
