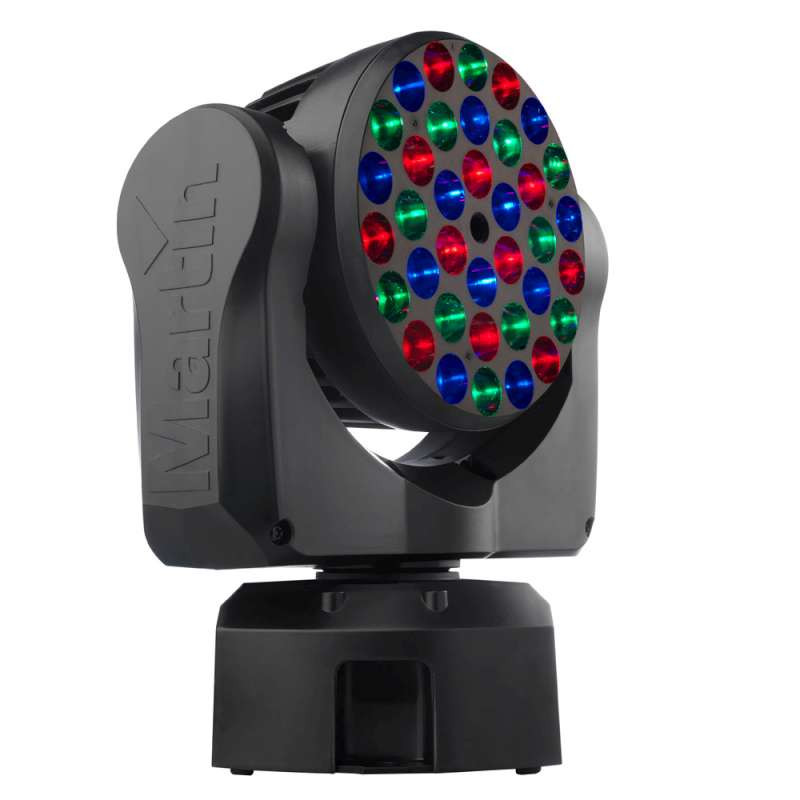

Martin MAC101 Moving Head

FEATURES:
• Variable CTC
• Color calibrated
• 2400 lm output
• Bright and tight beam (13 ?;eld angle)
• Smooth, electronic dimming
• High efficieny, low power consumption, long lifetime
• Ultra-compact, low weight design (3.7 kg)
• Rapid movement - the fastest MAC ever

Physical
• Length: 241 mm (9.5 in.) across yoke
• Width: 241 mm (9.5 in.) across yoke
• Height: 304 mm (12.0 in.)
• Weight: 3.7 kg (8.2 lbs.)

Dynamic Effects
• Electronic 'color wheel' effect: 33 LEE-referenced colors plus white, color wheel rotation effect, random color
• Color mixing: RGB
• Red: 0 - 100%
• Green: 0 - 100%
• Blue: 0 - 100%
• Color temperature control: Variable 2500 - 10 000 K
• Shutter effect: Electronic, with pulse and random effects
• Electronic dimming: 0 - 100%, four dimming curve options
• Pan: 540
• Tilt: 240
• Pan and tilt speed: Adjustable via onboard control panel and DMX

Control and Programming
• Control options: 3 control modes - RGB raw, RGB calibrated, Basic (RGB + CTC disabled)
• RDM: Implemented
• Control resolution: 8-bit, with 16-bit control of pan & tilt
• DMX channels: 8/12
• Setting and addressing: Control panel with backlit graphic display
• Protocol: USITT DMX512-A, ANSI/ESTA E1.20 RDM
• Transceiver: RS-485
• Fixture software update: Via DMX with Martin' USB Duo DMX Interface Box

Optics
• Light source: Cree XP-E high power emitters
• Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
• LED refresh rate: 1220 Hz
*Figure obtained under manufacturers test conditions

Construction
• Housing: High-impact flame-retardant thermoplastic
• Protection rating: IP20

Installation
• Mounting points: One M12 threaded hole for rigging clamp
• Location: Indoor use only, must be fastened to surface or structure
• Orientation: Any
• Minimum distance to combustible materials: 100 mm (3.9 in.) from head, no minimum distance from base
• Minimum distance to illuminated surfaces: 200 mm (7.9 in.)

Connections
• AC power input: Neutrik PowerCon
• AC power throughput: Neutrik PowerCon
• DMX data in/out: 5-pin locking XLR

Electrical
• AC power: 100-240 V nominal, 50/60 Hz
• Maximum total power consumption: 123 W
• Power supply unit: Auto-ranging electronic switch mode
• Main fuse: 5 AT (slow blow)
• Typical power consumption, all effects static, zero light output: <25 W

Thermal
• Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
• Maximum ambient temperature (Ta max.): 40 C (104 F)
• Minimum ambient temperature (Ta min.): 5 C (41 F)
• Total heat dissipation (calculated, +/- 10%): 420 BTU/hr.
