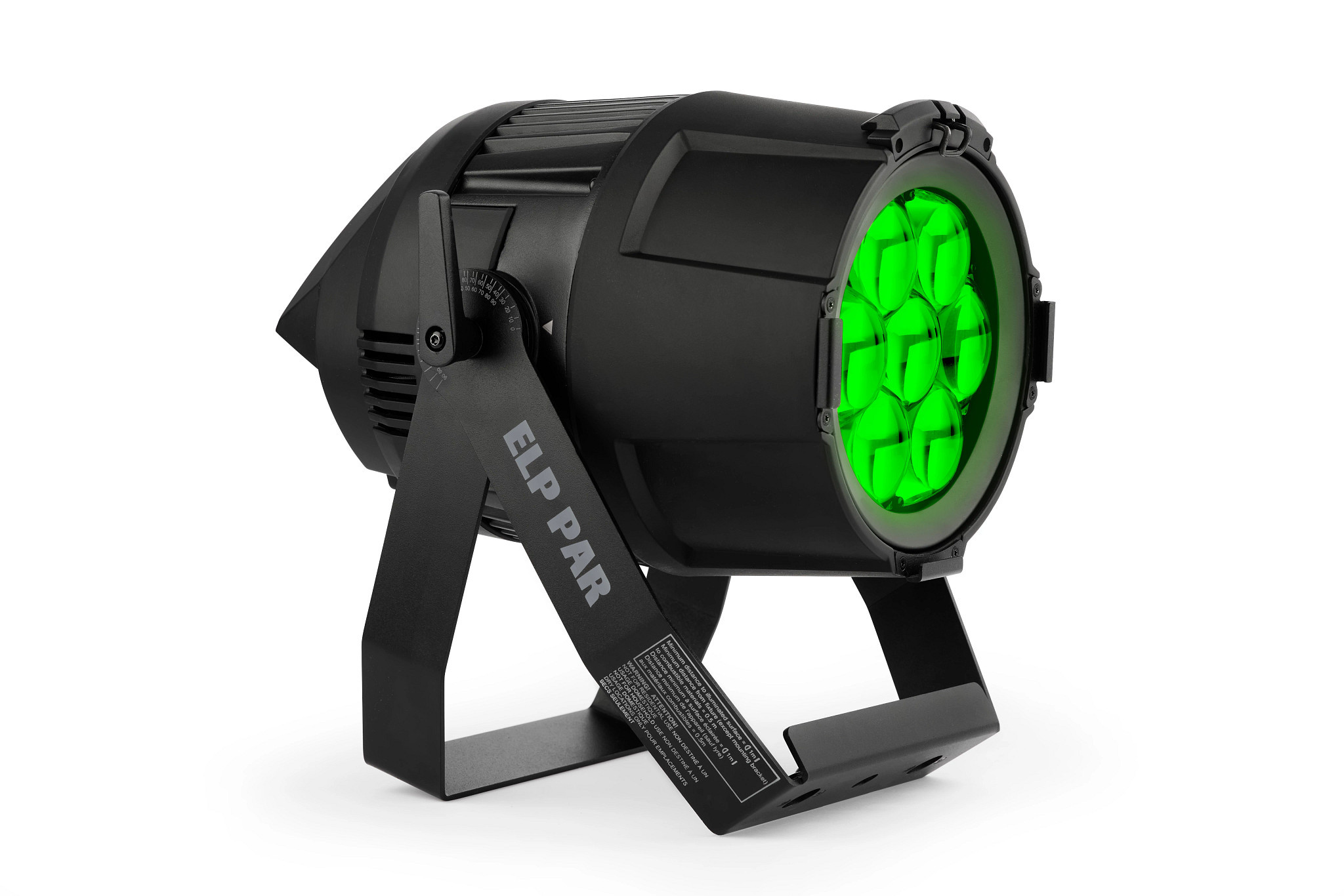

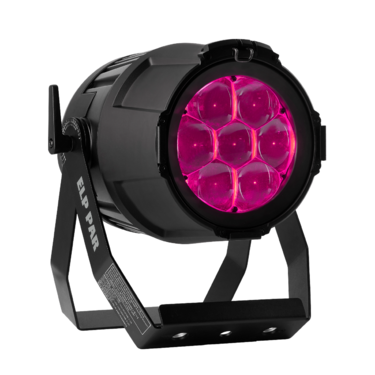

The ELP PAR makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that allows both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that allows RGB color mixing around your desired white point.
Whether lighting a theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.
Features • Light engine: 7 x 40W RGBW
• Full-gamut color-calibration system
• CTC control: 1,80012,850 K
• Lumen output: 3,500 lm
• Intensity: 390,000 cd
• Zoom: 4.2 - 58
• Quick Focus mode allows installation and focusing without the need for a console operator
• Clear of projection indicators allow quick installation
• Angled power and data connections support a clean cable run that does not impede the fixture or installation

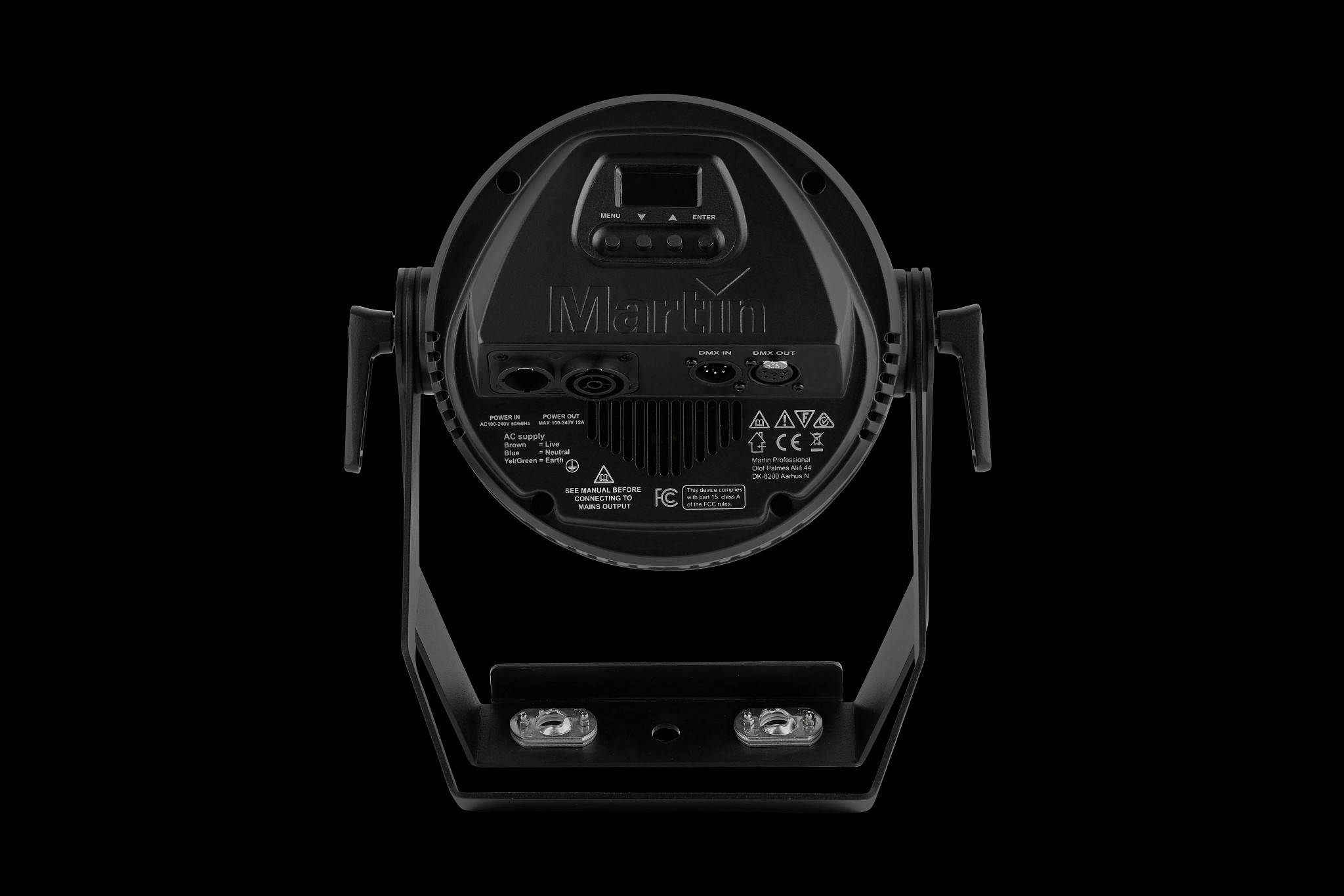

• Included truss and floor-mounting yoke with omega bracket connectivity
• Low-noise 33 dB Theatre mode operation
• IP20 rating
Physical Length: 312 mm (12.3 in.)
Width: 287 mm (11.3 in.)
Height: 401 mm (15.8 in.) with bracket
Weight: 7.8 kg (17.2 lbs.)
Dynamic Effects Color mixing: RGBW
Color presets: 48 color presets, virtual color wheel effects
Color temperature control: Variable 1,800 12,850K
Electronic dimming: 0 - 100%, four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Zoom: Motorized
Control and Programming Control options: DMX, RDM
DMX channels: 14
16-bit fine control: Dimming, RGB, zoom

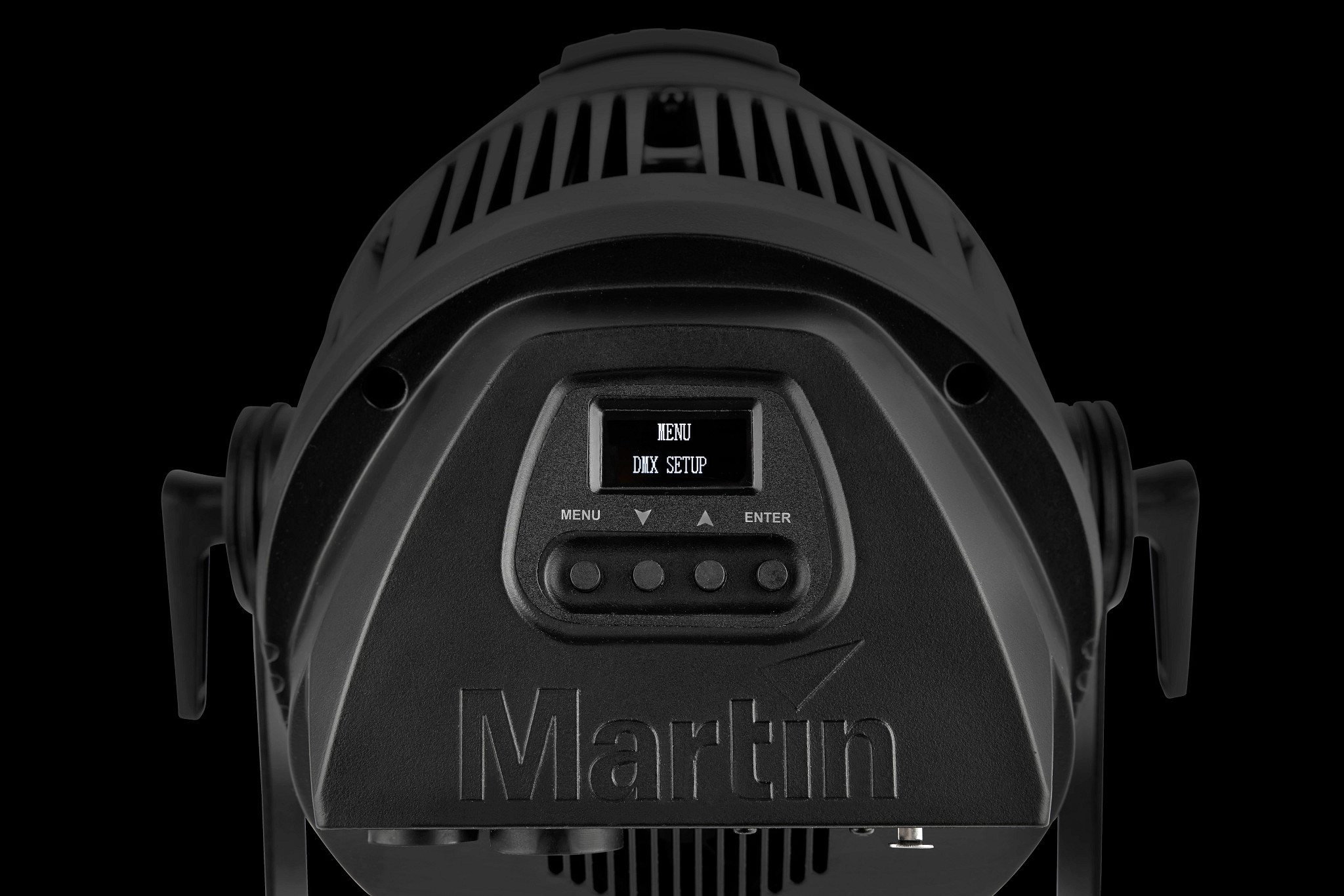

LED color management modes: Raw, extended and calibrated DMX address setting: Control panel with OLED display
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Firmware update: via DMX using Martin Companion

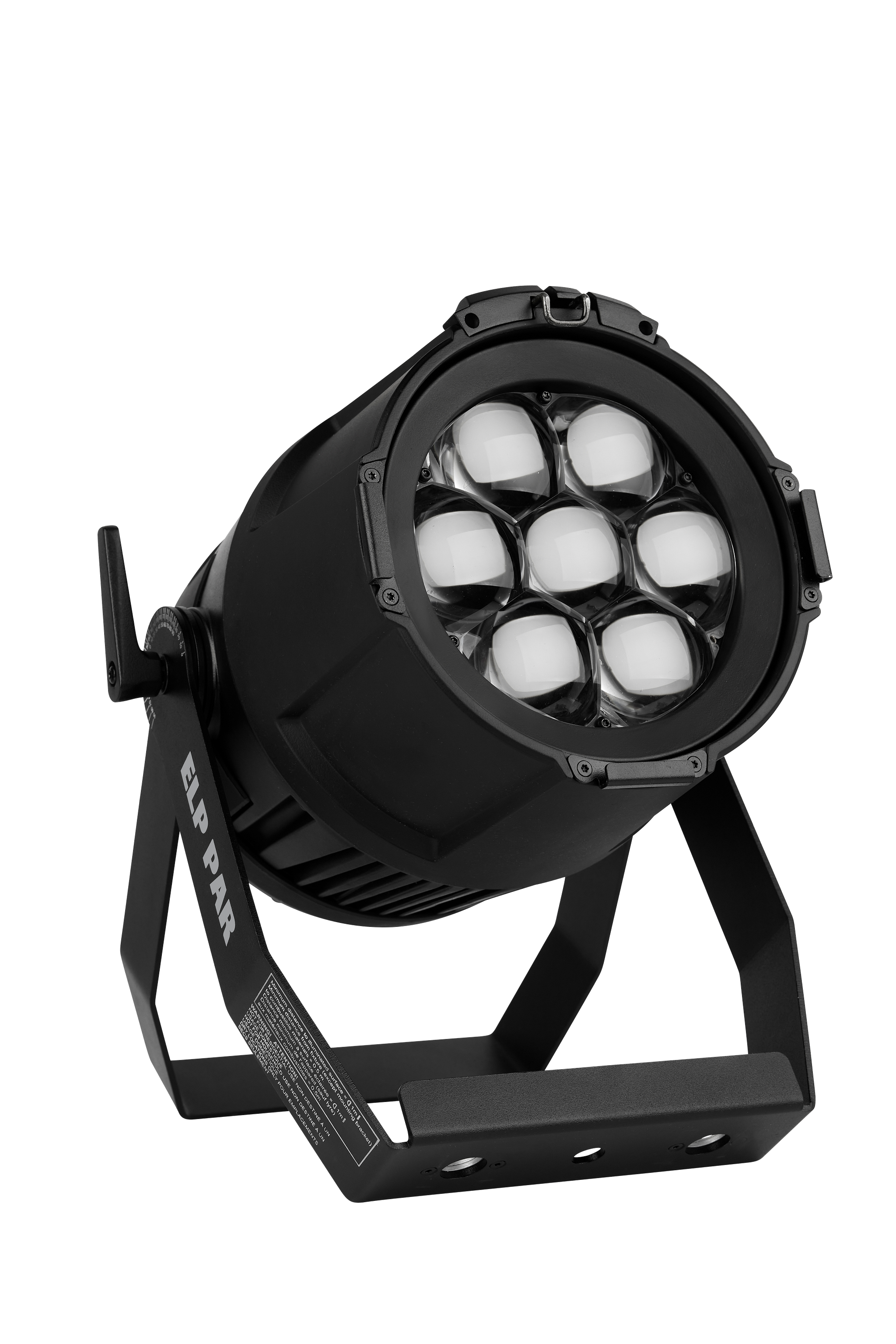

Optics and Photometric Data Light source: 7 x 40 W RGBW Osram LEDs
Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle (half-peak): 4.2 - 38.7
Field angle (one-tenth peak): 5.1 - 58.6
Cutoff angle (3%): 5.7 - 69.6
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
*Figure obtained under manufacturer's test conditions
Wide beam: 3525 lumens
Narrow beam: 1445 lumens
Fixture Center Intensity Narrow Beam: 390083 cd
Fixture Center Intensity Wide beam: 9957 cd
CRI (Color Rendering Index) : >70
CQS (Color Quality Scale): 83
TM-30 Rf (IES TM-30-15 Fidelity Index): 77
TM-30 Rg (IES TM-30-15 Gamut Index): 117
TLCI (Television Lighting Consistency Index): 61
CCT: 6500 Kelvin
LED refresh rate - Standard Mode: 3600 Hz
LED refresh rate - Theatre Mode: 19200 Hz
*All Photometric Data measured in steady state (30 minutes warm-up time) at 25C ambient.
Construction Housing: Aluminum and composite
Filter mount: 191 x 191 mm (7.5 x 7.5 in.)
Color: Black
Protection rating: IP 20

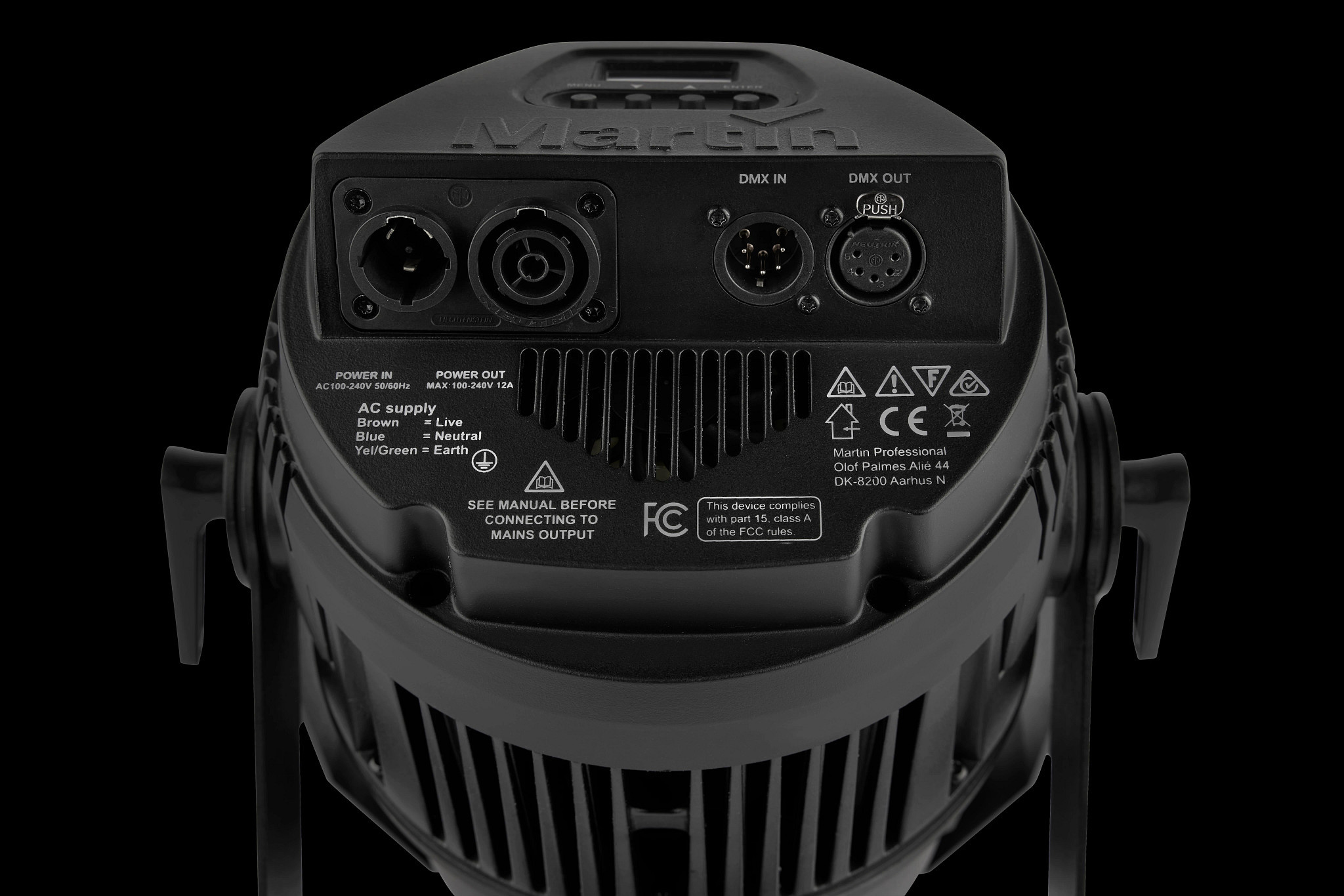

Connections AC power input/output: Neutrik PowerCON TRUE1 TOP
DMX and RDM data in/out: Neutrik 5-pin locking XLR
Electrical AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 240 V, 50 Hz: 8.7 A
Power Factor: 0.99 @ 100 V / 120 V , 0.94 @ 220 V / 230 V / 240 V
Typical current draw: 3.0 A @ 100 V / 120 V , 1.7 A @ 220 V / 230 V / 240 V *
Power Consumption
Typical: 300 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Thermal Maximum surface temperature: 65 C (149 F)
Cooling: Forced air (temperature regulated, low noise) Maximum ambient temperature (Ta max.): 40 C (104 F) Minimum ambient temperature (Ta min.): -10 C (14 F)
Total heat dissipation (calculated): 1170 BTU/hr.
Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.1 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 33.0 dB(A)
Environmental RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 14.9 lm/W
LWR*: 449 lm/kg (204 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015 Class B, EN 61547, EN 55032, EN 55035, EN 61000-3-2
Class A, EN 61000-3-3
US safety: UL 1573
US EMC: 47 CFR 15 Class A
Canadian safety: CSA E598-2-17 (CSA E60598-1)
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM
United Kingdom: UKCA
