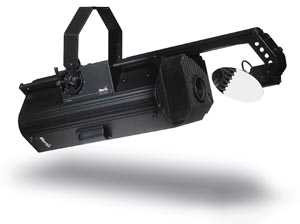

Martin PAL 1200 Intelligent Scanner

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

martin pal1200
Appreciated by professionals the world over, this revolutionary automated framing spot has been a regular recipient of awards from industry associations and professional groups alike.

• Beam Effects: Internal, rotating, motorized 4-shutter framing system: Frost filter
• Dimmer/Shutter: Combined mechanical dimmer/shutter : Full range, microstep-driven dimming: Variable strobe up to 4 Hz
• Color: Motorized color wheel: Full CMY subtractive color mixing: 4 interchangeable 52 mm dichroic color filters : 5600K/3200K dichroic CTC filter
• Gobos: Motorized gobo wheel: 4 indexible rotating gobos, 1 fixed gobo: Interchangeable, size-D
• Pan and Tilt : Pan: 287 degrees of movement with 0.028degree resolution: Tilt: 85 degrees of movement with 0.056 degree resolution (Total field = range plus beam angle)
• Focus: Motorized focus : Motorized zoom
15 to 26 degrees focused beam angle : Optional 10.4 to 14 degrees narrow angle : Optional 20 to 35 degrees wide angle
• Optics: 10,000 lm total luminous flux : (13,800 lm with optional condenser lens) : Precision coated lenses: Ellipsoidal aluminum reflector
• Source: Philips MSR discharge lamp: 1200 W, 91 lm/W : 5600K color temperature, 95 Ra color rendering: 750 hour life expectancy: Remote lamp on/off
• Control Interface: Control via Martin RS-485 and DMX-512 protocols: 8 and 16 bit pan/tilt tracking resolution: Channels/DMX mode: 16/1, 18/2, 18/3, 20/4: Address and mode selection via LED control panel: Readouts of lamp hours, other data
• Accessories/Options: Flight case: Floor stand
Short mounting bracket : Tempered mirror: Condenser lens: 35 degree wide angle lens:14 degree narrow angle lens
• Cooling: Fan cooling: Controllable high/low speed
• Measurements: Size with standard bracket (L x W x H):1330 x 520 x 670 mm (52.4 x 20.5 x 26.4 in)
• Weight: 61 kg (134 lb)
• Electrical, Magnetic Ballast Model: AC supply: 100/120/215/230/250 V, 50/60 Hz
• Power, current consumption: 1500 W, 7.4 A at 230 V
• Electrical, Electronic Ballast Model: AC supply: 100/120/218/230/250 V, 50 - 60 Hz
• 2 Year Limited Warranty
