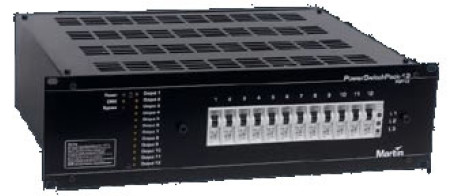

The PSP-12 gives you easy DMX control of interior and exterior light sources and many other devices. Completely DMX512 compliant, the PSP-12 is a smart and reliable way to control your power installation, saving you time.
TECHNICAL SPECIFICATIONS:• Mains inlet: 3x 115/ 230 V AC 7%, 3x 32 A (max.)
• Power consumption: 3 - 25 W
• Input Cable diameter: AWG 9-14
• Outputs: 12 channels, max. 10 A. circuit breakers, type C (Max. load 12 x 8 A total)
• Output Cable diameter: AWG 17-25
• Control: DMX512, 12 Channels
• DMX Control I/O: 5 Pin XLR.
• Address setting: 10 pole DIP switch (internally)
Indicators
• Power, DMX present, Bypass, 3 x Phase inputs.
• Test function: Manual Bypass Switch on rear of unit
• Mounting: 19. Rack mounting, 3 units
• Size (height x width x depth): 133 x 482 x 390 mm
• Weight: 11 kg.
