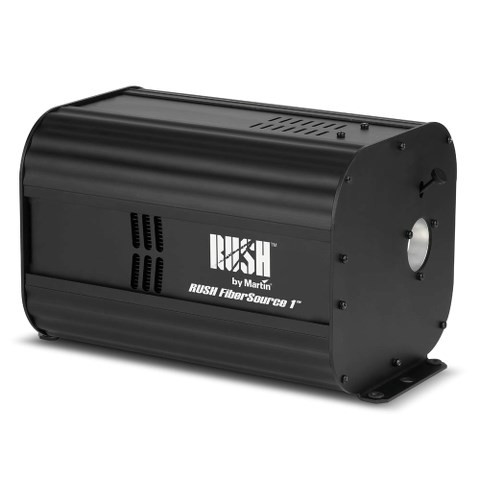

Martin Rush FiberSource 1 78W LED Fiber Optic Engine

Features
• 78 W LED fiber projector
• 9 interchangeable colors
• 0-100% electronic intensity control
• Twinkle effect wheel
• DMX or stand-alone control
• Up to 300 fiber cables (1 mm)

Physical
• Length: 305 mm (12.0 in.)
• Width: 210 mm (8.3 in.)
• Height: 200 mm (7.9 in.)
• Weight: 7.6 kg (16.8 lbs.)

Dynamic Effects
• Color wheel: 9 interchangeable filters + open, indexing, continuous rotation
• Twinkle effect: Continuous rotation, variable speed and direction
• Dimmer: 0 - 100% continuous dimming

Control and Programming
• Control options: DMX, standalone, master/slave
• DMX channels: 5
• Standalone programming: DIP switch
• Settings and DMX addressing: DIP switch
• DMX compliance: USITT DMX512/1990

Optics
• Light source: CREE 78 W LED
• Color temperature: 60007000 K
• CRI (color rendering index): >70
• Minimum LED lifetime: 35 000 hours (to >70% luminous output)*
*Figure obtained under test conditions

Construction
• Color: Black (RAL 9005)
• Housing: Steel and aluminum
• Protection rating: IP20

Installation
• Mounting points: Four rubber-mounting grommets, two 13 mm holes for rigging clamps
• Location: Indoor use only, must be fastened to surface or structure
• Minimum distance to combustible materials: 0.2 m (7.9 in.)
• Minimum clearance around fans and vents: 0.1 m (4.0 in.)
• Orientation: Any

Connections
• AC power in/out: Neutrik PowerCon
• DMX data in/out: 3-pin and 5-pin locking XLR

Electrical
• AC power: 100-240 V, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Typical Power and Current
• 110 V, 60 Hz: 0.8 A, 87 W, PF 0.986 230 V, 50 Hz: 0.5 A, 86 W, PF 0.909
Measurements made at nominal voltage. Allow for a deviation of +/- 10%.

Thermal
• Cooling: Forced air (regulated, low noise)
• Maximum ambient temperature (Ta max.): 40 C (104 F) Minimum ambient temperature (Ta min.): 5 C (41 F) Maximum surface temperature, steady state, at 40 C ambient: 50 C (122 F)

Approvals
EU Safety: EN 60598-2-1
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61547
US Safety: ANSI/UL 1598
US EMC: FCC Part 15 Class A
Canadian Safety: CSA C22.2 No. 250.0 Australia/NZ: C-TICK N4241

California Prop 65 - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
