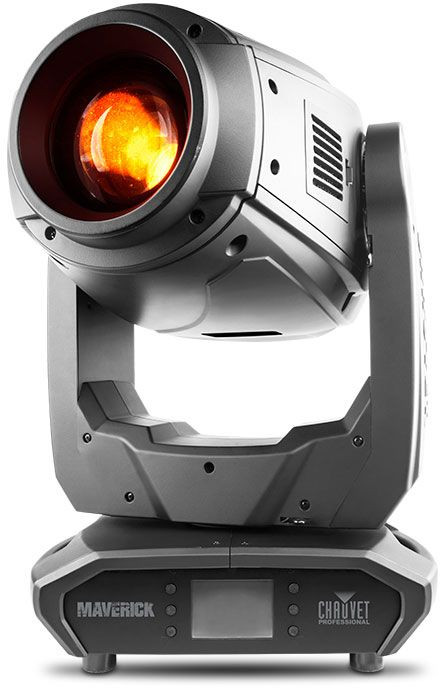

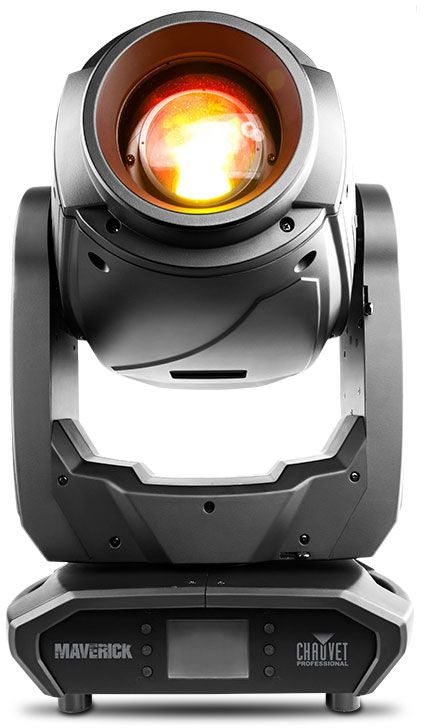

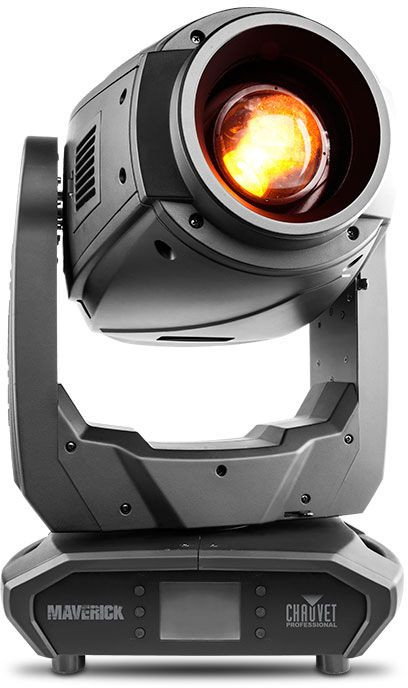

Chauvet Professional Maverick MK2 Spot Features • Fully featured 440W LED yoke spot fixture including CMY+CTO color mixing, a color wheel, zoom optics, and two rotating gobo wheels
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY+CTO color mixing system to create a wide pallet of colors
• Two rotating, indexing and interchangeable slot and lock gobo wheels
• DMX , WDMX, sACN, and Art-Net for full flexibility of control options
• Converts TCP/IP Protocol to DMX for shorter data cable runs
• 13 to 37 zoom angle for variable beam sizes
• Iris, 3-facet prism, and frost for beam control
• True 1 compatible power input
Chauvet Professional Maverick MK2 Spot Specs OPTICAL
• Light Source: 1 LED (CW) 440 W, (5.6 A), 6808 K, 50,000 hours life expectancy
• Color Temperature (at full): 6808 K
• CRI: 73
• Beam Angle: 12 to 35
• Field Angle: 13 to 37
• Zoom Angle: 13 to 37
• Illuminance (13): 18,079 lux @ 5 m
• Illuminance (37): 2,518 lux @ 5 m
• PWM Frequency: 1,100 Hz
DYNAMIC EFFECTS
• Pan and Tilt: 540/270
• Pan and Tilt Ranges: 540, 360, 180 pan/270, 180, 90 tilt
• Colors: 7 + white, split colors, continuous scroll at variable speeds
• Colors: CMY flags, CTO flag
• Gobos (1): 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size (1) : Gobo Wheel 1 (rotating): 32 mm (outside), 28 mm (image), 3.3 mm (max. thickness)
• Gobo Size (2) : Gobo Wheel 2 (rotating): 32 mm (outside), 28 mm (image), 3.3 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 3 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4
CONSTRUCTION / PHYSICAL
• Dimensions: 15.1 x 9.8 x 26.4 in (385 x 250 x 671 mm)
• Weight: 62.8 lb (28.5 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

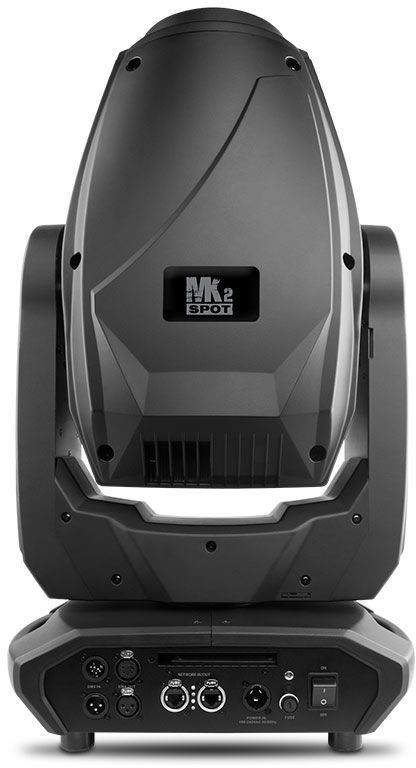

CONNECTIONS
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR, Neutrik
• Cable Length (power): 5 ft (1.5 m)
CONTROL
• Control Protocol: Art-Net, sACN, DMX, W-DMX
• DMX Channels: 24 or 32
• Art-Net Channels: 24 or 30
• Modes/Personalities: 2 personalities (24, 30)
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 740 W, 6.01 A @ 120 V, 60 Hz
• Power and Current: 723 W, 3.63 A @ 208 V, 60 Hz
• Power and Current: 700 W, 3.33 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
• CE, METIP Rating: IP20, dry location
WHAT'S INCLUDED
• Maverick MK2 Spot
• Seetronic Powerkon IP65 power cord
• Omega bracket with mounting hardware
